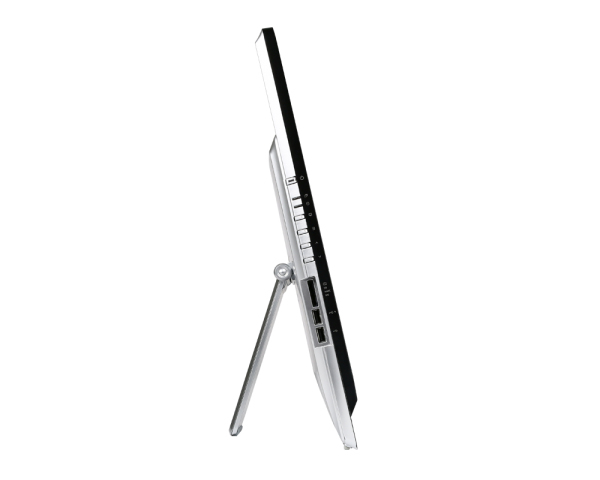

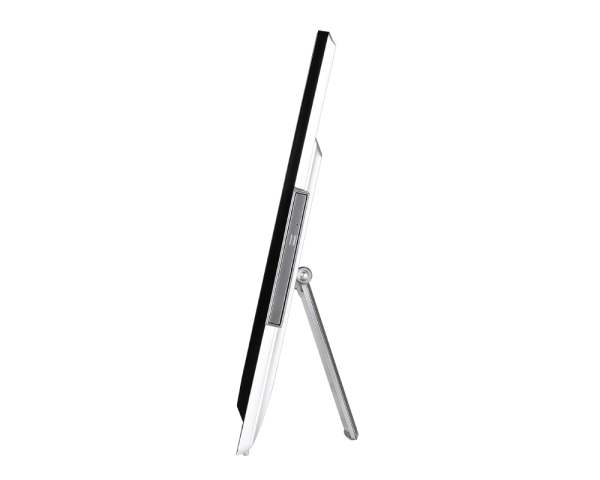

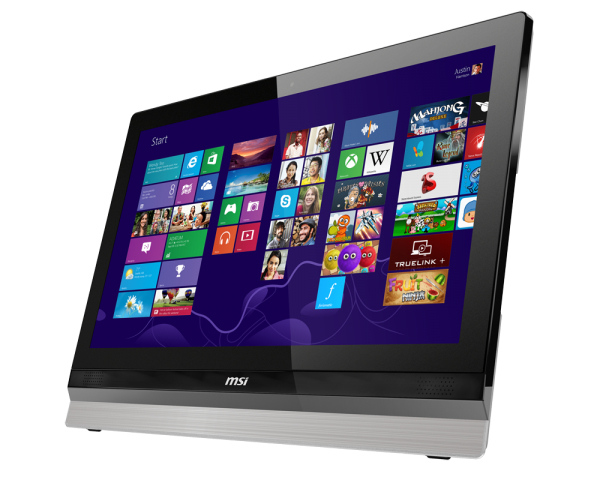

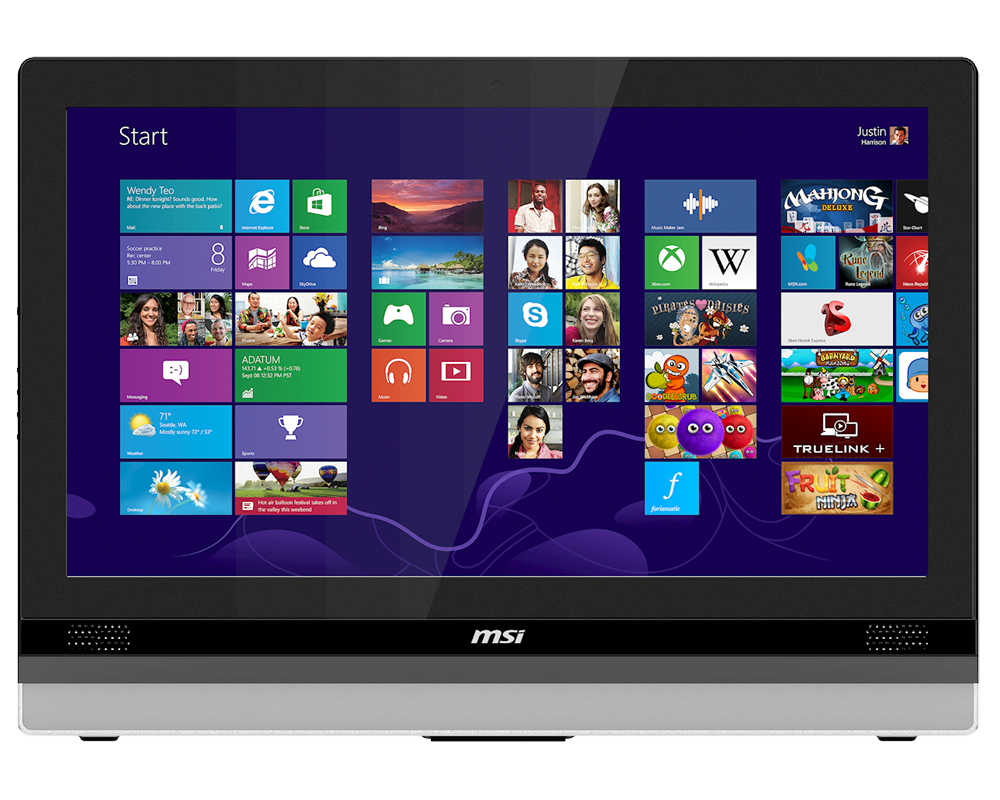

ADORA24G 0NC-016US
Model ADORA24G 0NC-016USEAN 578606921246
146 specifications
- Display59.9 cm (23.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce® GT 740M
Overview
- Display
- 59.9 cm (23.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce® GT 740M
- Brand
- MSI
- Category
- All-in-One PCs/Workstations
- Model
- ADORA24G 0NC-016US
- Part number
- ADORA24G 0NC-016US
- EAN / UPC
- 578606921246, 824142008775
- Also known as
- MSI Wind Top ADORA24G 0NC-016US All-in-One PC/workstation Intel® Core™ i5 i5-3230M 59.9 cm (23.6") 1920 x 1080 pixels Touchscreen 8 GB DDR3-SDRAM 1 TB HDD NVIDI
Specifications
146 specifications in 17 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 59.9 cm (23.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| HD type | Full HD |
| Full HD | Yes |
| LED backlight | Yes |
| Touch technology | Multi-touch |
| Native aspect ratio | 16:9 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 3rd gen Intel® Core™ i5 |
| Processor model | i5-3230M |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.6 GHz |
| Processor cache | 3 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1023 |
| System bus rate | 5 GT/s |
| Thermal Design Power (TDP) | 35 W |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 26 |
| FSB Parity | No |
| Integrated 4G WiMAX | Yes |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Processor code | SR0WX |
| Processor codename | Ivy Bridge |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i5-3200 Mobile series |
| Stepping | L1 |
| Tjunction | 105 °C |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM, DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 8 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD speed | 5400 RPM |
| HDD interface | SATA III |
| Optical drive type | Blu-Ray DVD Combo |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® GeForce® GT 740M |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR3 |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 4000 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card ID | 0x166 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Built-in microphone | Yes |
| Audio system | Sound Blaster Cinema |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Total megapixels | 2 MP |
| Camera resolution | 1920 x 1080 pixels |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |

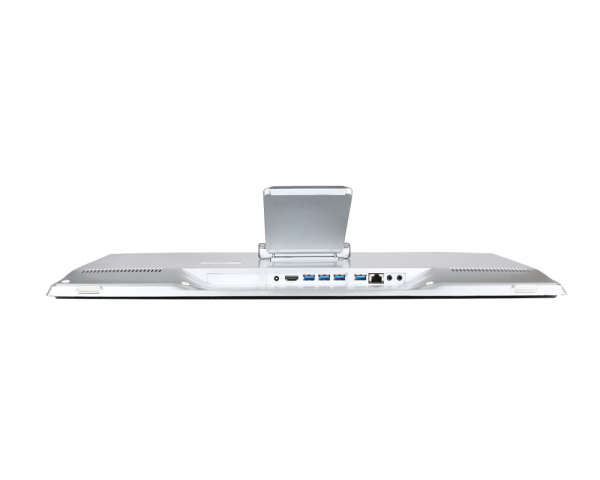

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| Mini PCI Express slots | 2 |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Wall mountable | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Motherboard chipset | Intel HM77 Express |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 72056 |
| Processor package size | 31 x 24 (BGA1023) |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 583.3 mm |
| Depth (with stand) | 424.6 mm |
| Height (with stand) | 33 mm |
| Weight (with stand) | 7.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
| AC adapter included | Yes |
Other features
| Specification | Value |
|---|---|
| Autonomy mode | No |
| Storage drive interface | Serial ATA III |
