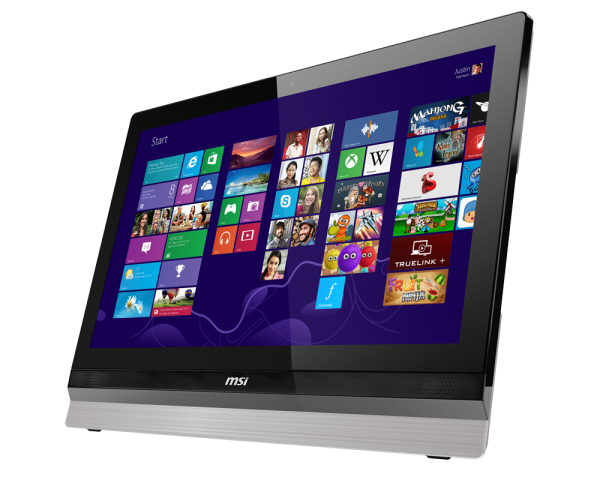

MSI Adora24 0M-005EU

Model Adora24 0M-005EUPart no. ADORA24 0M-005EUEAN 4719072304065

144 specifications

Display59.9 cm (23.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 59.9 cm (23.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1 TB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: Adora24 0M-005EU
Part number: ADORA24 0M-005EU
EAN / UPC: 4719072304065
Also known as: MSI Wind Top Adora24 0M-005EU Intel® Core™ i5 i5-3230M 59.9 cm (23.6") 1920 x 1080 pixels Touchscreen All-in-One PC 8 GB DDR3-SDRAM 1 TB HDD Windows 8 Wi-Fi 4 (

Specifications

144 specifications in 17 groups

Display

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3230M
Processor cores	2
Processor threads	4
Processor boost frequency	3.2 GHz
Processor frequency	2.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1023
System bus rate	5 GT/s
Thermal Design Power (TDP)	35 W
Bus type	DMI
CPU multiplier (bus/core ratio)	26
FSB Parity	No
Integrated 4G WiMAX	Yes
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR0WX
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3200 Mobile series
Stepping	L1
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory layout (slots x size)	2 x 4 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	5400 RPM
HDD interface	SATA III
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MMC, SD, xD

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x166

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	10 W
Built-in microphone	Yes
Audio system	Sound Blaster Cinema

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP
Camera resolution	1920 x 1080 pixels

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Mini PCI Express slots	2

Design

Specification	Value
Product colour	Black, Silver

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H77 Express

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	72056
Processor package size	31 x 24 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	120 W

Weight & dimensions

Specification	Value
Width (with stand)	583.3 mm
Depth (with stand)	424.6 mm
Height (with stand)	33 mm
Weight (with stand)	7.5 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
AC adapter included	Yes
Remote control included	Yes

Other features

Specification	Value
Autonomy mode	No
Storage drive interface	Serial ATA III
TV tuner integrated	Yes
