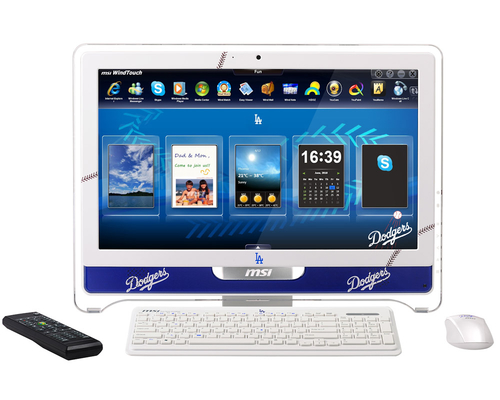

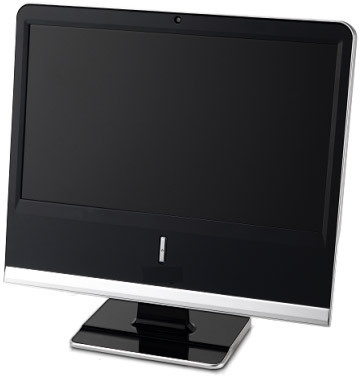

MSI A912-004BUS All-in-One PC/workstation Intel Atom® D525

47 cm (18.5") 1366 x 768 pixels Black

Model A912-004BUSEAN 816909080612

76 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: A912-004BUS
Part number: A912-004BUS
EAN / UPC: 816909080612, 8169090806120
Also known as: MSI A912-004BUS All-in-One PC/workstation Intel Atom® D525 47 cm (18.5") 1366 x 768 pixels Black

76 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor cores	2
Processor threads	4
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
Thermal Design Power (TDP)	13 W
Bus type	DMI
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Specification	Value
Maximum internal memory	4 GB
Memory slots type	SO-DIMM

Specification	Value
Number of storage drives supported	1
HDD size	2.5"
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD

Specification	Value
Audio system	Realtek ALC888S

Specification	Value
Built-in camera	Yes

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes

Specification	Value
Product colour	Black

Specification	Value
Motherboard chipset	Intel NM10

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Demand Based Switching	No
Intel Enhanced Halt State	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	49490
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Specification	Value
Weight (with stand)	4.89 g

Specification	Value
Graphics card family	Intel
Chassis type	All-in-One
Compatible operating systems	Windows 7
Dimensions (WxDxH)	450 x 35 x 420 mm
Graphics card	GMA 3150
Maximum graphics card memory	512 MB
Megapixel (approx.)	1.3 MP
Networking features	Gigabit Ethernet, 802.11 b/g/n
Number of processors installed	1
Power supply	65 W
Storage drive interface	Serial ATA

Specification	Value
Graphics card memory type	GDDR3
