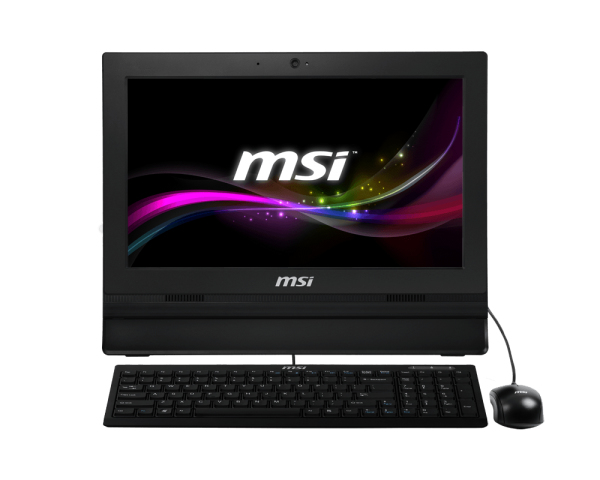

MSI A61311-006 X11

Model A61311-006 X11Part no. 9S6-A61311-006 X11

117 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: A61311-006 X11
Part number: 9S6-A61311-006 X11
Also known as: MSI Wind Top Professional A61311-006 X11 Intel® Celeron® 847 39.6 cm (15.6") 1366 x 768 pixels Touchscreen 4 GB DDR3-SDRAM 320 GB HDD Windows 8.1 Black

117 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	847
Processor cores	2
Processor threads	2
Processor frequency	1.1 GHz
Processor cache	2 MB
Processor cache type	L3
Processor socket	BGA 1023
Thermal Design Power (TDP)	17 W
Bus type	DMI
CPU multiplier (bus/core ratio)	11
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	2.0
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor 800 Series for Mobile
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
Number of storage drives installed	1
Number of storage drives supported	1
Number of HDDs installed	1
HDD capacity	320 GB

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	800 MHz

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	1.5 W

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes
Mini PCI Express slots	1

Specification	Value
Product colour	Black
Wall mountable	Yes

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	56056
Processor package size	31.0 x 24.0 (BGA1023)
Supported instruction sets	SSE4.x
Thermal Monitoring Technologies	Yes

Specification	Value
AC adapter power	65 W

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Specification	Value
Detachable display	No
