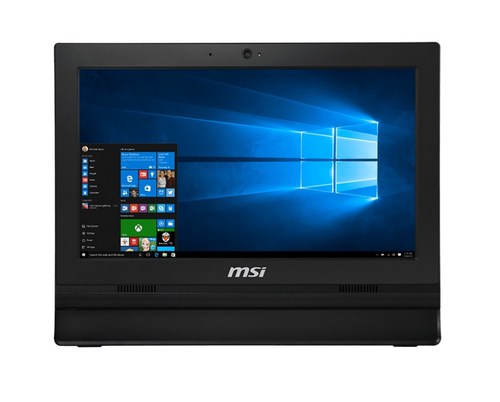

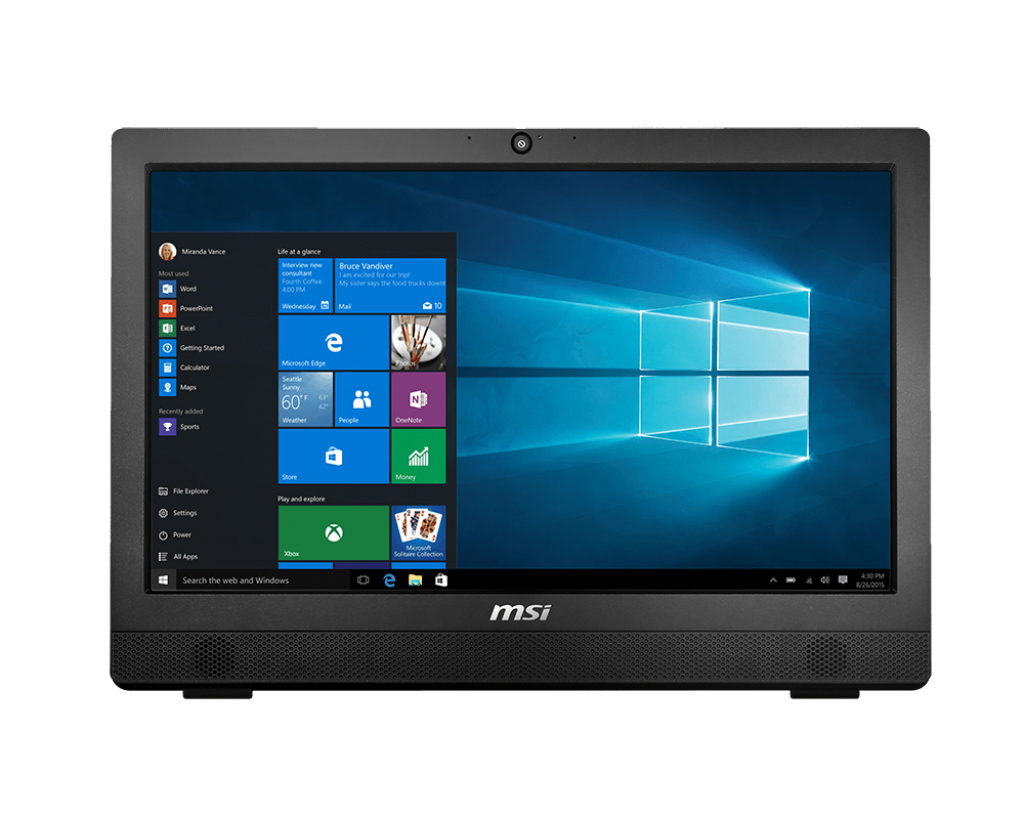

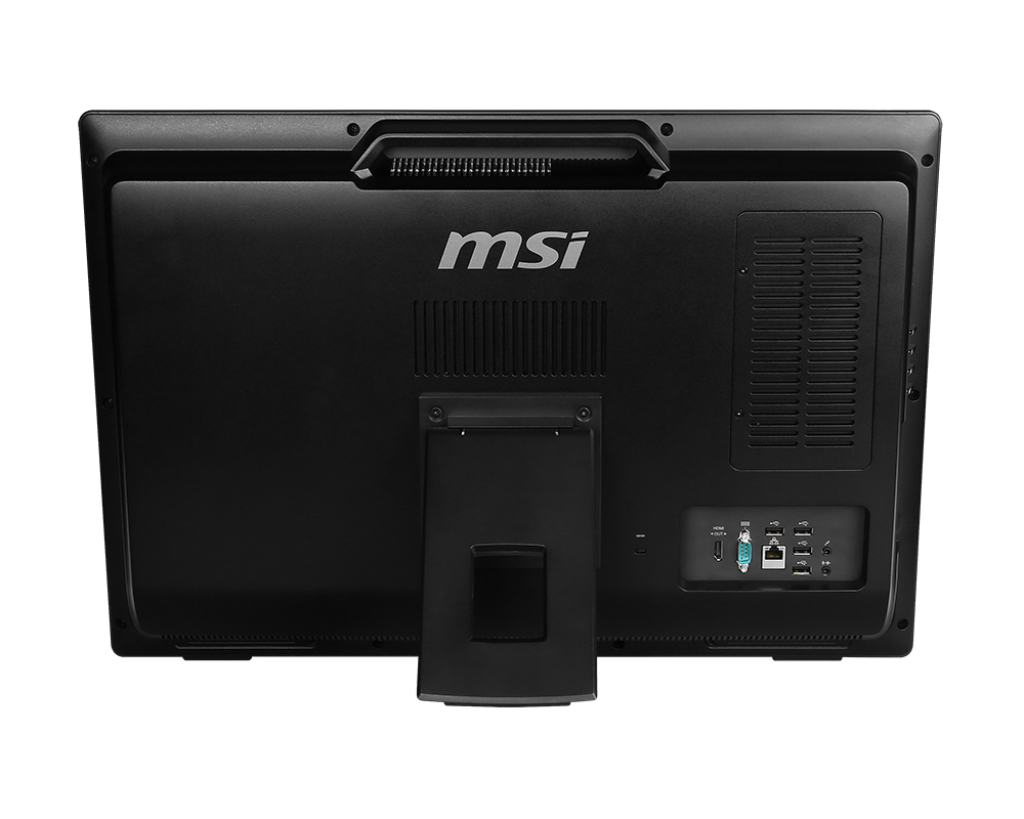

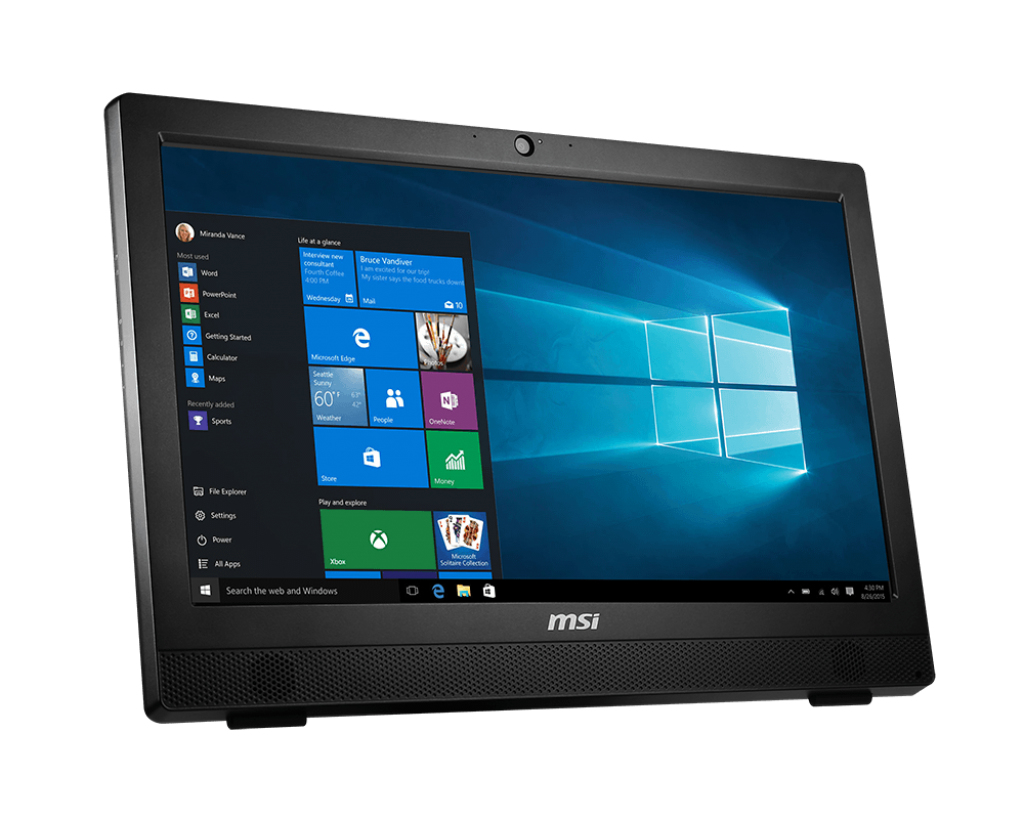

MSI Pro 4BW-012XEU Intel® Pentium® N3710

59.9 cm (23.6") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3L-SDRAM 1 TB HDD FreeDOS Wi-Fi 4 (802.11n) Black

Model 4BW-012XEUPart no. PRO 24T 4BW-012XEU

158 specifications

Display59.9 cm (23.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Pentium®
Memory4 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 59.9 cm (23.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Pentium®
Memory: 4 GB
Storage: 1 TB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: 4BW-012XEU
Part number: PRO 24T 4BW-012XEU
Also known as: MSI Pro 4BW-012XEU Intel® Pentium® N3710 59.9 cm (23.6") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3L-SDRAM 1 TB HDD FreeDOS Wi-Fi 4 (802.11n) Black

Specifications

158 specifications in 19 groups

Display

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Display surface	Gloss
Display number of colours	16.78 million colours
Pixel pitch	0.2715 x 0.2715 mm
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	N3710
Processor cores	4
Processor threads	4
Processor boost frequency	2.56 GHz
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 1170
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	6 W
Integrated 4G WiMAX	No
Maximum number of PCI Express lanes	4
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	2.0
Processor code	SSSR2KL
Processor codename	Braswell
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel® Pentium N3000 Series for Mobile
Scenario Design Power (SDP)	4 W
Stepping	D1
Tjunction	90 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1600 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Maximum internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
HDD capacity	1 TB
HDD speed	7200 RPM
HDD interface	SATA III
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MMC, Memory Stick (MS), SD

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 405
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	400 MHz
On-board graphics card burst frequency	700 MHz
Number of execution units	16

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	6 W
Built-in microphone	Yes
Audio chip	Realtek ALC887

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP
Camera resolution	1280 x 720 pixels

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
Mini PCI Express slots	1
Serial ports quantity	1
Total number of SATA connectors	2
Number of SATA III connectors	2

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	FreeDOS

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	91830
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	Yes
UART	Yes

Power

Specification	Value
AC adapter power	65 W

Weight & dimensions

Specification	Value
Width (with stand)	581.5 mm
Depth (with stand)	222.1 mm
Height (with stand)	401.9 mm
Weight (with stand)	11.4 kg
Package weight	12.6 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%

Certificates

Specification	Value
Certification	UL/CB EMC:CE/FCC/C-TICK/VCCI/BSMI

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Other features

Specification	Value
Autonomy mode	No
Detachable display	No
