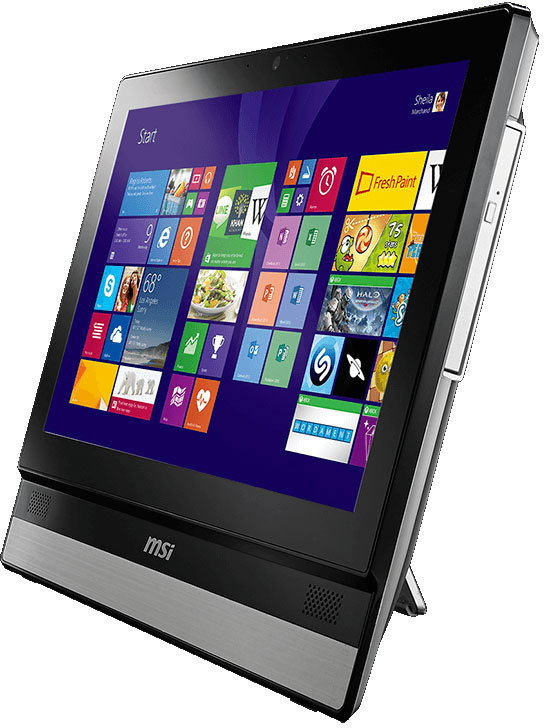

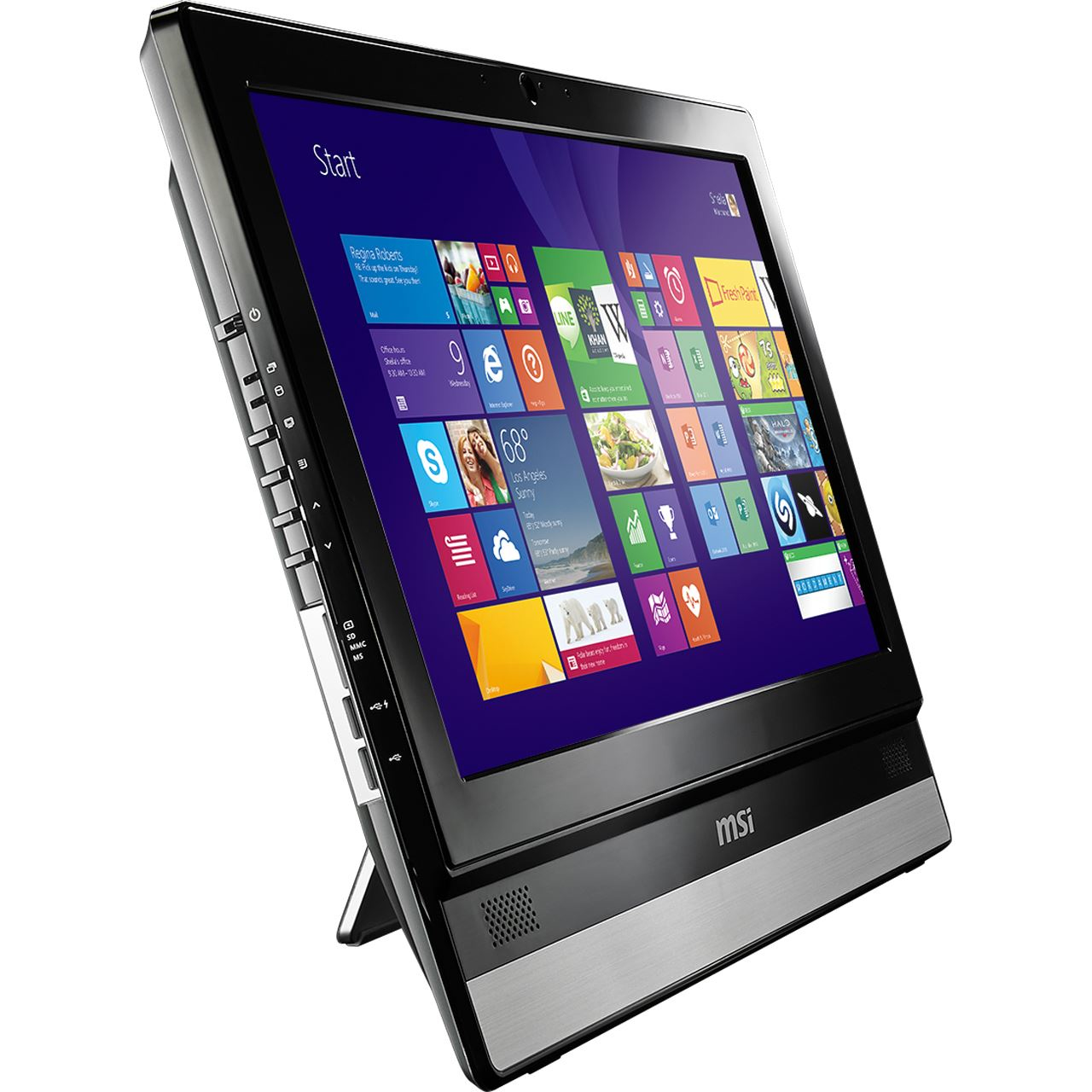

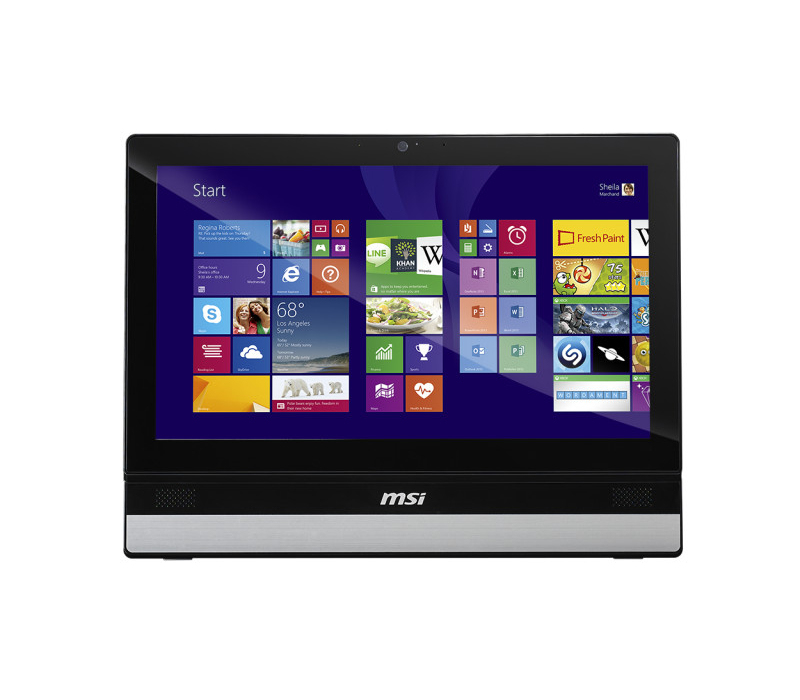

Adora 20 2M-044EU Intel® Pentium® 3560M

49.5 cm (19.5") 1600 x 900 pixels Touchscreen All-in-One PC 4 GB LPDDR3-SDRAM 1 TB HDD+Flash Windows 10 Home Wi-Fi 4

Model 2M-044EUPart no. ADORA20 2M-044EUEAN 4719072439545

117 specifications

Overview

Brand: MSI
Category: All-in-One PCs/Workstations
Model: 2M-044EU
Part number: ADORA20 2M-044EU
EAN / UPC: 4719072439545
Also known as: MSI Adora 20 2M-044EU Intel® Pentium® 3560M 49.5 cm (19.5") 1600 x 900 pixels Touchscreen All-in-One PC 4 GB LPDDR3-SDRAM 1 TB HDD+Flash Windows 10 Home Wi-Fi 4

117 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	3560M
Processor cores	2
Processor threads	2
Processor frequency	2.4 GHz
Processor cache	2 MB
Processor cache type	L3
Processor socket	PGA946
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	37 W
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express configurations	2x8, 1x8+2x4
PCI Express slots version	2.0
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Pentium 3000 series for Mobile
Stepping	C0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Specification	Value
Built-in camera	Yes

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
Headphone outputs	1
Microphone in	Yes

Specification	Value
Product colour	Black, Grey

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® HM86

Specification	Value
Operating system installed	Windows 10 Home

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	81013
Processor package size	37.5 x 37.5 x 4.7 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
