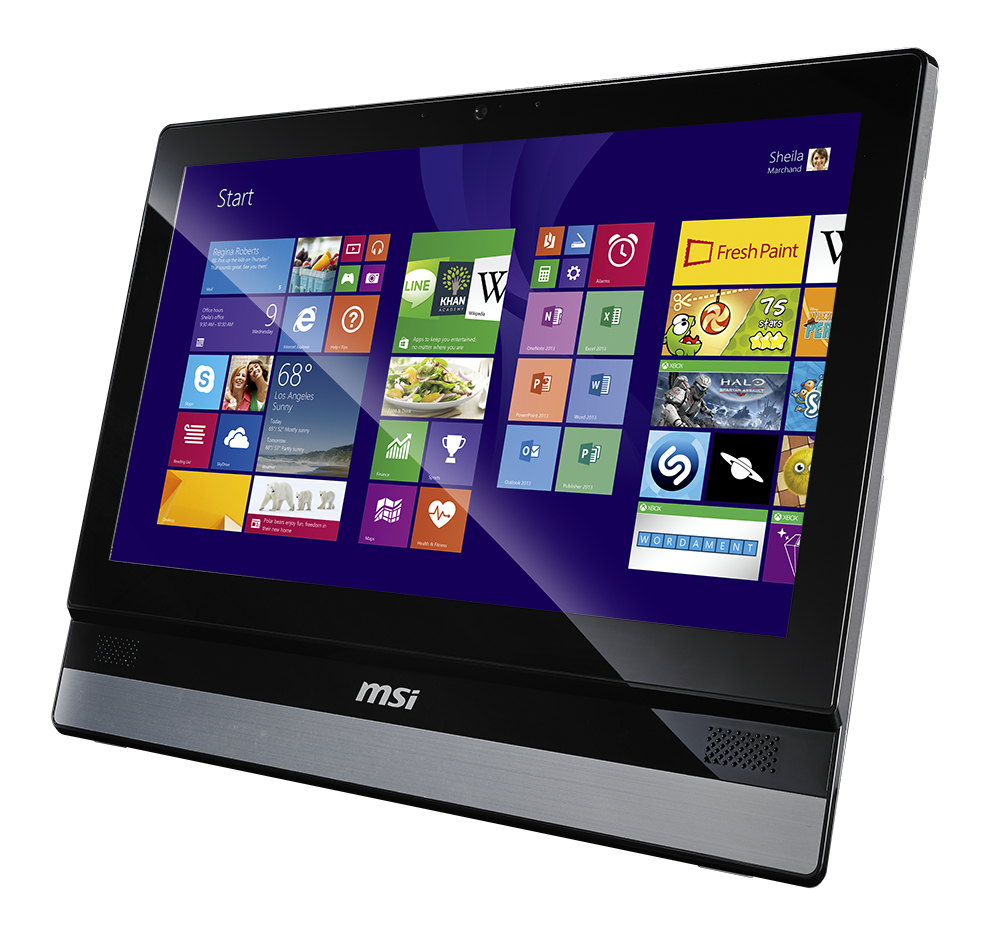

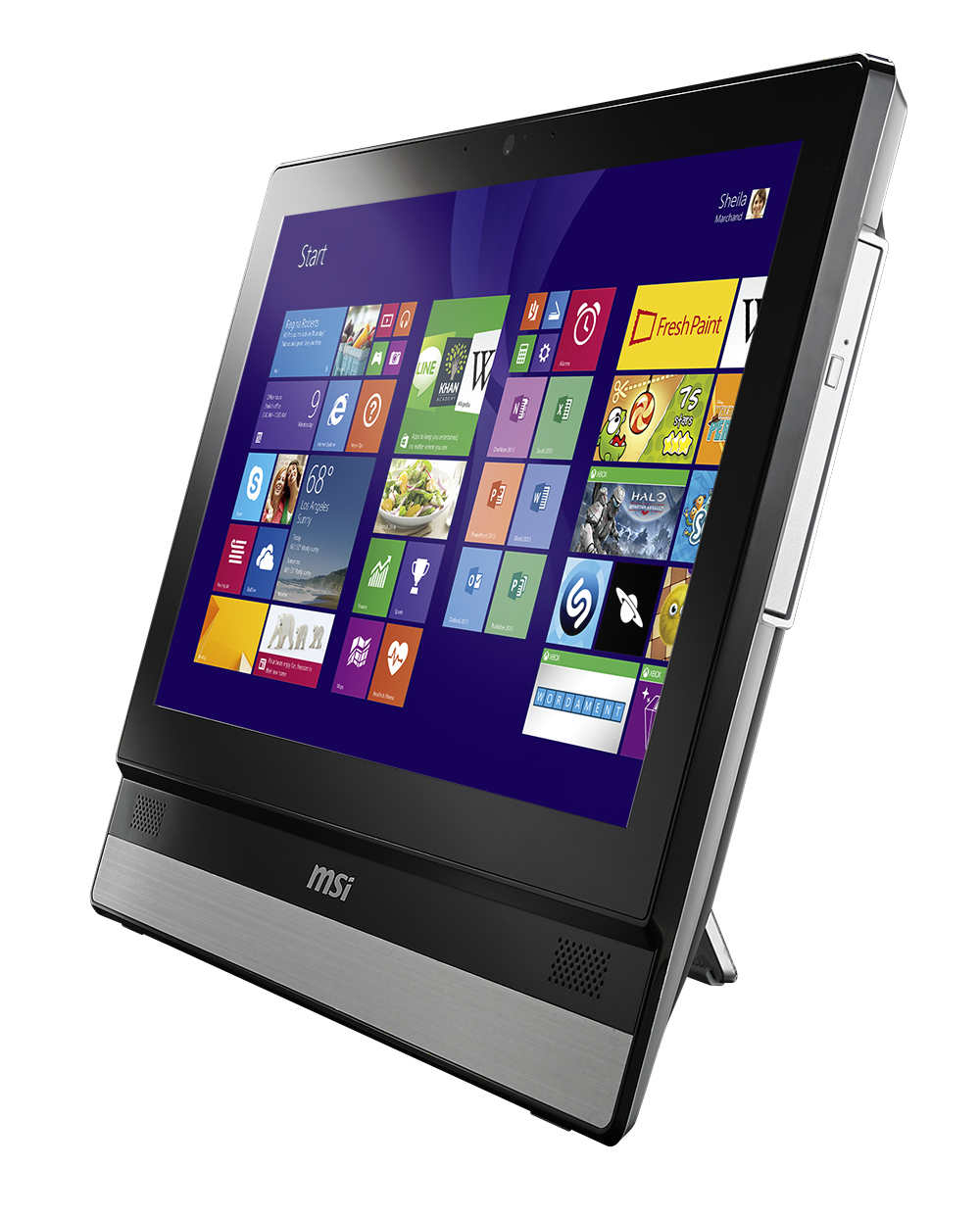

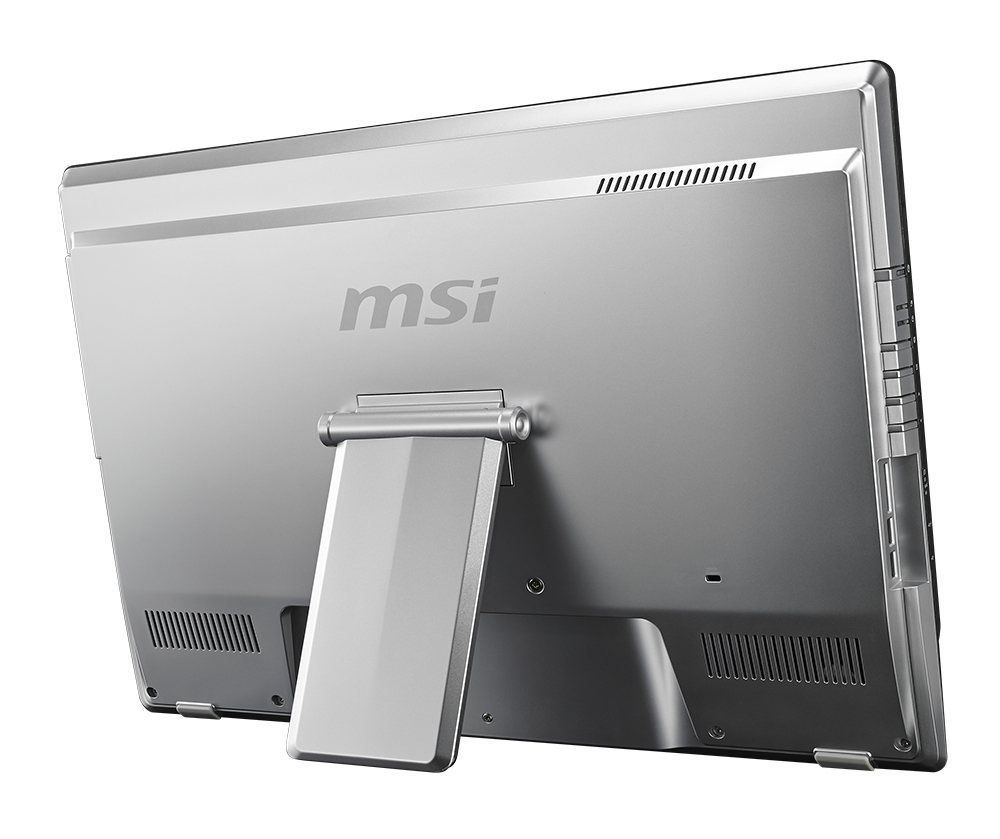

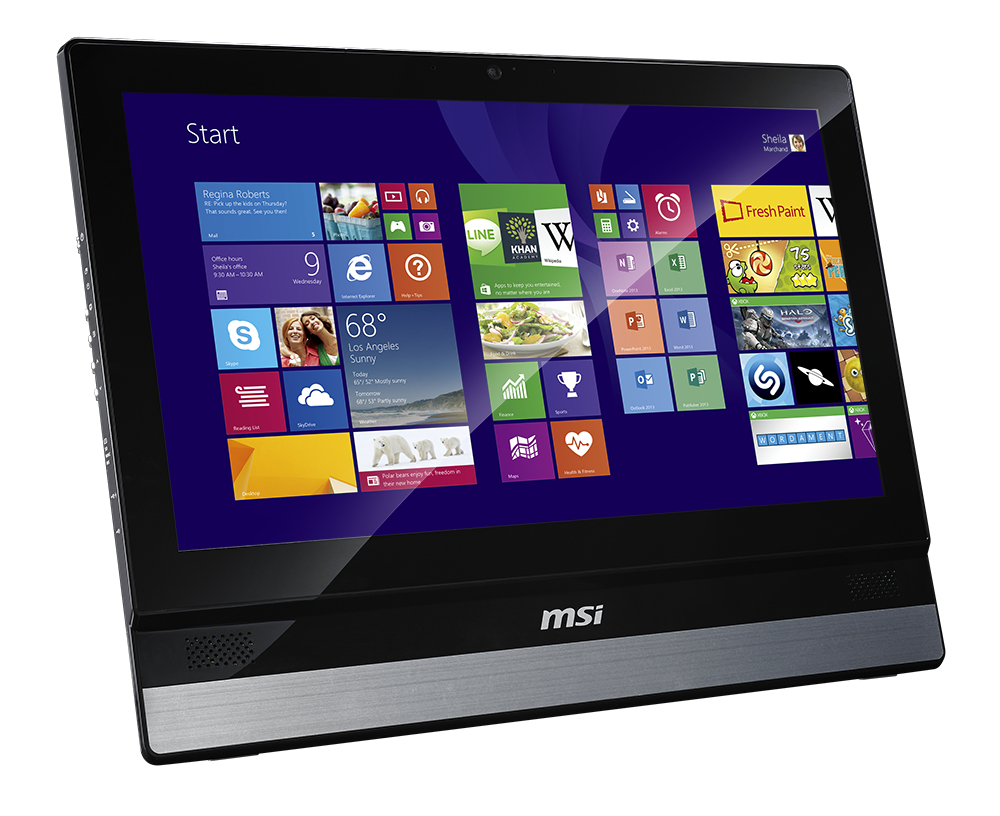

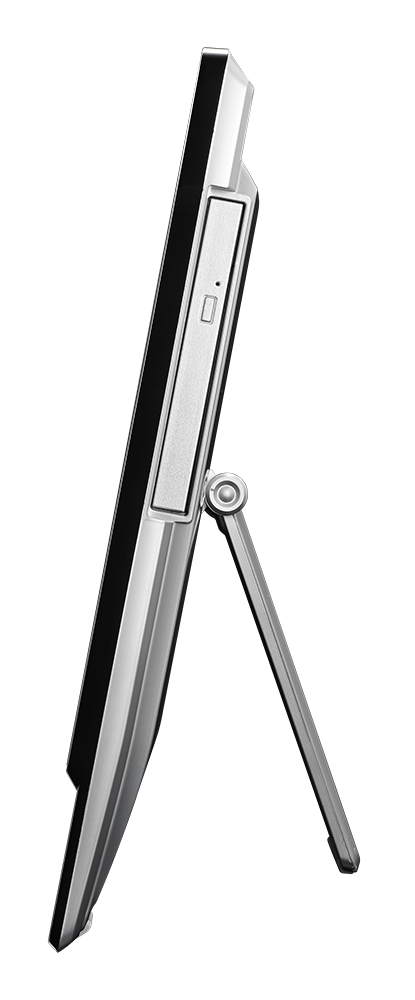

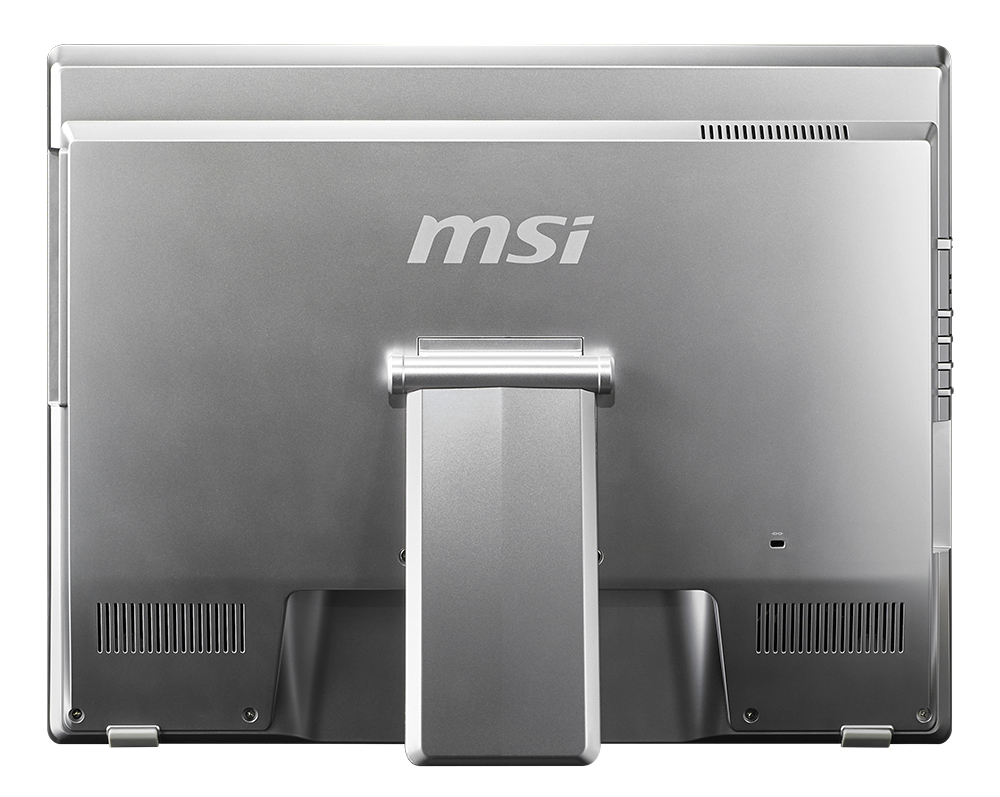

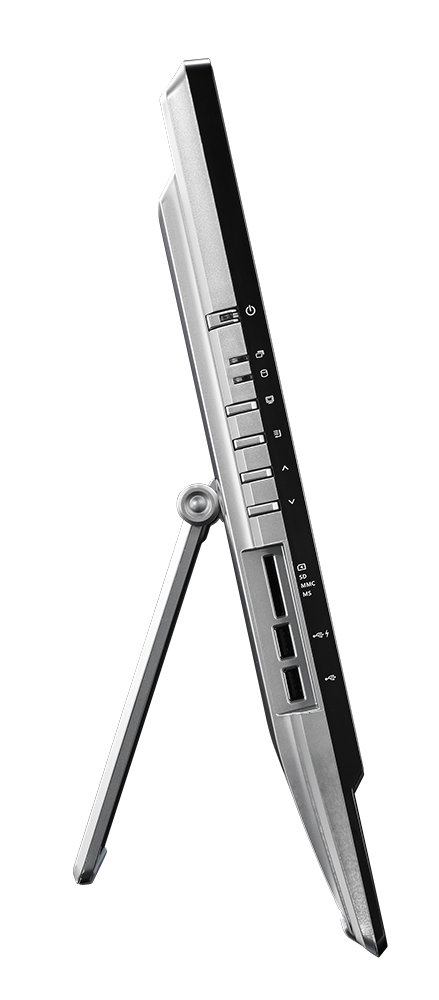

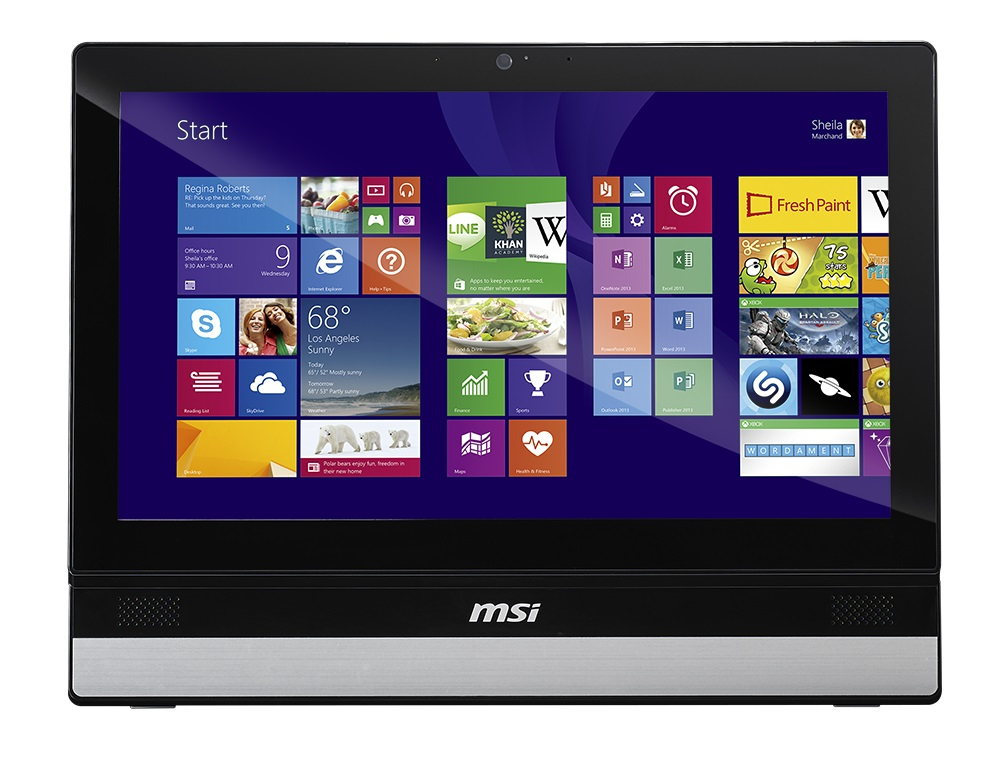

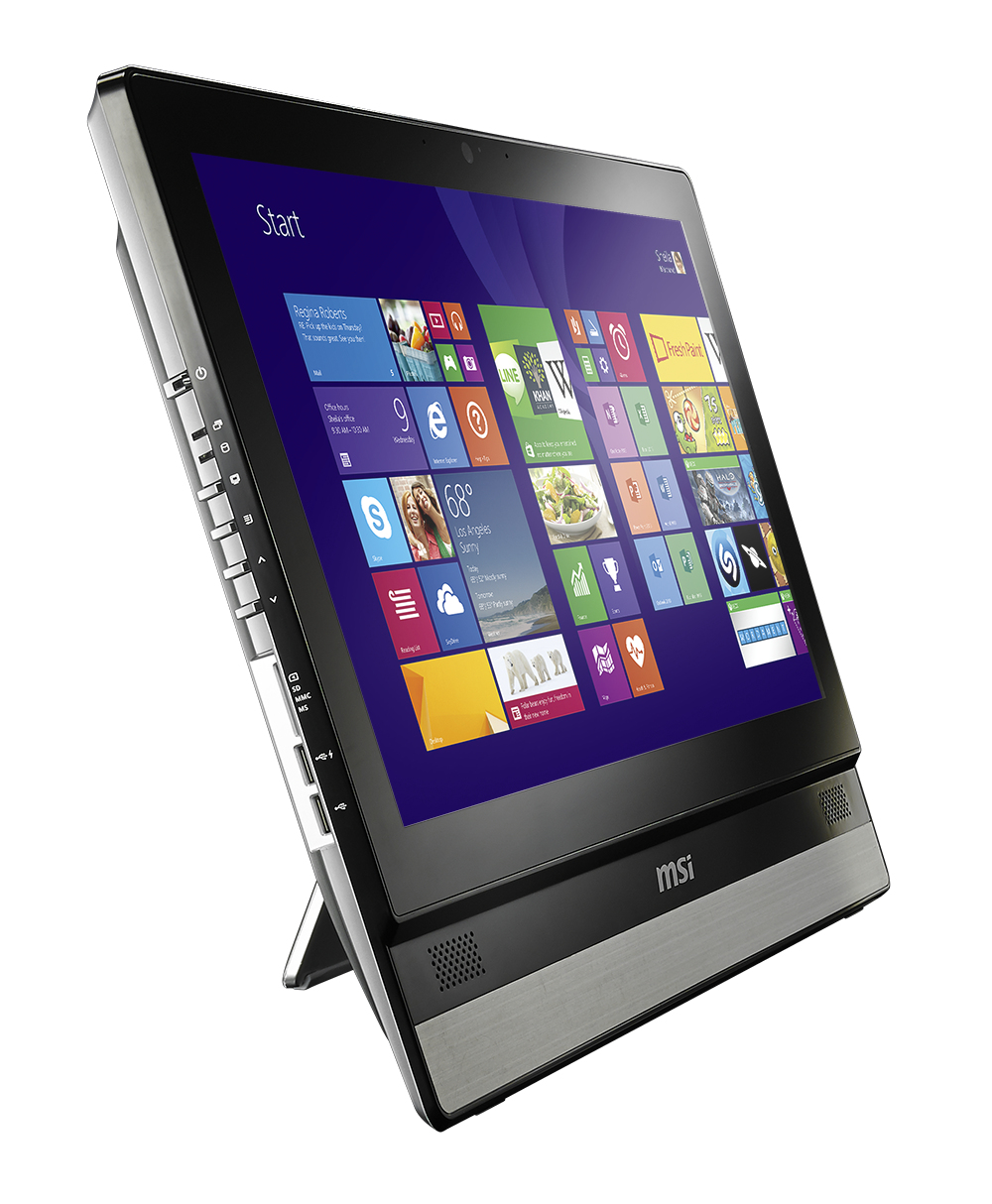

Adora 20 2M-005EU Intel® Core™ i3 i3-4000M

49.5 cm (19.5") 1600 x 900 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Wi-Fi 4 (802.11n

Model 2M-005EUPart no. ADORA20 2M-005EUEAN 4719072331559

161 specifications

Display49.5 cm (19.5")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 49.5 cm (19.5")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 1 TB
Graphics: Not available

Brand: MSI
Category: All-in-One PCs/Workstations
Model: 2M-005EU
Part number: ADORA20 2M-005EU
EAN / UPC: 4719072331559
Also known as: MSI Adora 20 2M-005EU Intel® Core™ i3 i3-4000M 49.5 cm (19.5") 1600 x 900 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Wi-Fi 4 (802.11n

Specifications

161 specifications in 18 groups

Display

Specification	Value
Display diagonal	49.5 cm (19.5")
Display resolution	1600 x 900 pixels
Touchscreen	Yes
HD type	HD+
Full HD	No
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4000M
Processor cores	2
Processor threads	4
Processor frequency	2.4 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	PGA946
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	37 W
Bus type	DMI
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Processor code	SR1HC
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel® Core™ i3-4000 Mobile Series
Stepping	C0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA III
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	2 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x416

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	6 W
Built-in microphone	Yes
Audio system	Sound Blaster Cinema

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	1 MP
Camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
Disc types supported	CD-R, CD-RW, DVD+R, DVD+RW, DVD-R
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Design

Specification	Value
Product colour	Black, Silver
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® HM86
Placement supported	Horizontal

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit
Trial software	Norton Internet Security 2013 (60-day)
Bundled software	Office 2010 (Starter), QuickSetting, Smart Media Link, WhiteBoard, PowerDVD, THX, Fresh Paint

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75104
Processor package size	37.5 x 37.5 x 4.7 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	495 mm
Height (with stand)	376.5 mm
Weight (with stand)	6.43 kg
Depth (without stand)	32.3 mm
Package width	594 mm
Package depth	170 mm
Package height	506 mm
Package weight	7.31 kg
