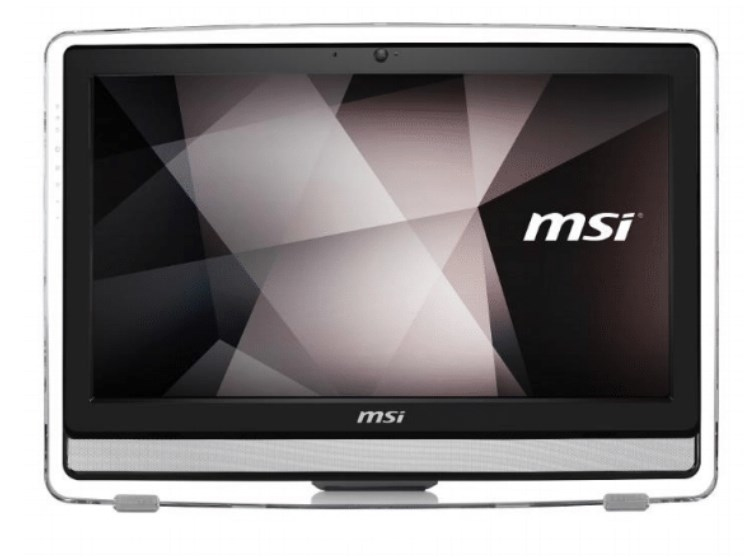

MSI 22ET 7M-221XEU
MSI

22ET 7M-221XEU

Model 22ET 7M-221XEUPart no. 9S6-AC1711-221EAN 4719072627263

148 specifications
  • Display54.6 cm (21.5")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i5
  • Memory4 GB
  • Storage1 TB
  • GraphicsNot available
See all specifications

Overview

Display
54.6 cm (21.5")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i5
Memory
4 GB
Storage
1 TB
Graphics
Not available
Brand
MSI
Model
22ET 7M-221XEU
Part number
9S6-AC1711-221
EAN / UPC
4719072627263
Also known as
MSI Pro 22ET 7M-221XEU Intel® Core™ i5 i5-7400 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR4-SDRAM 1 TB HDD FreeDOS Wi-Fi 4 (802.11n) B

Specifications

148 specifications in 19 groups

Display

Display diagonal54.6 cm (21.5")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
LED backlightYes
Touch technologyMulti-touch
Display brightness250 cd/m²
Response time5 ms
Display number of colours16.78 million colours
Pixel pitch0.248 x 0.248 mm
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation7th gen Intel® Core™ i5
Processor modeli5-7400
Processor cores4
Processor threads4
Processor boost frequency3.5 GHz
Processor frequency3 GHz
Processor cache6 MB
Processor cache typeSmart Cache
Processor socketLGA 1151 (Socket H4)
System bus rate8 GT/s
Thermal Design Power (TDP)65 W
Bus typeDMI3
Maximum number of PCI Express lanes16
Number of QPI links0
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
Processor codeSR32W
Processor codenameKaby Lake
Processor lithography14 nm
Processor operating modes64-bit
Processor seriesIntel Core i5-7400 Desktop Series
SteppingB0
Tjunction100 °C
Conflict-Free processorYes
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor1333,1600,2133,2400 MHz
Memory voltage supported by processor1.35 V

Memory

Internal memory4 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory32 GB
Memory slots2
Memory slots typeSO-DIMM

Storage

Total storage capacity1 TB
Storage mediaHDD
HDD speed7200 RPM
HDD size3.5"
HDD interfaceSATA III
Optical drive typeDVD Super Multi
Card reader integratedYes
Compatible memory cardsMMC, Memory Stick (MS), SD

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1000 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID5912
On-board graphics card OpenGL version4.4

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power10 W
Built-in microphoneYes
Audio chipRealtek ALC887

Camera

Built-in cameraYes
Total megapixels1 MP

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.2

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
Thunderbolt ports quantity0
HDMI ports quantity2
VGA (D-Sub) ports quantity1
Headphone outputs1
Microphone inYes
DC-in jackYes

Design

Product colourBlack, White
Cable lock slotYes
Cable lock slot typeKensington
Panel mounting interface100 x 100 mm
VESA mountingYes
Wall mountableYes

Performance

Product typeAll-in-One PC

Software

Operating system installedFreeDOS

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID97147
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015C

Power

AC adapter power120 W

Pen

Pen includedNo

Weight & dimensions

Width (with stand)561.7 mm
Depth (with stand)368.8 mm
Height (with stand)50.9 mm
Weight (with stand)9.97 kg

Operational conditions

Operating temperature (T-T)10 - 35 °C
Storage temperature (T-T)-20 - 60 °C

Certificates

CertificationUL/CB EMC:CE/FCC/C-TICK/VCCI/BSM

Other features

3DNo
Autonomy modeNo
Detachable displayNo
