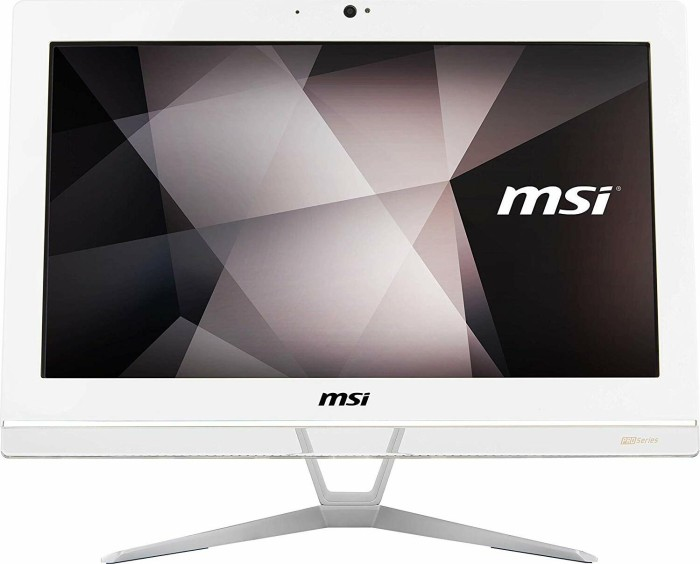

MSI 20EXTS 8GL-077DE
MSI

20EXTS 8GL-077DE

Model 20EXTS 8GL-077DEPart no. 00AAC212-077EAN 4719072706692

117 specifications
  • Display49.5 cm (19.5")
  • Resolution1600 x 900 pixels
  • ProcessorIntel® Celeron®
  • Memory8 GB
  • Storage256 GB
  • GraphicsNot available
See all specifications

Overview

Display
49.5 cm (19.5")
Resolution
1600 x 900 pixels
Processor
Intel® Celeron®
Memory
8 GB
Storage
256 GB
Graphics
Not available
Brand
MSI
Model
20EXTS 8GL-077DE
Part number
00AAC212-077
EAN / UPC
4719072706692
Also known as
MSI Pro 20EXTS 8GL-077DE Intel® Celeron® N4000 49.5 cm (19.5") 1600 x 900 pixels Touchscreen All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 5 (80

Specifications

117 specifications in 15 groups

Display

Display diagonal49.5 cm (19.5")
Display resolution1600 x 900 pixels
TouchscreenYes
HD typeHD+
Native aspect ratio16:9

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelN4000
Processor cores2
Processor threads2
Processor boost frequency2.6 GHz
Processor frequency1.1 GHz
Processor cache4 MB
Processor socketBGA 1090
Thermal Design Power (TDP)6 W
Maximum number of PCI Express lanes6
PCI Express configurations1x2, 1x2+2x1, 1x4, 2x1, 4x1
PCI Express slots version2.0
Processor codenameGemini Lake
Processor lithography14 nm
Processor operating modes64-bit
Scenario Design Power (SDP)4.8 W
Tjunction105 °C
Conflict-Free processorYes
Maximum internal memory supported by processor8 GB
Memory types supported by processorDDR4-SDRAM, LPDDR4-SDRAM
Memory clock speeds supported by processor2400 MHz

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory8 GB
Memory slots2
Memory slots typeSO-DIMM
Memory clock speed2400 MHz
Memory form factorDIMM/SO-DIMM

Storage

Total storage capacity256 GB
Storage mediaSSD
Total SSDs capacity256 GB
Number of SSDs installed1
SSD capacity256 GB
Optical drive typeDVD Super Multi DL
Card reader integratedYes
Compatible memory cardsMMC, Memory Stick (MS), SD

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board GPU manufacturerIntel
On-board graphics cardYes
On-board graphics card familyIntel® UHD Graphics
On-board graphics card modelIntel® UHD Graphics 600
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency200 MHz
On-board graphics card burst frequency650 MHz
On-board graphics card dynamic frequency (max)650 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x3185
Number of execution units12

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power10 W
Built-in microphoneYes

Camera

Built-in cameraYes
Total megapixels1 MP

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt ports quantity0
HDMI ports quantity1
Headphone outputs1
Microphone inYes

Design

Product colourWhite
Panel mounting interface100 x 100 mm
VESA mountingYes
Wall mountableYes

Performance

Product typeAll-in-One PC

Software

Operating system installedWindows 10 Pro

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Smart Response Technology version0.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Processor ARK ID128988
Processor package size25 x 24 mm
Thermal Monitoring TechnologiesYes
UARTYes

Power

AC adapter power65 W

Weight & dimensions

Width (with stand)490.2 mm
Depth (with stand)209.5 mm
Height (with stand)395 mm
Weight (with stand)6.96 kg
Package weight9.66 kg
