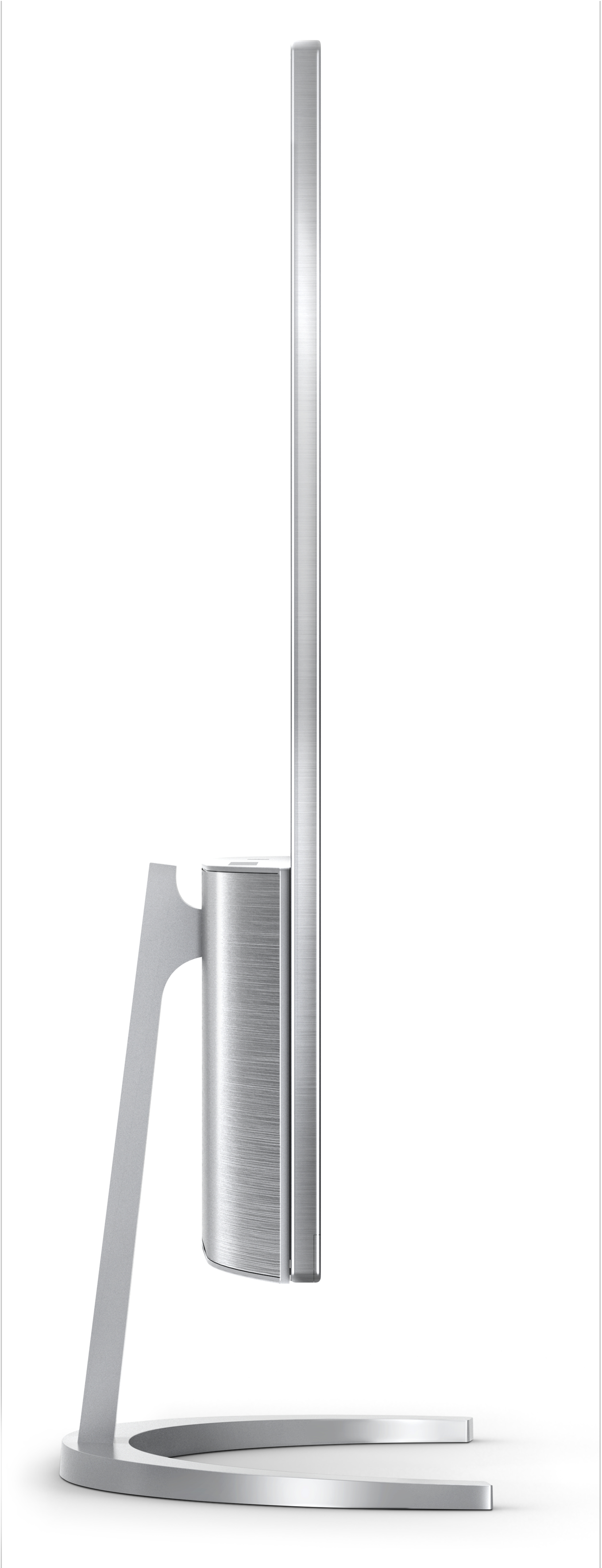

MEDION E23201S-C-128F4 Intel® Celeron® J4005
MEDION

E23201S-C-128F4 Intel® Celeron® J4005

60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 4 GB DDR4-SDRAM 128 GB SSD Windows 10 Wi-Fi 5 (802.11ac) Silver

Model E23201S-C-128F4Part no. 30027062EAN 4061275100587

100 specifications
  • Display60.5 cm (23.8")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Celeron®
  • Memory4 GB
  • Storage128 GB
  • GraphicsNot available
See all specifications

Overview

Display
60.5 cm (23.8")
Resolution
1920 x 1080 pixels
Processor
Intel® Celeron®
Memory
4 GB
Storage
128 GB
Graphics
Not available
Brand
MEDION
Model
E23201S-C-128F4
Part number
30027062
EAN / UPC
4061275100587
Also known as
MEDION E23201S-C-128F4 Intel® Celeron® J4005 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 4 GB DDR4-SDRAM 128 GB SSD Windows 10 Wi-Fi 5 (802.11ac) Silver

Specifications

100 specifications in 14 groups

Display

Display diagonal60.5 cm (23.8")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
LED backlightYes
Panel typeIPS
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor modelJ4005
Processor cores2
Processor threads2
Processor boost frequency2.7 GHz
Processor frequency2 GHz
Processor cache4 MB
Processor socketBGA 1090
Thermal Design Power (TDP)10 W
Maximum number of PCI Express lanes6
PCI Express configurations1x2, 1x2+2x1, 1x4, 2x1, 4x1
PCI Express slots version2.0
Processor codenameGemini Lake
Processor lithography14 nm
Processor operating modes64-bit
Tjunction105 °C
Conflict-Free processorYes
Maximum internal memory supported by processor8 GB
Memory types supported by processorDDR4-SDRAM, LPDDR4-SDRAM
Memory clock speeds supported by processor2400 MHz
Memory channels supported by processorDual
ECC supported by processorNo

Memory

Internal memory4 GB
Internal memory typeDDR4-SDRAM

Storage

Total storage capacity128 GB
Storage mediaSSD
Number of storage drives installed1
Total SSDs capacity128 GB
Number of SSDs installed1
SSD capacity128 GB
Optical drive typeNo

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card modelIntel® UHD Graphics 600
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency250 MHz
On-board graphics card burst frequency700 MHz
On-board graphics card dynamic frequency (max)700 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x3185
Number of execution units12

Camera

Built-in cameraYes

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes

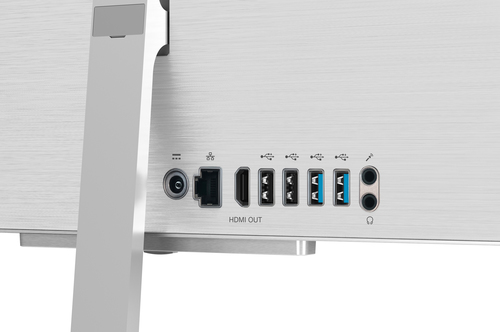

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
HDMI ports quantity1
VGA (D-Sub) ports quantity0
Mini DisplayPorts quantity0

Design

Product colourSilver

Performance

Product typeAll-in-One PC

Software

Operating system installedWindows 10

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Smart Response Technology version0.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Smart Response TechnologyNo
Intel® Turbo Boost TechnologyNo
Processor ARK ID128992
Processor package size25 x 24 mm
Thermal Monitoring TechnologiesYes
UARTYes

Weight & dimensions

Width (with stand)547 mm
Depth (with stand)120 mm
Height (with stand)386 mm
Weight (with stand)2.7 kg

Other features

3DNo
Detachable displayNo
