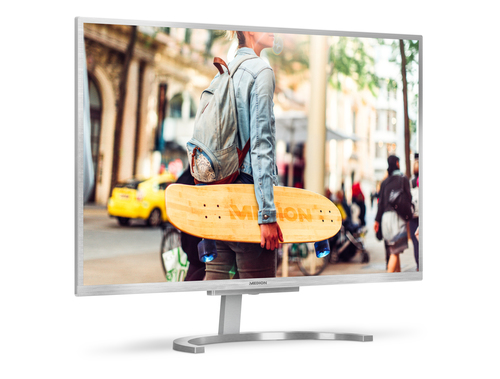

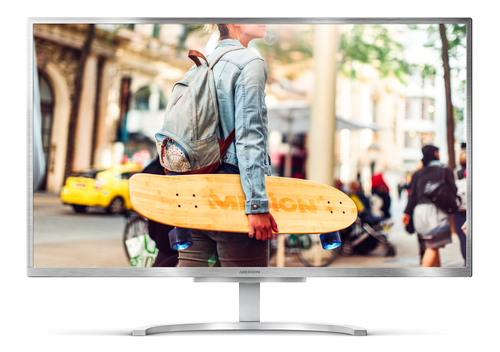

E23201 Intel® Celeron® J4005
60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 4 GB 64 GB eMMC Windows 10 Home Wi-Fi 5 (802.11ac) Silver
Model E23201Part no. 30025463EAN 4061275045628
101 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage64 GB
- GraphicsNot available
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 64 GB
- Graphics
- Not available
- Brand
- MEDION
- Category
- All-in-One PCs/Workstations
- Model
- E23201
- Part number
- 30025463
- EAN / UPC
- 4061275045628
- Also known as
- MEDION E23201 Intel® Celeron® J4005 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 4 GB 64 GB eMMC Windows 10 Home Wi-Fi 5 (802.11ac) Silver
Specifications
101 specifications in 16 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Screen shape | Flat |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | J4005 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 2 GHz |
| Processor cache | 4 MB |
| Processor socket | BGA 1090 |
| 64-bit computing | Yes |
| Thermal Design Power (TDP) | 10 W |
| Maximum number of PCI Express lanes | 6 |
| PCI Express configurations | 1x2, 1x2+2x1, 1x4, 2x1, 4x1 |
| PCI Express slots version | 2.0 |
| Processor codename | Gemini Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Tjunction | 105 °C |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
| Storage media | eMMC |
| Number of storage drives installed | 1 |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 600 |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 250 MHz |
| On-board graphics card burst frequency | 700 MHz |
| On-board graphics card dynamic frequency (max) | 700 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3185 |
| Number of execution units | 12 |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Housing material | Aluminium |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| BIOS password | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 128992 |
| Processor package size | 25 x 24 mm |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
Pen
| Specification | Value |
|---|---|
| Pen included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 546 mm |
| Depth (with stand) | 120 mm |
| Height (with stand) | 386 mm |
| Weight (with stand) | 2.9 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Power cord included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| Autonomy mode | No |
| Detachable display | No |
