MEDION 310-20IAP Intel® Pentium® J4205

49.5 cm (19.5") 1440 x 900 pixels All-in-One PC DDR3-SDRAM 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac) Black

Model 310-20IAPPart no. F0CL0049GEEAN 191376067084

139 specifications

Display49.5 cm (19.5")
Resolution1440 x 900 pixels
ProcessorIntel® Pentium®
Storage1 TB
SpeedWi-Fi 5 (802.11ac)
TypeAll-in-One PC

See all specifications

Overview

Display: 49.5 cm (19.5")
Resolution: 1440 x 900 pixels
Processor: Intel® Pentium®
Storage: 1 TB
Speed: Wi-Fi 5 (802.11ac)
Type: All-in-One PC

Brand: MEDION
Category: All-in-One PCs/Workstations
Model: 310-20IAP
Part number: F0CL0049GE
EAN / UPC: 191376067084
Also known as: MEDION 310-20IAP Intel® Pentium® J4205 49.5 cm (19.5") 1440 x 900 pixels All-in-One PC DDR3-SDRAM 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac) Black

Specifications

139 specifications in 17 groups

Display

Specification	Value
Display diagonal	49.5 cm (19.5")
Display resolution	1440 x 900 pixels
Touchscreen	No
HD type	Quad HD
LED backlight	Yes
Native aspect ratio	16:9
Panel type	IPS
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	J4205
Processor cores	4
Processor threads	4
Processor boost frequency	2.6 GHz
Processor frequency	1.5 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Processor socket	BGA 1296
Thermal Design Power (TDP)	10 W
Maximum number of PCI Express lanes	6
PCI Express configurations	1x2, 1x2+2x1
PCI Express slots version	2.0
Processor code	SR2ZA
Processor codename	Apollo Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Pentium Processor J4000 Series for Desktop
Stepping	B1
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM
Memory clock speeds supported by processor	1866,2400 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory type	DDR3-SDRAM
Maximum internal memory	4 GB
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	5400 RPM
HDD interface	SATA III
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 505
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	250 MHz
On-board graphics card burst frequency	800 MHz
Number of execution units	18

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Camera resolution	1280 x 720 pixels

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

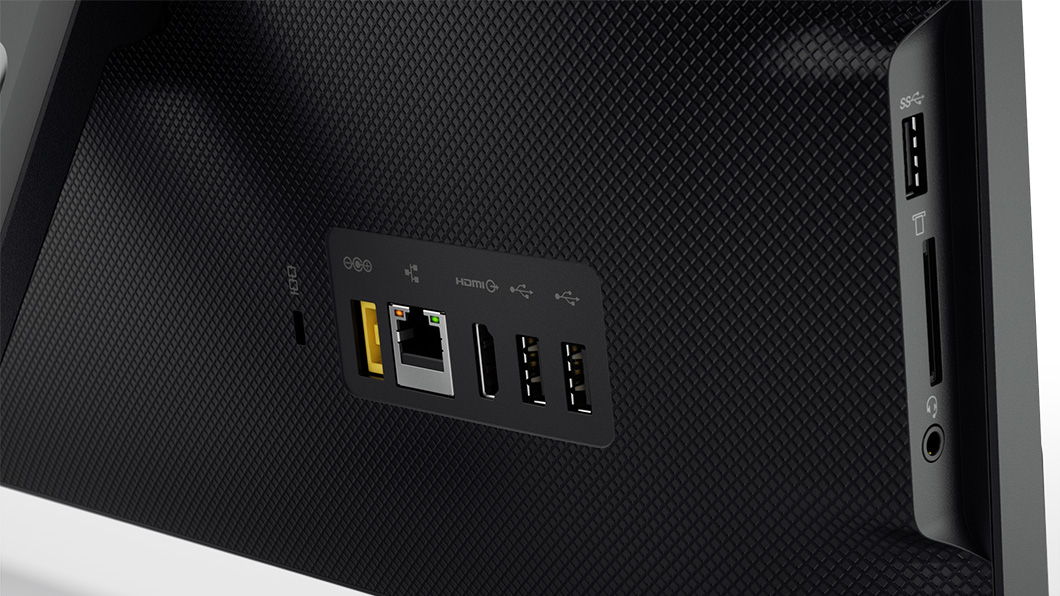

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	95591
Processor package size	24 x 31 mm
Thermal Monitoring Technologies	Yes
UART	Yes

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	461 mm
Depth (with stand)	37 mm
Height (with stand)	376 mm
Weight (with stand)	3.09 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
Detachable display	No
