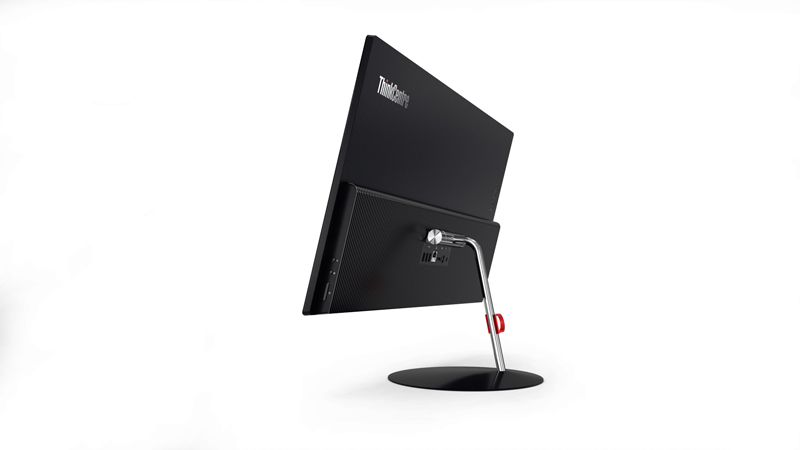

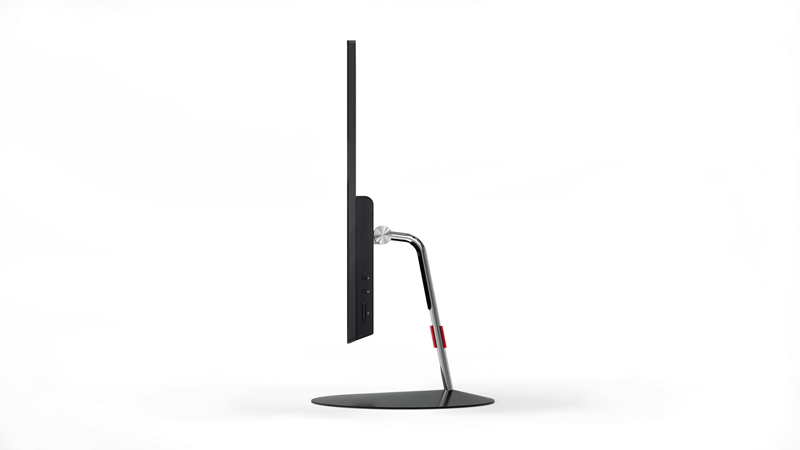

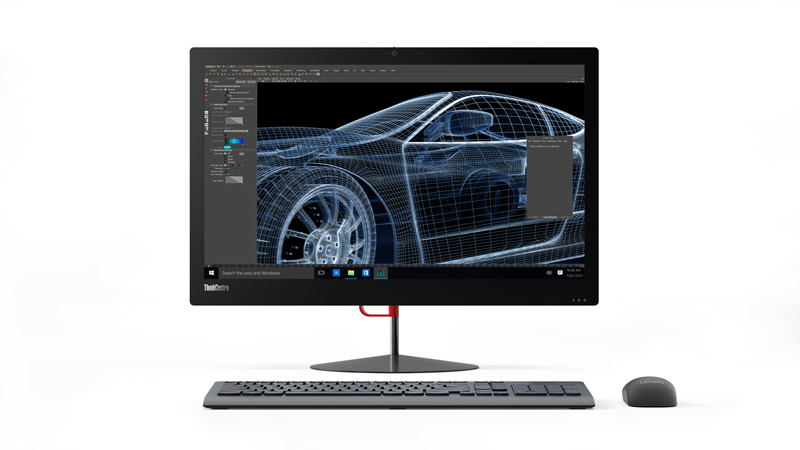

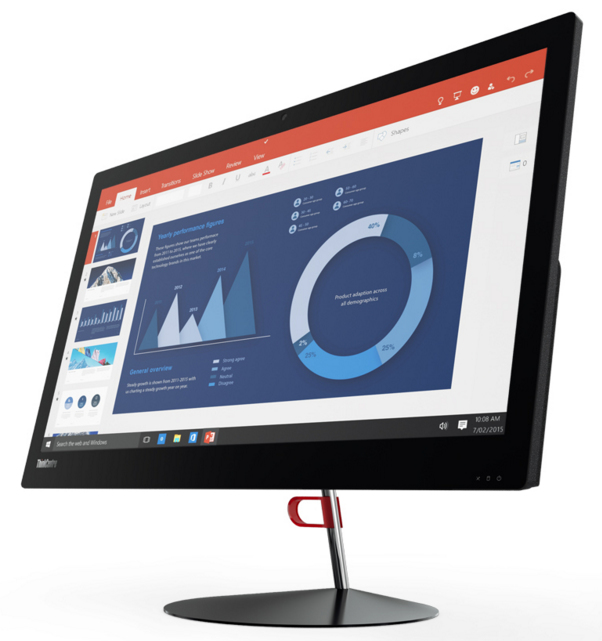

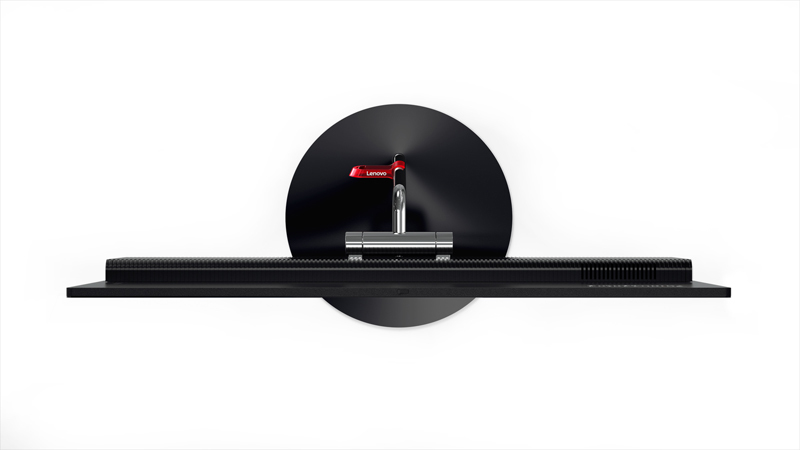

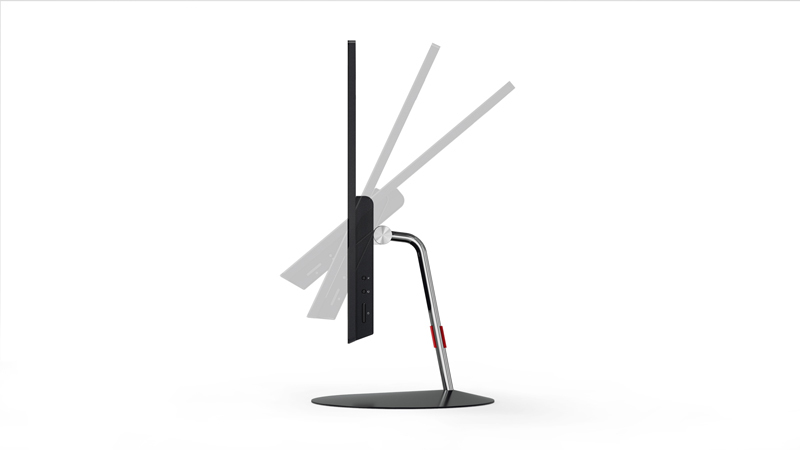

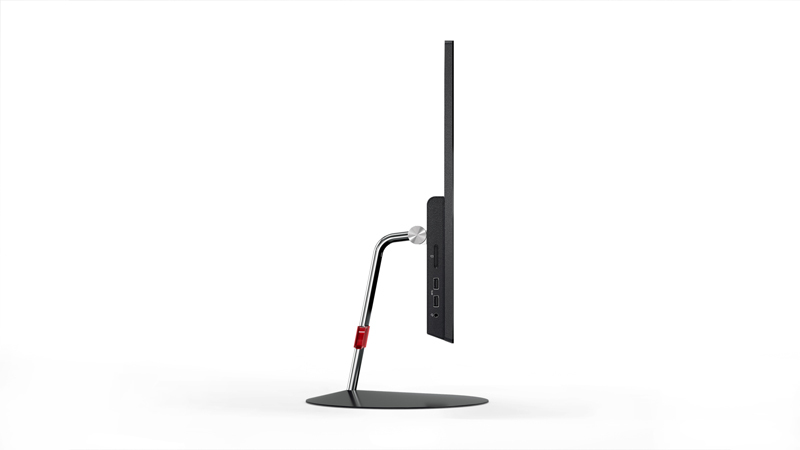

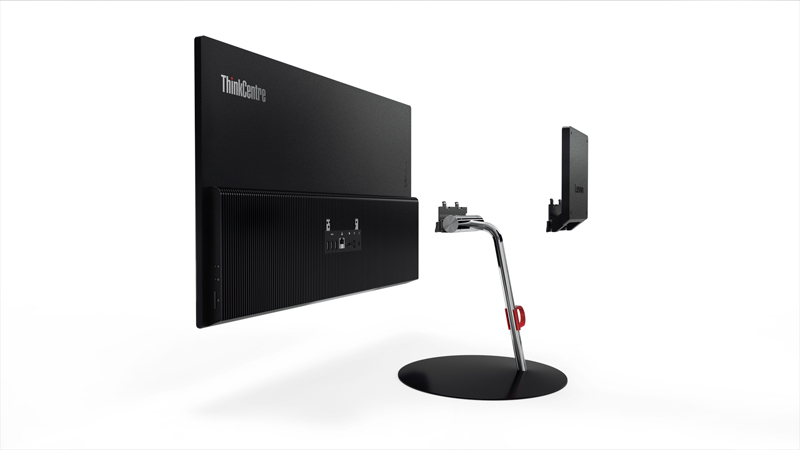

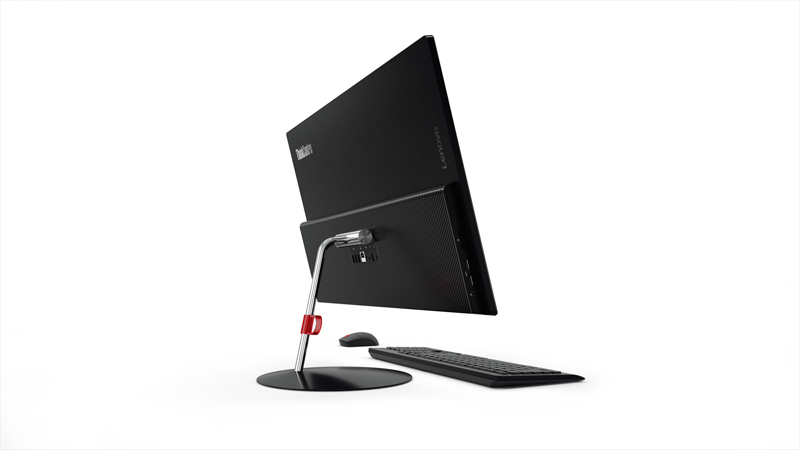

Lenovo ThinkCentre X1 Intel® Core™ i7 i7-6600U

60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 7 Professional Black

Model X1Part no. 10JX001NMHEAN 190151639188

164 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: X1
Part numbers: 10JX001NMH, 10JX000HMX, 10KE000BMX, 10JX000HUK, 10KE000BUK, 10KE000BFR +34 more
EAN / UPC: 190151639188, 190151638822, 190151639317, 190151639041 +41 more
Also known as: Lenovo ThinkCentre X1 Intel® Core™ i7 i7-6600U 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 7 Professional Black

Specifications

164 specifications in 17 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Panel type	IPS
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6600U
Processor cores	2
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	2.6 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	LGA 1356 (Socket B2)
64-bit computing	Yes
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	25 W
Configurable TDP-down frequency	0.8 GHz
Configurable TDP-down	7.5 W
Bus type	OPI
FSB Parity	No
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 4x1
PCI Express slots version	3.0
Processor code	SR2F1
Processor codename	Skylake
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6600 Mobile Series
Stepping	D1
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1866,2133,1600 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots	1
Memory slots type	SO-DIMM
Memory clock speed	2133 MHz
Memory layout (slots x size)	1 x 8 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	256 GB
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1916
On-board graphics card OpenGL version	4.4

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	10 W
Audio system	Dolby Advanced Audio

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	1
Headphone outputs	0
Microphone in	No
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Design

Specification	Value
Product colour	Black
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Trusted Platform Module (TPM)	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 10 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88192
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	90 W

Weight & dimensions

Specification	Value
Width (with stand)	570 mm
Depth (with stand)	240 mm
Height (with stand)	451 mm
Weight (with stand)	5 kg
Width (without stand)	570 mm
Depth (without stand)	33 mm
Height (without stand)	360 mm
Weight (without stand)	4 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
3D	No
Detachable display	No
