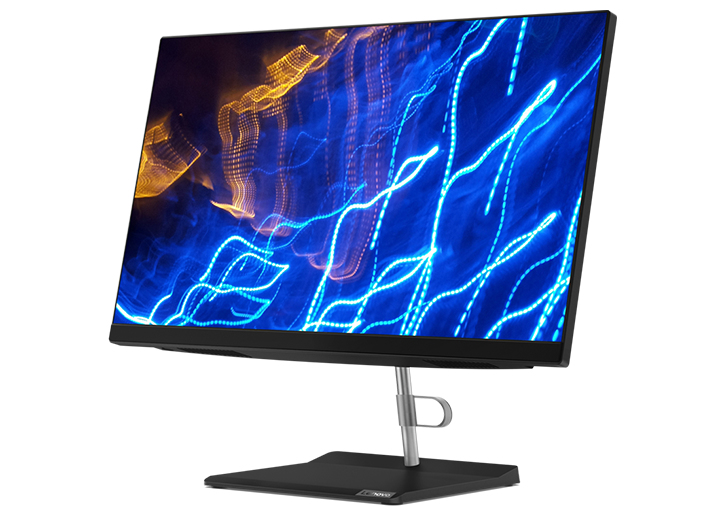

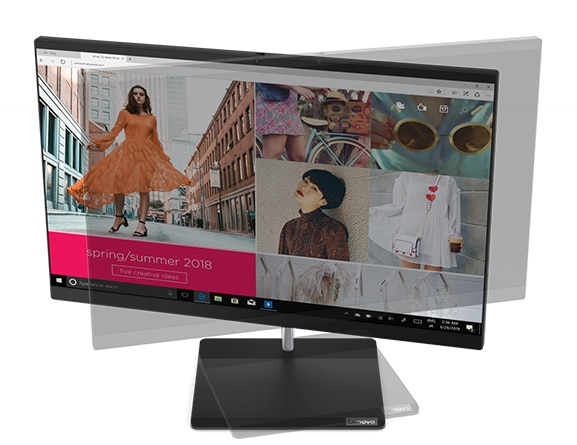

V540 Intel® Core™ i5 i5-8265U
60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 1.12 TB HDD+SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Black
Model V540Part no. 10YS002QRUEAN 193638961888
180 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage1.12 TB
- GraphicsNot available
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 1.12 TB
- Graphics
- Not available
- Brand
- Lenovo
- Category
- All-in-One PCs/Workstations
- Model
- V540
- Part numbers
- 10YS002QRU, 10YS0031RU, 10YS002SRU, 10YS002YRU, 10YS0034RU, 10YS0036RU +34 more
- EAN / UPC
- 193638961888, 193638696650, 193638696889, 193386096269 +17 more
- Also known as
- Lenovo V540 Intel® Core™ i5 i5-8265U 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 1.12 TB HDD+SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Black
Specifications
180 specifications in 19 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Display surface | Matt |
| Panel type | WVA |
| Screen shape | Flat |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8265U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1528 |
| System bus rate | 4 GT/s |
| 64-bit computing | Yes |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up frequency | 1.8 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Configurable TDP-down | 10 W |
| Bus type | OPI |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x4, 2x2 |
| PCI Express slots version | 3.0 |
| Processor codename | Whiskey Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Tjunction | 100 °C |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2666 MHz |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory form factor | DIMM/SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.12 TB |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| HDD interface | SATA III |
| Total SSDs capacity | 128 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3EA0 |
| On-board graphics card OpenGL version | 4.5 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in microphone | Yes |
| Audio chip | Realtek ALC233 |
| Audio system | HD |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Camera HD type | HD |
| Camera signal format | 720p |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| HDMI ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| On/off button | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Trusted Platform Module (TPM) | Yes |
| BIOS password | Yes |
| HDD user password | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 149088 |
| Processor package size | 46x24 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 65 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
Pen
| Specification | Value |
|---|---|
| Pen included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 541 mm |
| Depth (with stand) | 214 mm |
| Height (with stand) | 450 mm |
| Weight (with stand) | 6.4 kg |
| Width (without stand) | 541 mm |
| Depth (without stand) | 59.7 mm |
| Height (without stand) | 337 mm |
| Weight (without stand) | 4.8 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, EPEAT Bronze, ENERGY STAR |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| AC adapter included | Yes |
| Power cord included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| 3D | No |
| Autonomy mode | No |
| Detachable display | No |
