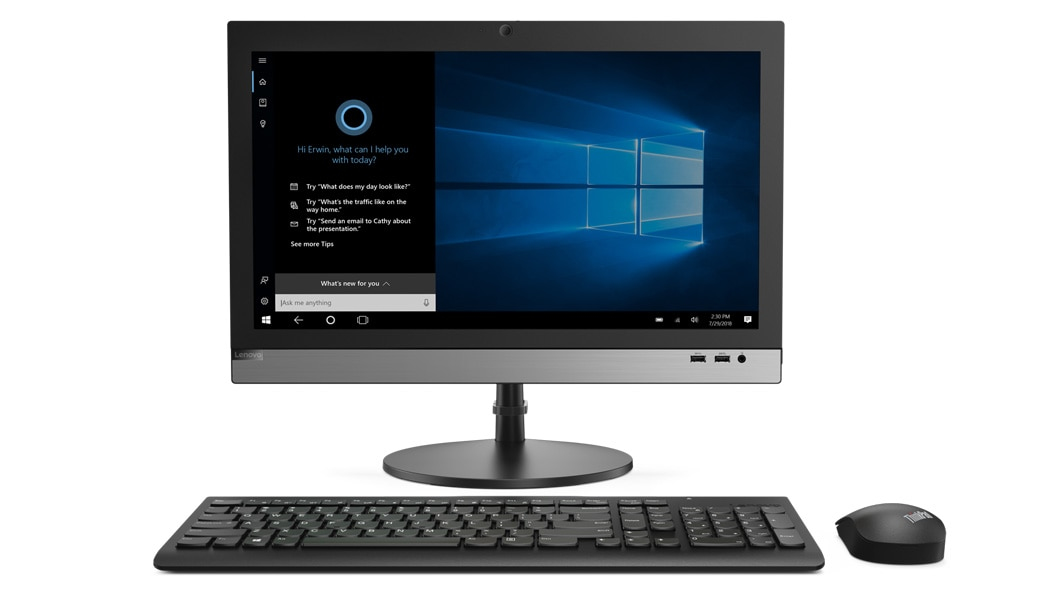

Lenovo V330 AIO
Lenovo

V330 AIO

Model V330 AIOPart no. 10UL005MLSEAN 193386616573

135 specifications
  • Display49.5 cm (19.5")
  • Resolution1600 x 900 pixels
  • ProcessorIntel® Core™ i3
  • Memory8 GB
  • Storage1 TB
  • GraphicsNot available
See all specifications

Overview

Display
49.5 cm (19.5")
Resolution
1600 x 900 pixels
Processor
Intel® Core™ i3
Memory
8 GB
Storage
1 TB
Graphics
Not available
Brand
Lenovo
Model
V330 AIO
Part number
10UL005MLS
EAN / UPC
193386616573
Also known as
Lenovo V330 AIO Intel® Core™ i3 i3-8100 49.5 cm (19.5") 1600 x 900 pixels All-in-One PC 8 GB DDR4-SDRAM 1 TB HDD Windows 10 Pro Wi-Fi 5 (802.11ac) Black

Specifications

135 specifications in 18 groups

Display

Display diagonal49.5 cm (19.5")
Display resolution1600 x 900 pixels
TouchscreenNo
HD typeHD+
LED backlightYes
Native aspect ratio16:9
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i3
Processor generation8th gen Intel® Core™ i3
Processor modeli3-8100
Processor cores4
Processor threads4
Processor boost frequency2400 GHz
Processor frequency3.6 GHz
Processor cache6 MB
Processor cache typeSmart Cache
Processor socketLGA 1151 (Socket H4)
System bus rate8 GT/s
Thermal Design Power (TDP)65 W
Bus typeDMI3
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
Processor codenameCoffee Lake
Processor lithography14 nm
Processor operating modes64-bit
Tjunction100 °C
Conflict-Free processorYes
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2400 MHz
Memory bandwidth supported by processor (max)37.5 GB/s

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory32 GB
Memory slots2
Memory slots typeSO-DIMM
Memory clock speed2666 MHz
Memory form factorDIMM/SO-DIMM

Storage

Total storage capacity1 TB
Storage mediaHDD
Number of storage drives installed1
Total HDDs capacity1 TB
Number of HDDs installed1
HDD capacity1 TB
HDD speed7200 RPM
Optical drive typeDVD±RW

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1100 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x3E91
On-board graphics card OpenGL version4.5
Number of execution units23

Audio

Built-in speaker(s)Yes
Number of speakers2

Camera

Built-in cameraNo

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type1x1
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.1

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt 3 ports quantity0
Thunderbolt ports quantity0
Headphone outputs1
Microphone inNo

Design

Product colourBlack

Performance

Product typeAll-in-One PC
Market positioningBusiness

Software

Operating system installedWindows 10 Pro
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel Stable Image Platform Program (SIPP) version0.00
Intel TSX-NINo
Intel TSX-NI version0.00
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost TechnologyNo
Processor ARK ID126688
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015C

Power

AC adapter power120 W

Pen

Pen includedNo

Weight & dimensions

Width (with stand)477 mm
Depth (with stand)86.6 mm
Height (with stand)398 mm
Weight (with stand)6.36 kg
Width (without stand)477 mm
Depth (without stand)59.5 mm
Height (without stand)380 mm
Weight (without stand)5.02 kg

Packaging content

Cables includedAC
Power cord includedYes

Other features

3DNo
Autonomy modeNo
Detachable displayNo
