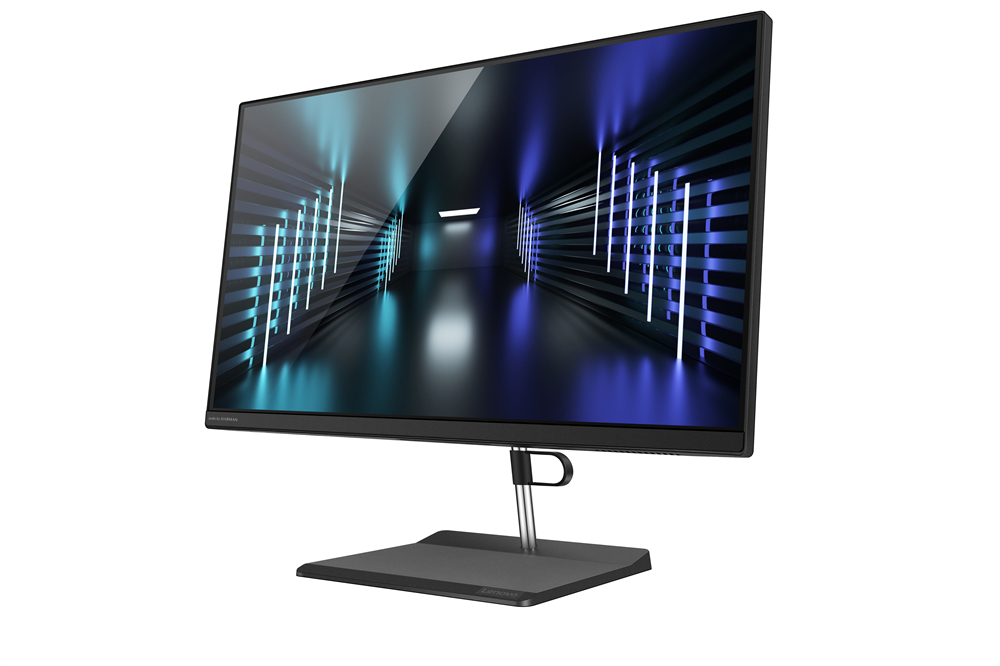

Lenovo V30a-24ITL AIO

V30a-24ITL AIO

Model V30a-24ITL AIOPart no. 12D8001LSPEAN 196802111010

96 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: V30a-24ITL AIO
Part numbers: 12D8001LSP, 12D8001LUK
EAN / UPC: 196802111010, 196802108508
Also known as: Lenovo V30a-24ITL AIO Intel® Core™ i5 i5-1135G7 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro Wi-Fi 5 (802.11ac) Bl

Specifications

96 specifications in 18 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	11th gen Intel® Core™ i5
Processor model	i5-1135G7
Processor cores	4
Processor boost frequency	4.2 GHz
Processor frequency	2.4 GHz
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	28 W
Configurable TDP-down frequency	0.9 GHz
Configurable TDP-down	12 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz
Memory layout (slots x size)	2 x 4 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	DVD±RW

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in microphone	Yes
Audio chip	Realtek ALC233

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1

Design

Specification	Value
Product colour	Black
Colour name	Raven Black

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
HDD user password	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	90 W

Weight & dimensions

Specification	Value
Width (with stand)	541 mm
Depth (with stand)	214 mm
Height (with stand)	433.5 mm
Weight (with stand)	6.4 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m

Certificates

Specification	Value
Compliance certificates	REACH, RoHS, WEEE
Certification	ErP Lot 3 and Lot 7

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Keyboard language	Spanish
