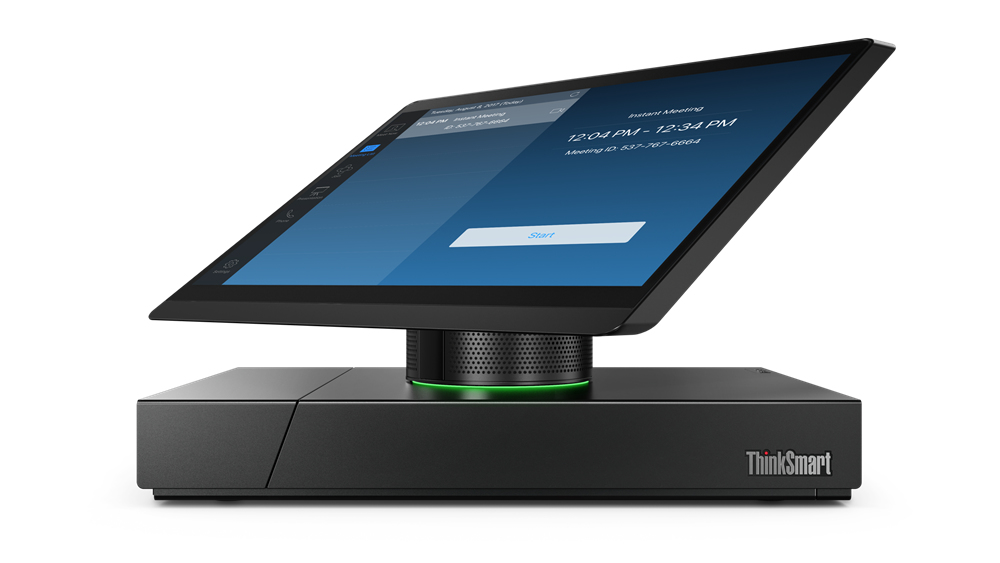

Lenovo ThinkSmart Hub 500 - Zoom Version

ThinkSmart Hub 500 - Zoom Version

Model ThinkSmart Hub 500 - Zoom VersionPart no. 10V50006SP

88 specifications

Display29.5 cm (11.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage128 GB
GraphicsNot available

See all specifications

Overview

Display: 29.5 cm (11.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 128 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: ThinkSmart Hub 500 - Zoom Version
Part number: 10V50006SP
Also known as: Lenovo ThinkSmart Hub 500 - Zoom Version Intel® Core™ i5 i5-7500T 29.5 cm (11.6") 1920 x 1080 pixels Touchscreen All-in-One thin client 8 GB DDR4-SDRAM 128 GB S

Specifications

88 specifications in 18 groups

Display

Specification	Value
Display diagonal	29.5 cm (11.6")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Panel type	IPS
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor model	i5-7500T
Processor cores	4
Processor boost frequency	3.3 GHz
Processor frequency	2.7 GHz
Processor cache	6 MB
Configurable TDP-down frequency	1.7 GHz
Bus type	DMI3
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	128 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	128 GB
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 630

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	3
Headphone outputs	3.5
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One thin client
Market positioning	Business
Motherboard chipset	Intel® Q270
Trusted Platform Module (TPM)	Yes

Software

Specification	Value
Operating system installed	Windows 10 IoT Enterprise
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	90 W

Weight & dimensions

Specification	Value
Width (with stand)	193.2 mm
Depth (with stand)	278.9 mm
Height (with stand)	178.4 mm
Weight (with stand)	2.5 kg

Certificates

Specification	Value
Compliance certificates	RoHS, WEEE

Sustainability

Specification	Value
Sustainability certificates	ErP, GREENGUARD

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
