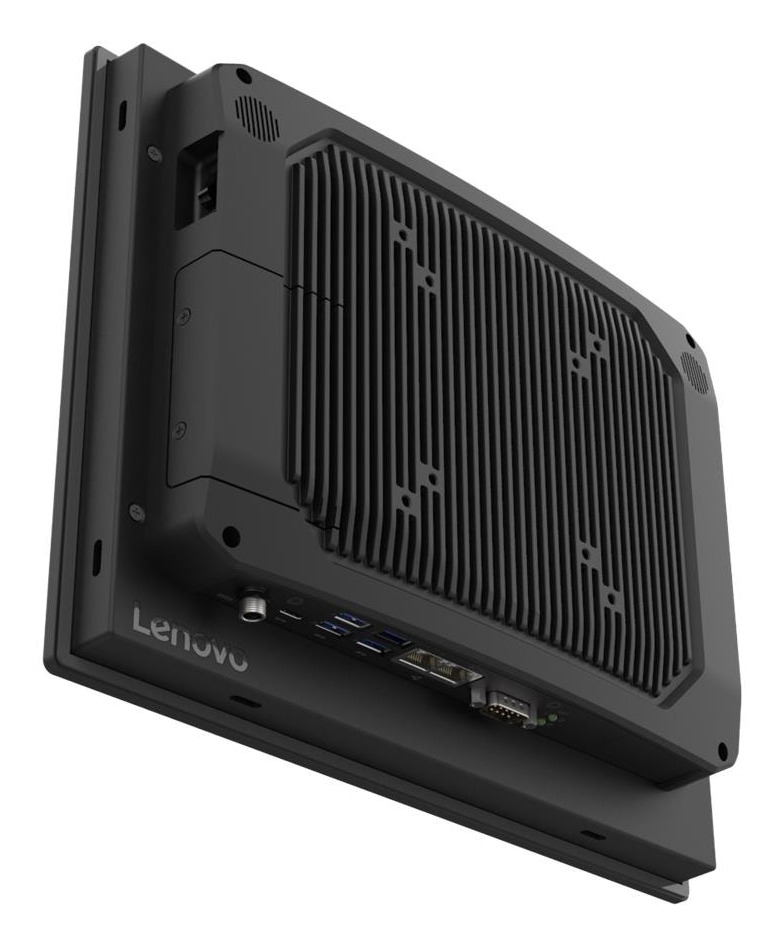

Lenovo ThinkEdge SE50a-21 Gen1

ThinkEdge SE50a-21 Gen1

Model ThinkEdge SE50a-21 Gen1Part no. 13NDS00000EAN 199276044167

93 specifications

Display54.6 cm (21.5")
Resolution1920 x 1680 pixels
ProcessorIntel Core 7
Memory16 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1680 pixels
Processor: Intel Core 7
Memory: 16 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: ThinkEdge SE50a-21 Gen1
Part numbers: 13NDS00000, 13NC0004GE
EAN / UPC: 199276044167
Also known as: Lenovo ThinkEdge SE50a-21 Gen1 Intel Core 7 150UL 54.6 cm (21.5") 1920 x 1680 pixels Touchscreen All-in-One PC 16 GB DDR5-SDRAM 256 GB SSD Windows 11 IoT Enterp

Specifications

93 specifications in 18 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1680 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Anti-glare screen	Yes
Multi-touch	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core 7
Processor generation	Intel Core (Series 1)
Processor model	150UL
Processor cores	10
Processor threads	12
Processor boost frequency	5 GHz
Performance cores	2
Efficient cores	8
Low Power Efficient-cores	0
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor socket	LGA 1700
Maximum turbo power	55 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	32 GB
Memory slots	1
Memory slots type	SO-DIMM
Memory clock speed	5600 MHz

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD memory type	TLC
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	1
RMS rated power	1 W
Audio chip	Realtek ALC888S-VD2-GR

Camera

Specification	Value
Built-in camera	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

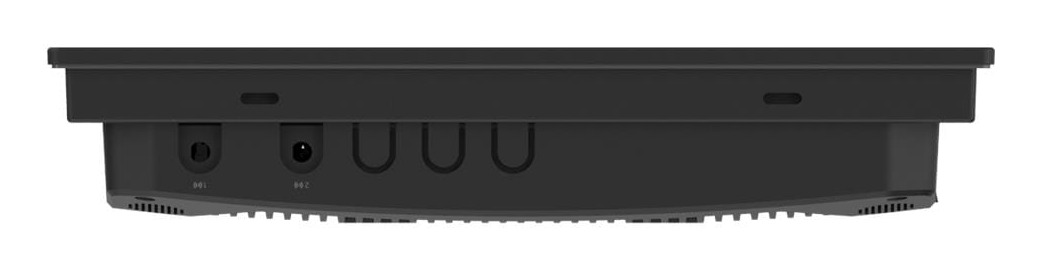

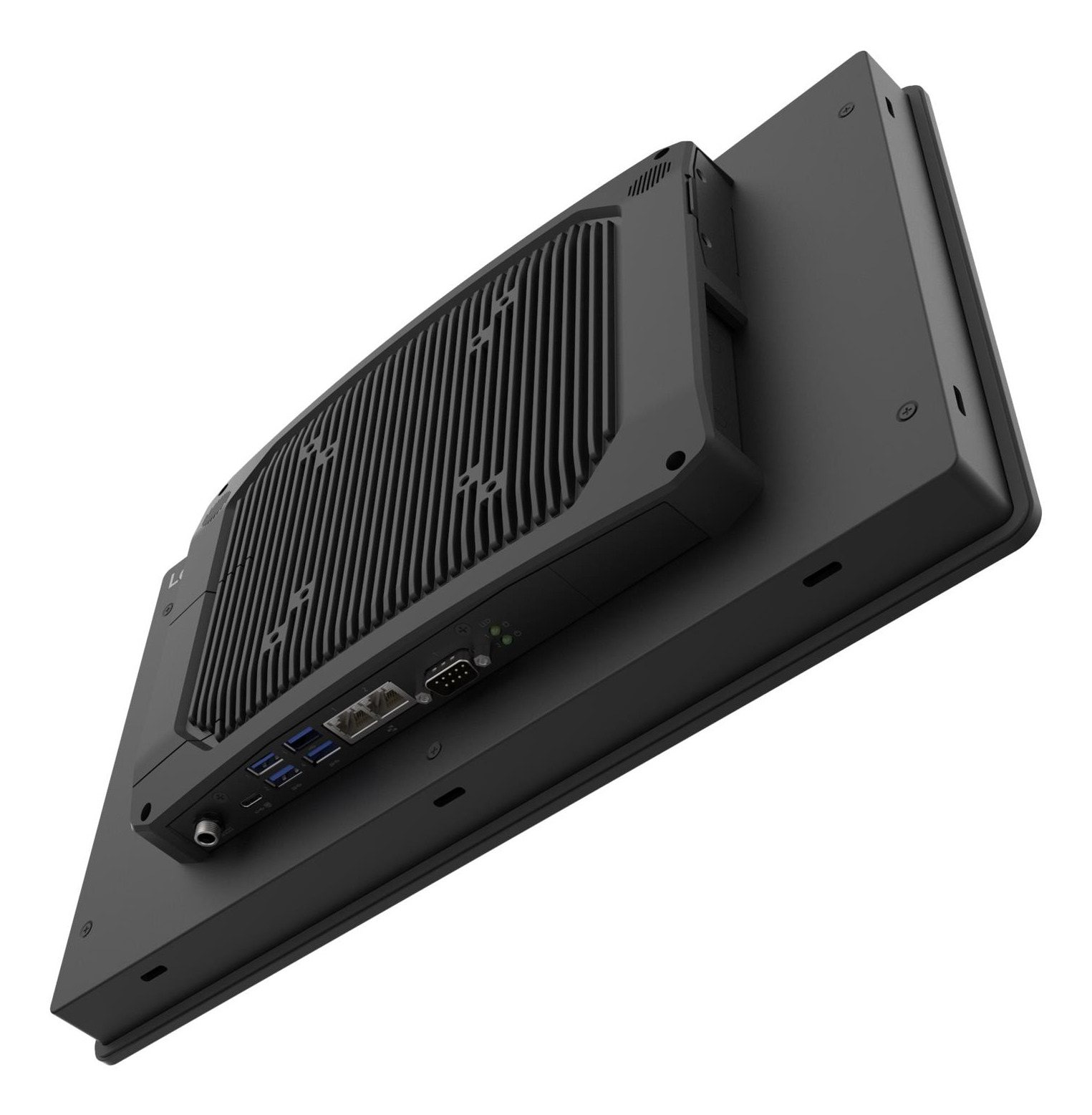

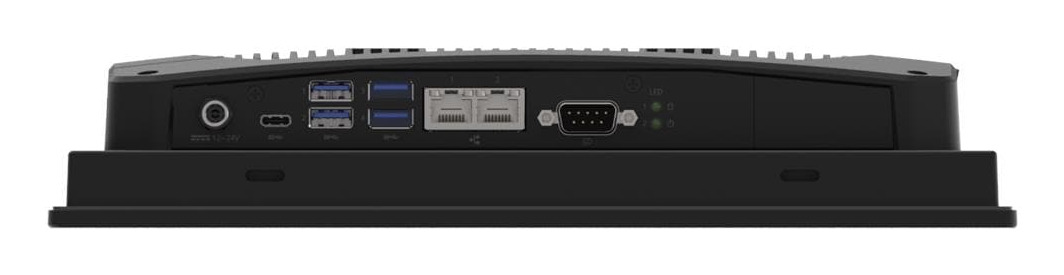

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	0
DC-in jack	Yes
Serial ports quantity	1

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
BIOS password	Yes

Software

Specification	Value
Operating system installed	Windows 11 IoT Enterprise LTSC
Operating system language	English, Finnish, Swedish, Danish, Norwegian

Power

Specification	Value
AC adapter power	150 W

Weight & dimensions

Specification	Value
Width (without stand)	645 mm
Depth (without stand)	507 mm
Height (without stand)	130 mm
Weight (without stand)	7.3 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	-20 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 90%

Certificates

Specification	Value
Certification	ErP Lot 6/26 EMC Class A MIL-STD-810H w-Change 1-2022

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Technical details

Specification	Value
Operating shock	20 G
