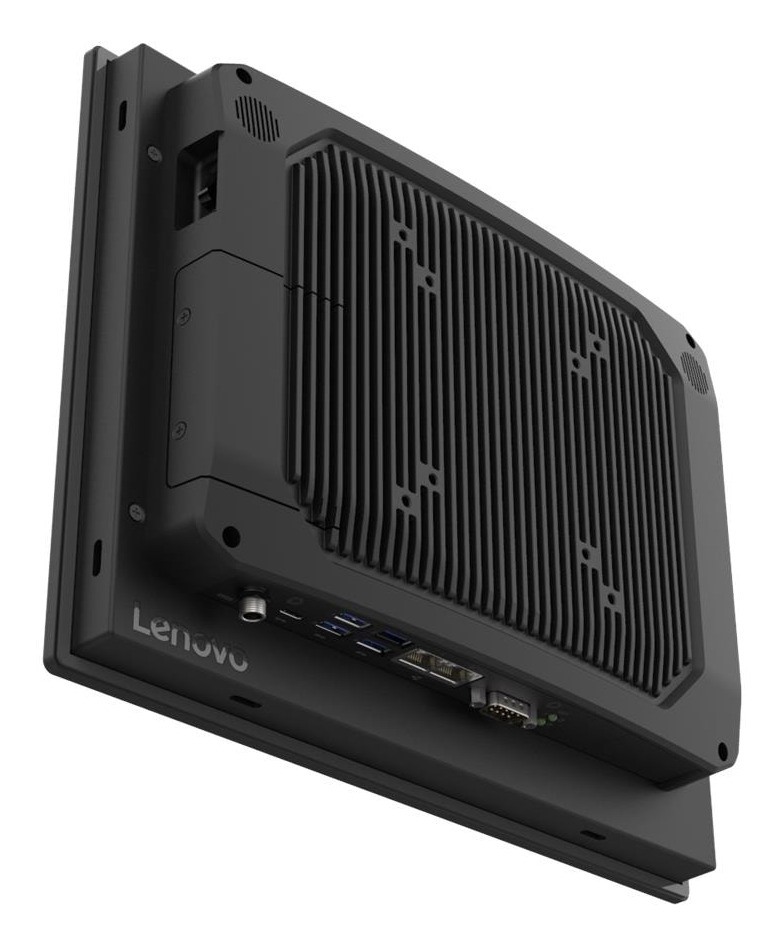

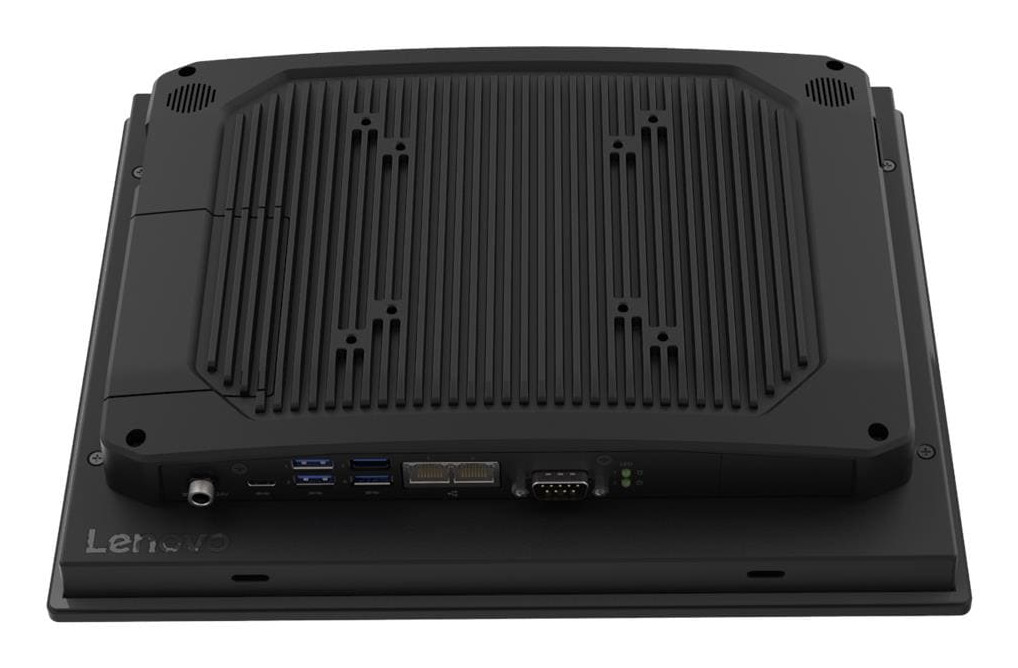

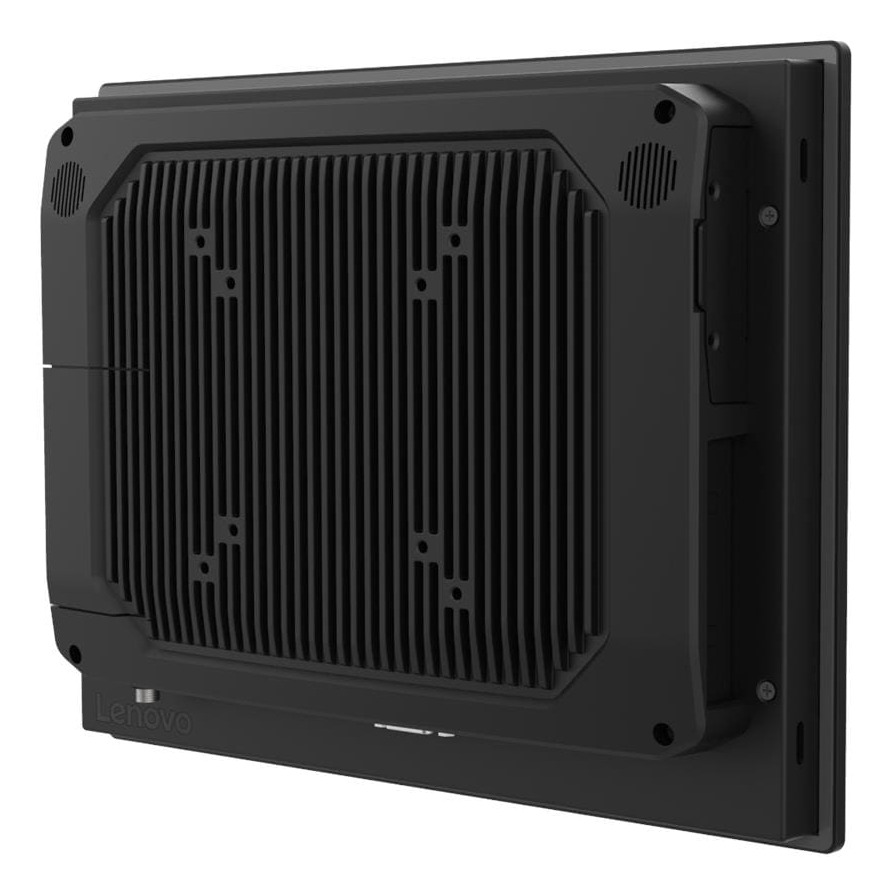

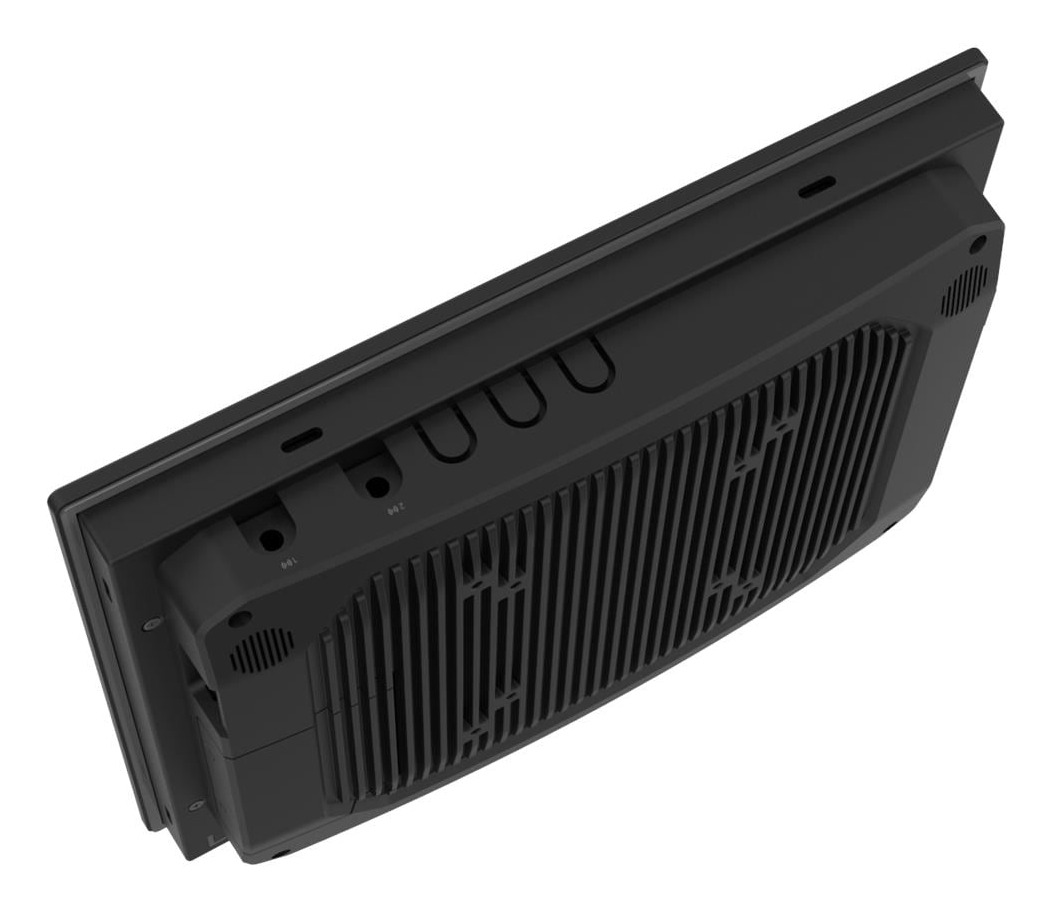

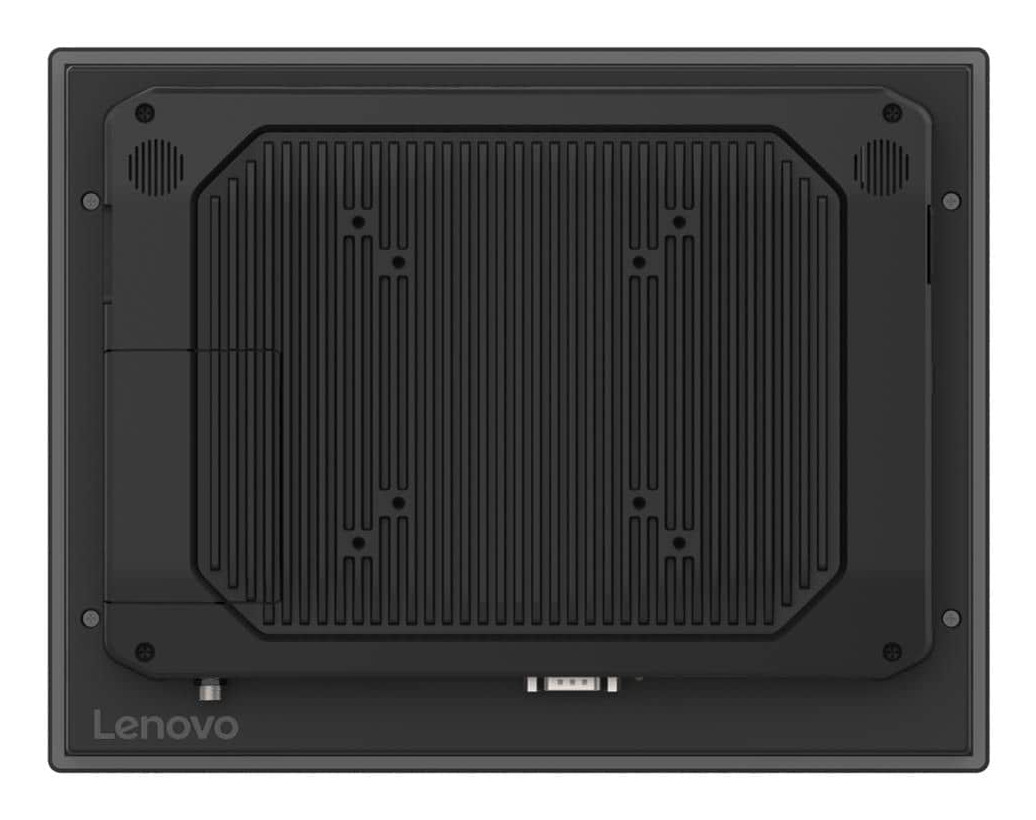

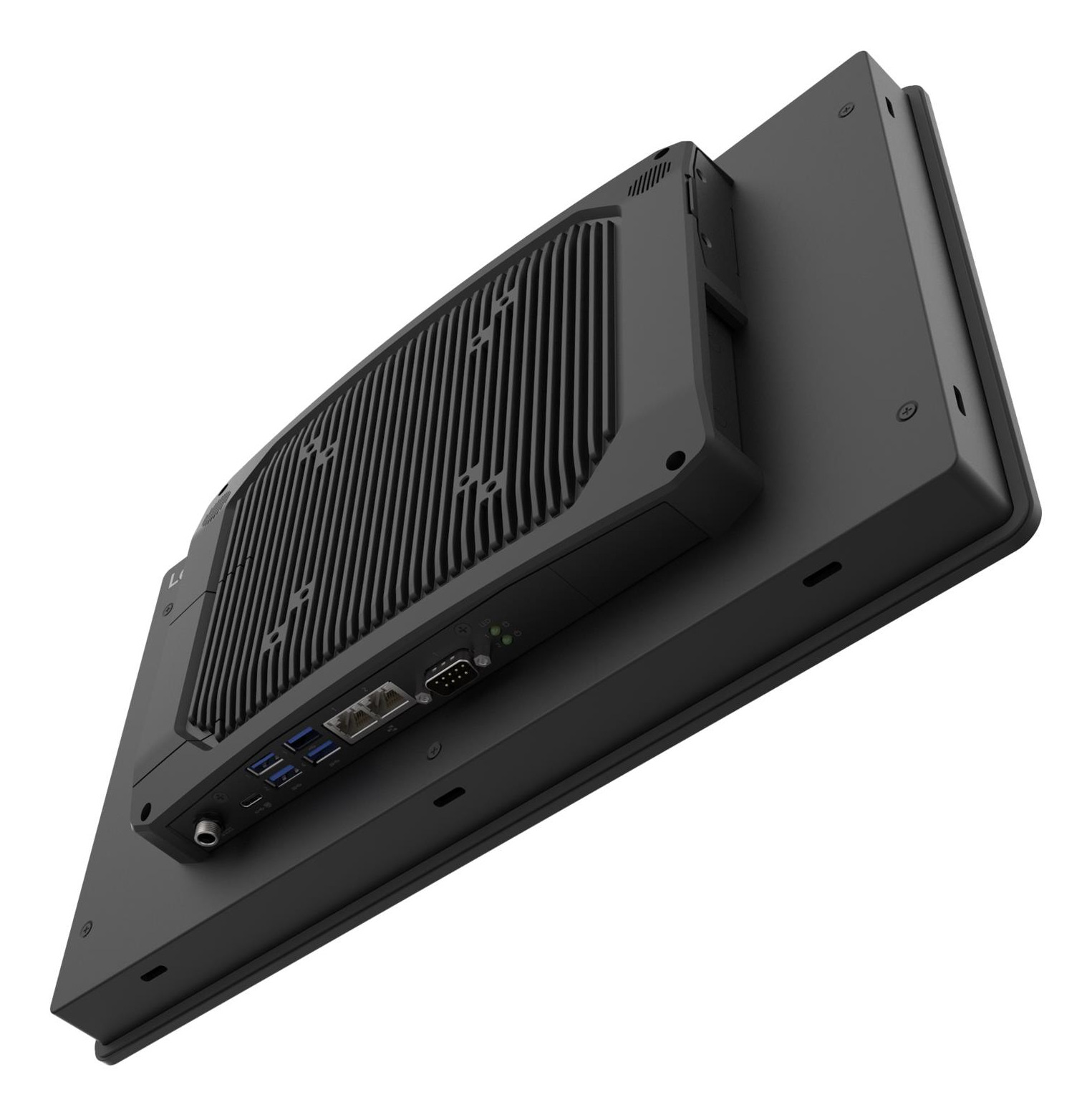

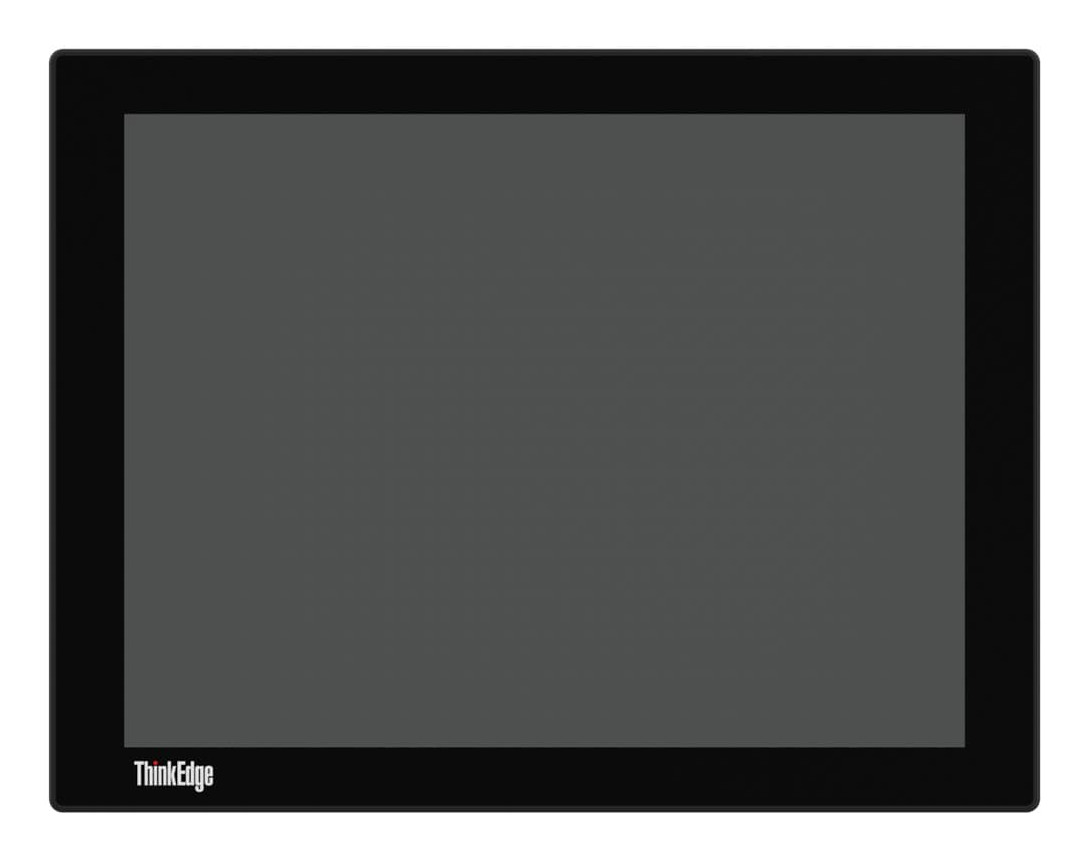

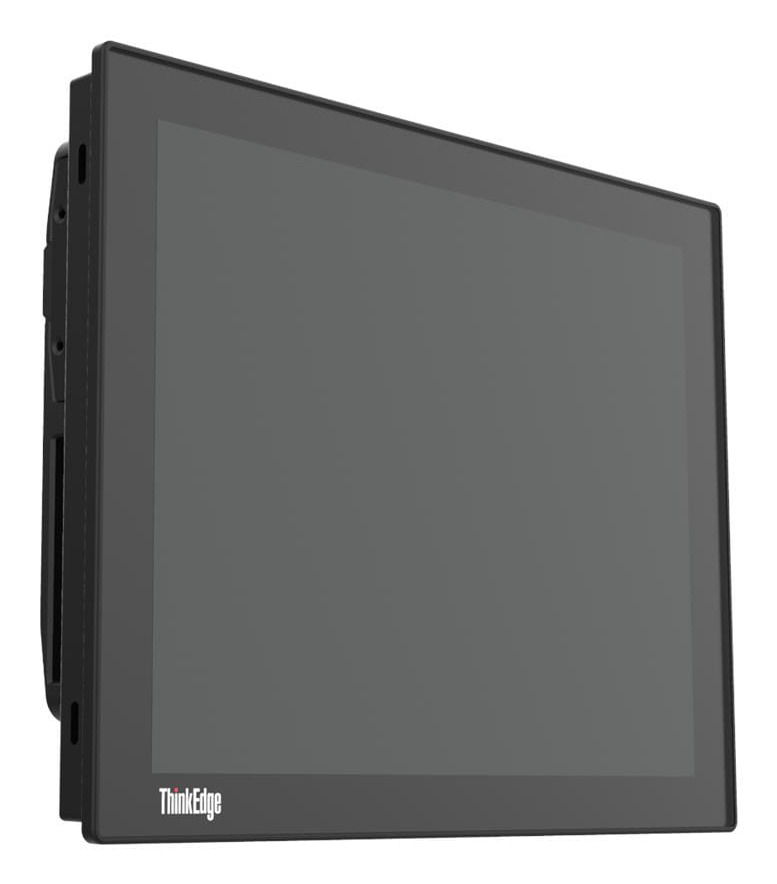

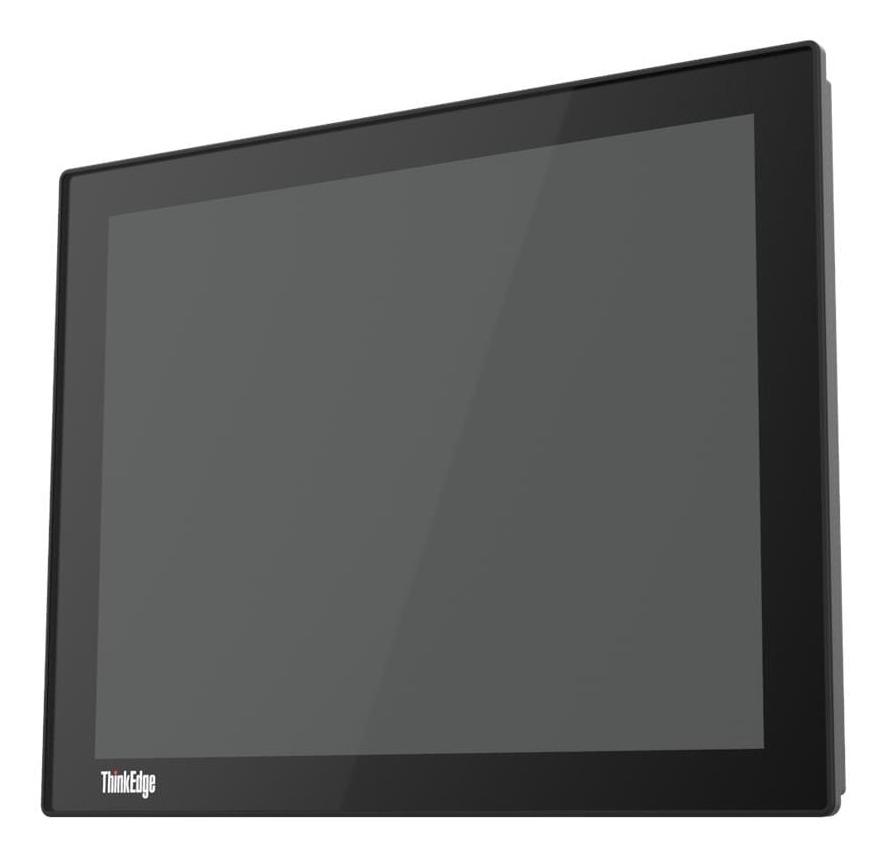

Lenovo ThinkEdge SE50a-12 Gen1

ThinkEdge SE50a-12 Gen1

Model ThinkEdge SE50a-12 Gen1Part no. 13MR0003GEEAN 199276049537

86 specifications

Display30.7 cm (12.1")
Resolution1024 x 768 pixels
ProcessorIntel® U
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1024 x 768 pixels
Processor: Intel® U
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: ThinkEdge SE50a-12 Gen1
Part number: 13MR0003GE
EAN / UPC: 199276049537
Also known as: Lenovo ThinkEdge SE50a-12 Gen1 Intel® U U300L 30.7 cm (12.1") 1024 x 768 pixels Touchscreen All-in-One thin client 8 GB DDR5-SDRAM 256 GB SSD Windows 11 IoT Ent

Specifications

86 specifications in 17 groups

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1024 x 768 pixels
Touchscreen	Yes
HD type	XGA
Native aspect ratio	4:3
Display brightness	600 cd/m²
Panel type	IPS

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® U
Processor model	U300L
Processor cores	5
Processor threads	6
Processor boost frequency	4.4 GHz
Performance cores	1
Efficient cores	4
Performance-core Max Turbo Frequency	4.4 GHz
Efficient-core Max Turbo Frequency	3.3 GHz
Processor cache	8 MB
Processor socket	LGA 1700
Maximum turbo power	55 W
Processor base power	15 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	32 GB
Memory slots	1
Memory slots type	SO-DIMM
Memory clock speed	5600 MHz
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	1
Audio chip	Realtek ALC888S-VD2-GR

Camera

Specification	Value
Built-in camera	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	0
DC-in jack	Yes
Serial ports quantity	1

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One thin client
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
BIOS password	Yes

Software

Specification	Value
Operating system installed	Windows 11 IoT Enterprise LTSC
Operating system language	German

Power

Specification	Value
AC adapter power	150 W

Weight & dimensions

Specification	Value
Width (without stand)	293.8 mm
Depth (without stand)	226.3 mm
Height (without stand)	54.5 mm
Weight (without stand)	3.2 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C

Certificates

Specification	Value
Certification	ErP Lot 6/26 RoHS compliant

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
