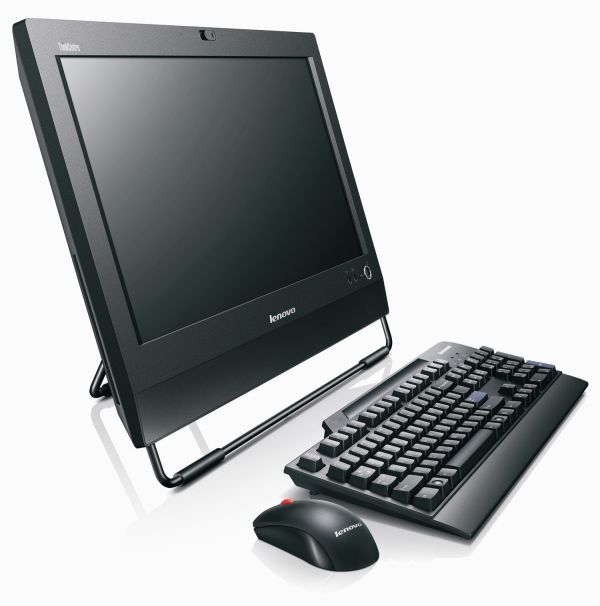

Lenovo ThinkCentre M71z

Model ThinkCentre M71zPart no. 1782RN7EAN 886843618066

154 specifications

Display50.8 cm (20")
Resolution1600 x 900 pixels
ProcessorIntel® Celeron®
Memory2 GB
Storage250 GB
OSWindows 7 Professional

See all specifications

Overview

Display: 50.8 cm (20")
Resolution: 1600 x 900 pixels
Processor: Intel® Celeron®
Memory: 2 GB
Storage: 250 GB
OS: Windows 7 Professional

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: ThinkCentre M71z
Part numbers: 1782RN7, 1761D7U, 1761D9U, SNZE5GE
EAN / UPC: 886843618066, 886843621547, 886843621790, 886843926314
Also known as: Lenovo ThinkCentre M71z Intel® Celeron® G530 50.8 cm (20") 1600 x 900 pixels 2 GB DDR3-SDRAM 250 GB HDD Windows 7 Professional Black

Specifications

154 specifications in 20 groups

Display

Specification	Value
Display diagonal	50.8 cm (20")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
Full HD	No
LED backlight	No
Native aspect ratio	16:9
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	G530
Processor cores	2
Processor threads	2
Processor frequency	2.4 GHz
Processor cache	2 MB
Processor cache type	L3
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	24
PCI Express slots version	2.0
Processor code	SR05H
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Stepping	Q0
Tcase	69.1 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	16 GB/s
Memory channels supported by processor	Dual

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory slots type	DIMM
Memory clock speed	1333 MHz
Memory layout (slots x size)	1 x 2 GB

Storage

Specification	Value
Total storage capacity	250 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
HDD size	3.5"
HDD interface	SATA
Number of SSDs installed	0
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1000 MHz

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W
Audio system	HD

Camera

Specification	Value
Built-in camera	No

Optical drive

Specification	Value
Optical drive interface	SATA

Network

Specification	Value
Wi-Fi	No
Wi-Fi standards	Not supported
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	1
DVI port	No
Headphone outputs	1
Microphone in	Yes
FireWire 800	No
Firewire (IEEE 1394) ports	0
Composite video in	0
Docking connector	No
Mini PCI Express slots	1
PS/2 ports quantity	0
Serial ports quantity	0
S/PDIF out port	No

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Wall mountable	Yes

Performance

Specification	Value
Motherboard chipset	Intel® H61
Trusted Platform Module (TPM)	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Bundled software	Rescue and Recovery ThinkVantage System Update ThinkVantage Power Manager ThinkVantage Toolbox Norton Internet Security 2011 Adobe Reader Skype f/ Windows MicrosoftOffice 2010 Corel Burn.Now (DVD±RW) Corel DVD MovieFactory (DVD±RW) Corel WinDVD (DVD±RW)

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53414
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	150 W

Weight & dimensions

Specification	Value
Width (with stand)	507 mm
Depth (with stand)	101 mm
Height (with stand)	411 mm
Weight (with stand)	7.5 kg

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	TCO GREENGUARD Climate Saver

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	Yes

Other features

Specification	Value
Graphics card family	Intel
Audio adapter type	Realtek ALC269Q
Camera included	No
Chassis type	All-in-One
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Display	TFT
Display diagonal (metric)	50.8 cm
Display included	Yes
Ethernet interface type	Gigabit Ethernet
Fibre Channel	No
HDMI	No
Headphone connectivity	3.5 mm
Internal modem	No
Keyboard number of keys	104
Maximum resolution	1920 x 1080 pixels
Microphone connectivity	3.5 mm
Mini HDMI ports quantity	0
Modem (RJ-11) ports	0
Number of processors installed	1
Power supply	150 W
Storage drive interface	Serial ATA
