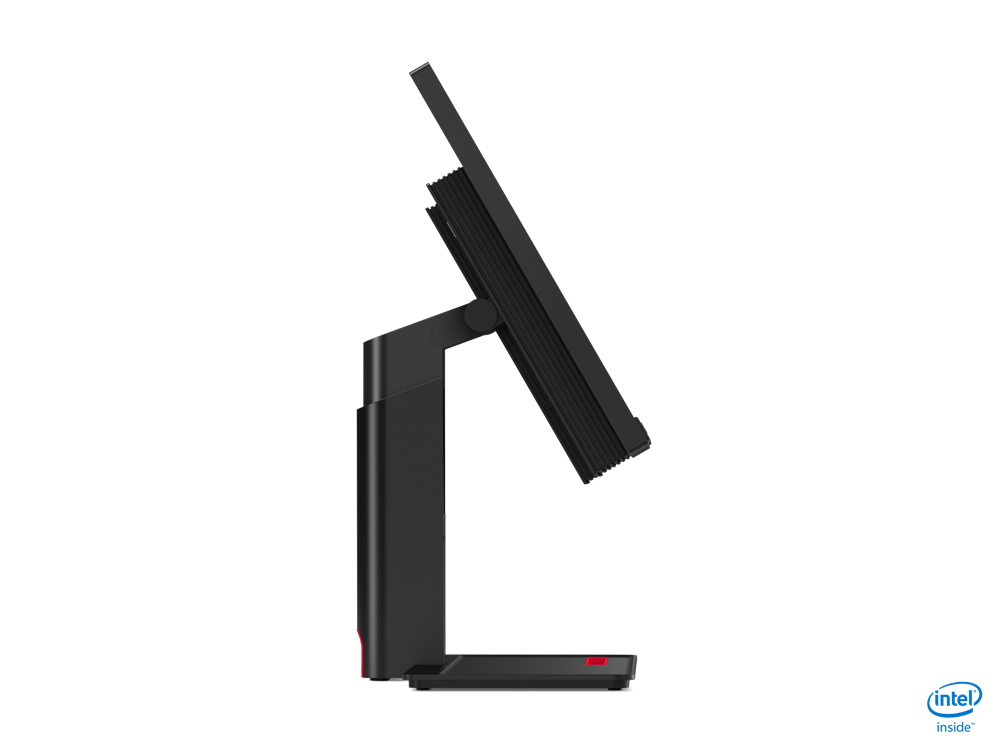

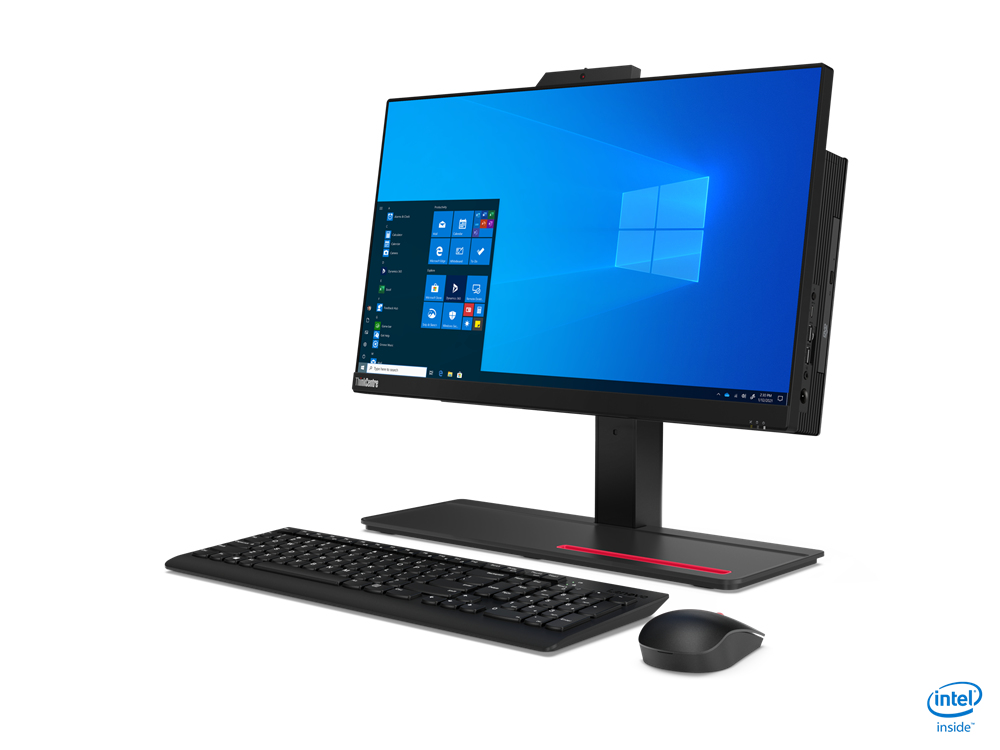

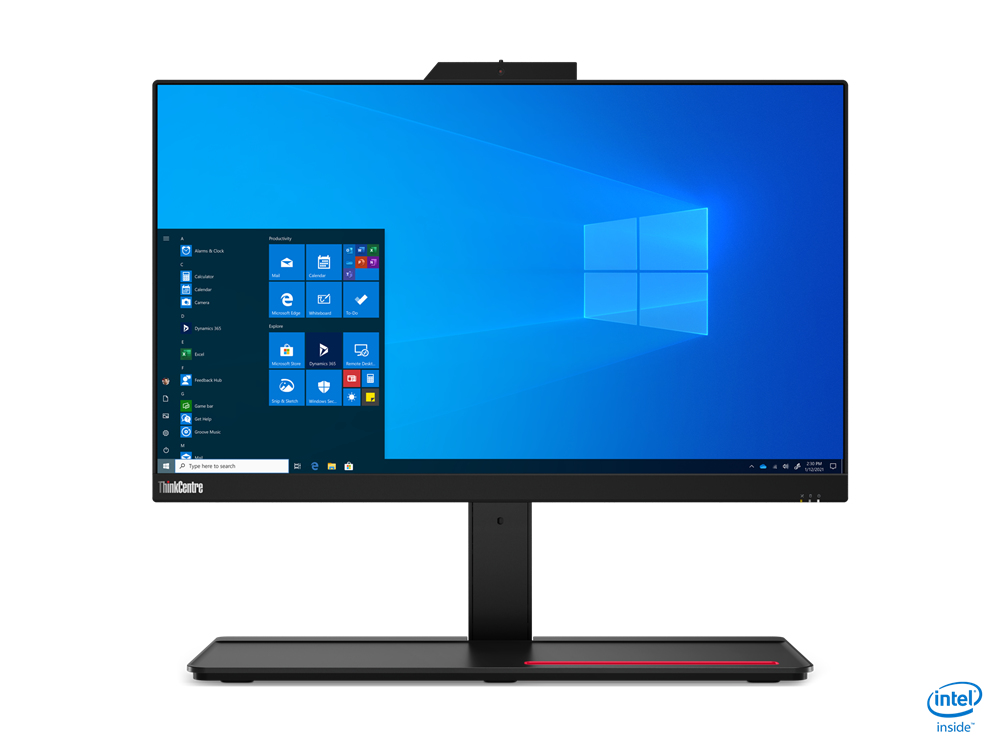

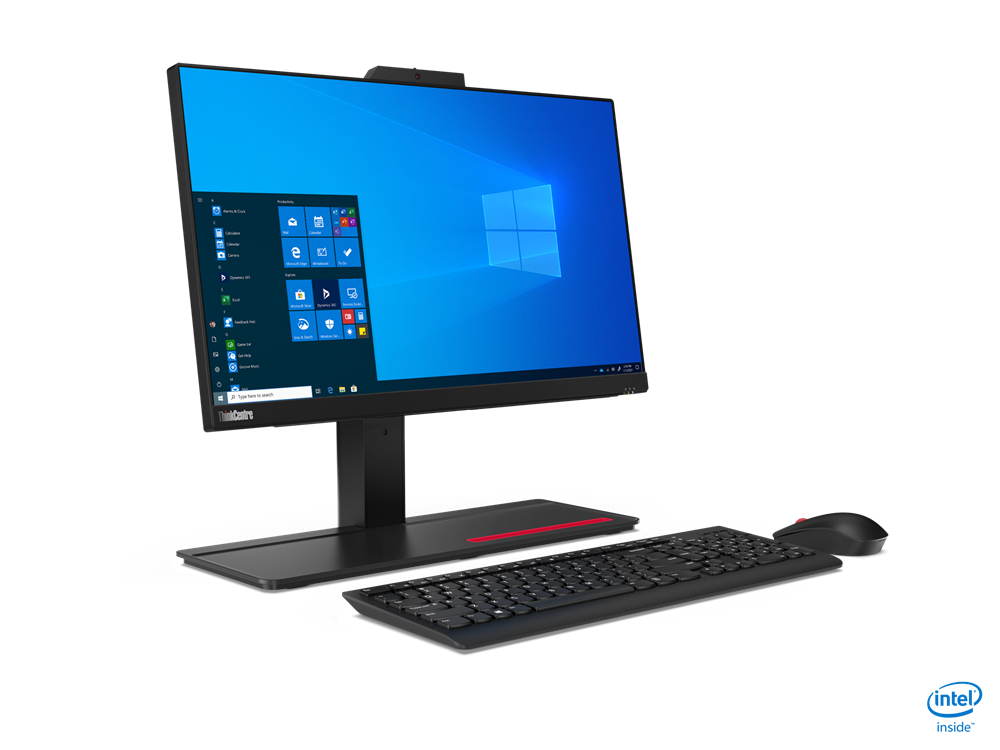

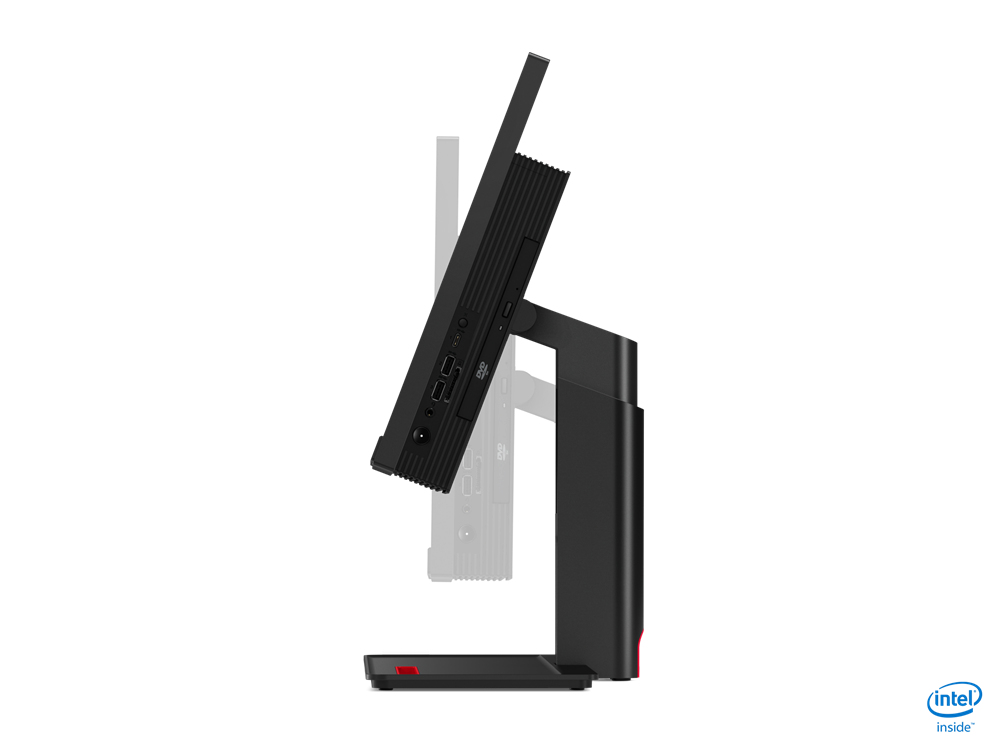

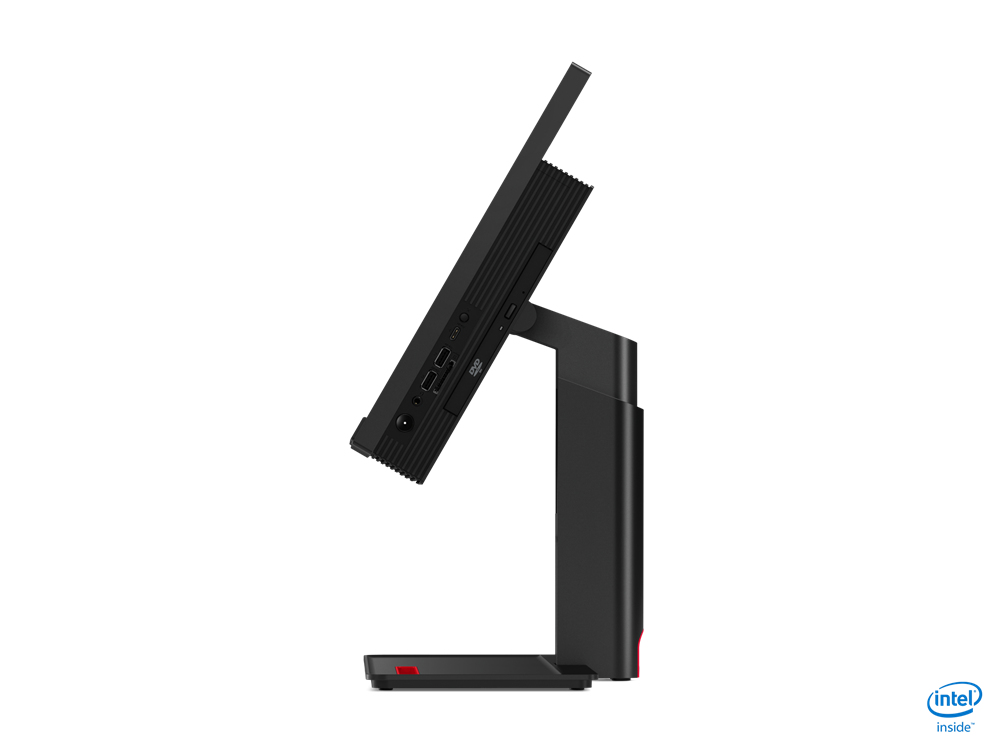

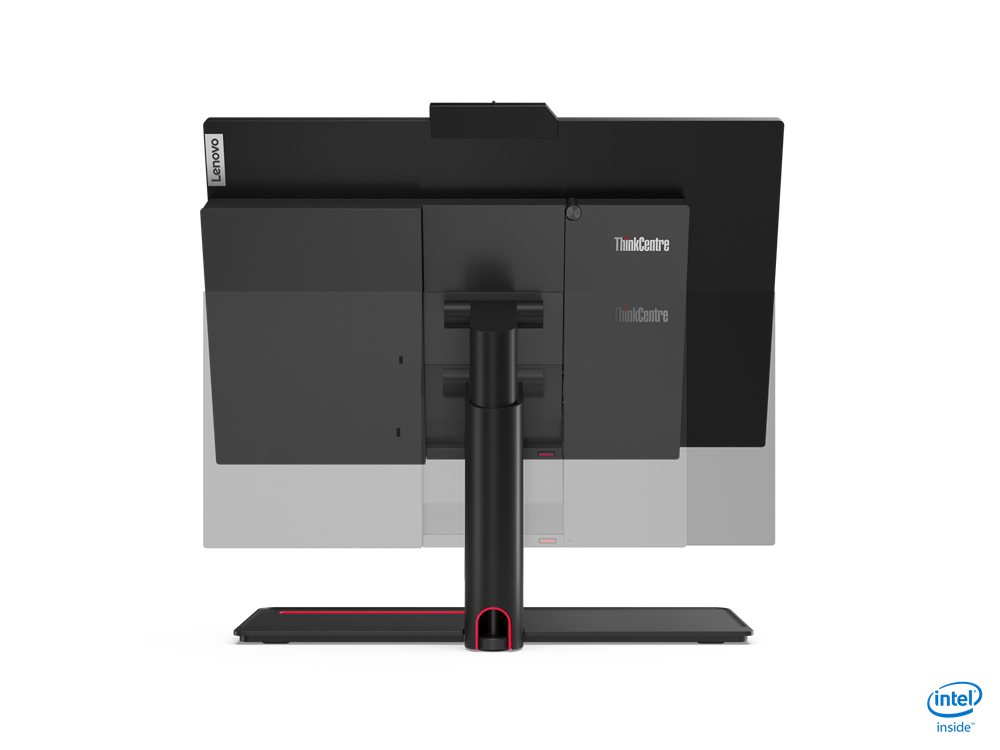

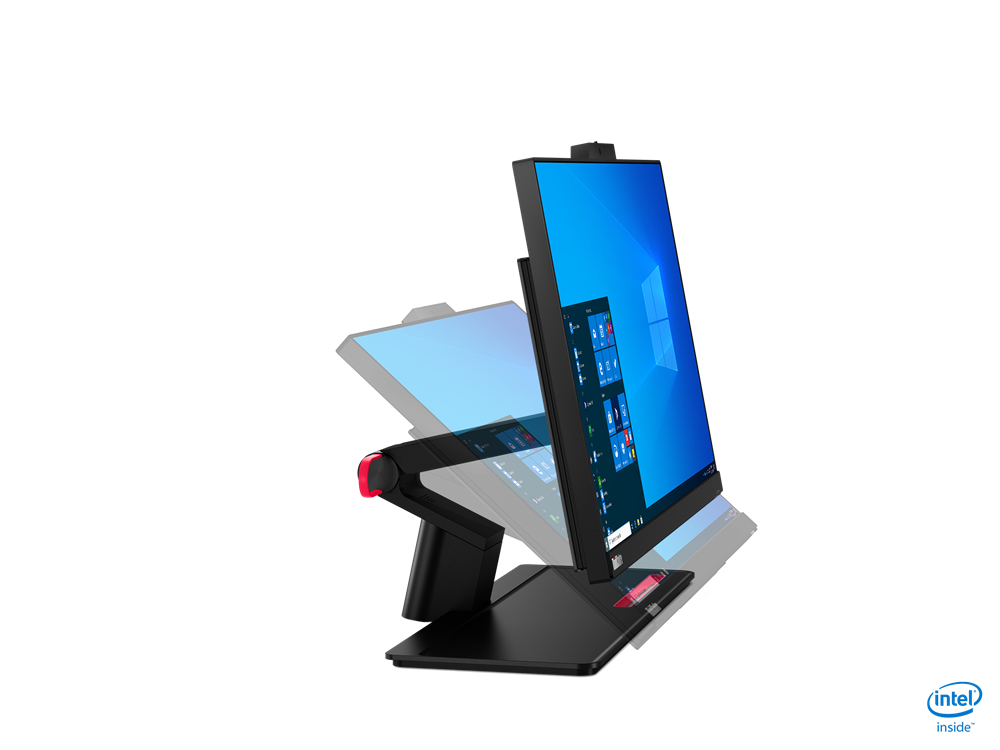

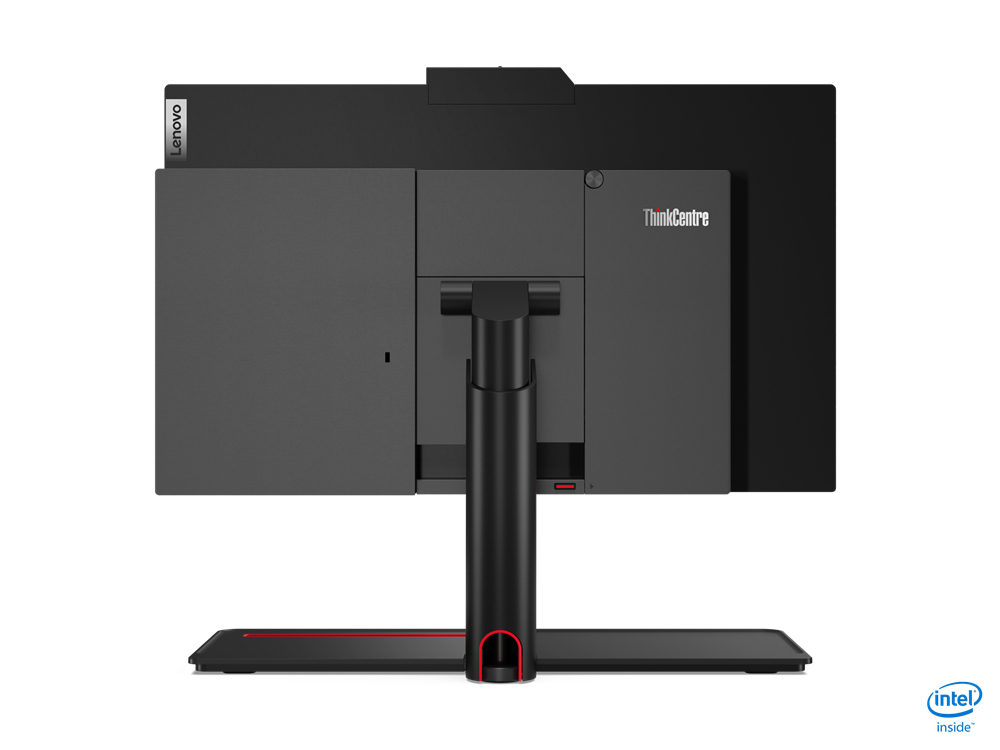

Lenovo ThinkCentre M70a Gen 2

ThinkCentre M70a Gen 2

Model ThinkCentre M70a Gen 2Part no. 11K30002PBEAN 195890303444

98 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: ThinkCentre M70a Gen 2
Part number: 11K30002PB
EAN / UPC: 195890303444
Also known as: Lenovo ThinkCentre M70a Gen 2 Intel® Core™ i5 i5-11500 54.6 cm (21.5") 1920 x 1080 pixels All-in-One workstation 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi

Specifications

98 specifications in 18 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes
RGB colour space	NTSC
Colour gamut	72%

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	11th gen Intel® Core™ i5
Processor model	i5-11500
Processor cores	6
Processor boost frequency	4.6 GHz
Processor frequency	2.7 GHz
Processor cache	12 MB

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	DVD±RW
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card model	Intel UHD Graphics 750

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	2 W
Built-in microphone	Yes
Audio chip	Realtek ALC233
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	Full HD
Privacy camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes

Performance

Specification	Value
Product type	All-in-One workstation
Motherboard chipset	Intel B560
Trusted Platform Module (TPM)	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Operating system language	English, Polish
Windows 11 free upgrade	No

Power

Specification	Value
AC adapter power	135 W

Weight & dimensions

Specification	Value
Width (with stand)	490.1 mm
Depth (with stand)	55.6 mm
Height (with stand)	312.3 mm
Weight (with stand)	8.1 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver, ErP, TCO
Sustainability compliance	Yes

Packaging content

Specification	Value
Mouse connectivity	Wired
Mouse included	Yes
Keyboard connectivity	Wired
Keyboard included	Yes
