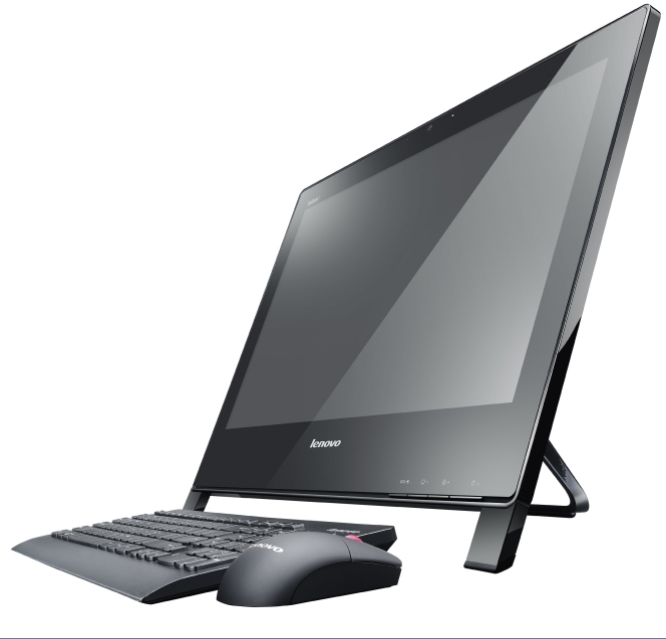

Lenovo ThinkCentre Edge

Model ThinkCentre EdgePart no. 1736A7UEAN 886605664799

139 specifications

Display54.6 cm (21.5")
ProcessorIntel® Core™ i7
Memory4 GB
Storage500 GB
OSWindows 7 Professional
ColourBlack

See all specifications

Overview

Display: 54.6 cm (21.5")
Processor: Intel® Core™ i7
Memory: 4 GB
Storage: 500 GB
OS: Windows 7 Professional
Colour: Black

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: ThinkCentre Edge
Part number: 1736A7U
EAN / UPC: 886605664799
Also known as: Lenovo ThinkCentre Edge Intel® Core™ i7 i7-2600S 54.6 cm (21.5") Touchscreen 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Black

Specifications

139 specifications in 17 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Touchscreen	Yes
Full HD	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	2nd gen Intel® Core™ i7
Processor model	i7-2600S
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	2.8 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
L3 cache	8 MB
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	28
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-2600 Desktop Series
Stepping	D2
Tcase	69.1 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory slots type	SO-DIMM
Memory clock speed	1333 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card memory	1 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1350 MHz
On-board graphics card ID	0x102

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	6 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Optical drive

Specification	Value
Disc types supported	CD, DVD

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
FireWire 800	No
Firewire (IEEE 1394) ports	0
Mini PCI Express slots	1
PS/2 ports quantity	0

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Wall mountable	Yes

Performance

Specification	Value
Motherboard chipset	Intel H65 Express

Software

Specification	Value
Operating system installed	Windows 7 Professional

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52215
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Weight & dimensions

Specification	Value
Width (with stand)	545.2 mm
Depth (with stand)	414.3 mm
Height (with stand)	81 mm
Weight (with stand)	8.4 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Other features

Specification	Value
Graphics card family	AMD
Camera included	Yes
Chassis type	All-in-One
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Ethernet interface type	Gigabit Ethernet
Fibre Channel	No
HDMI	Yes
Parallel ports quantity	0
Power supply	180 W
Storage drive interface	Serial ATA
