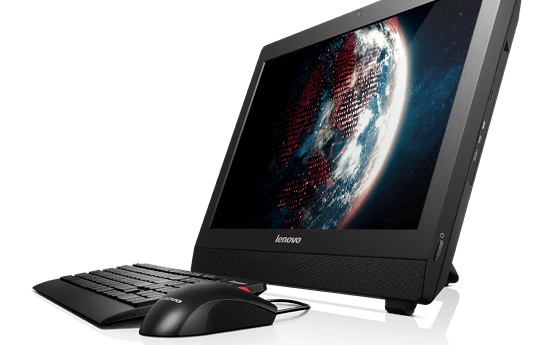

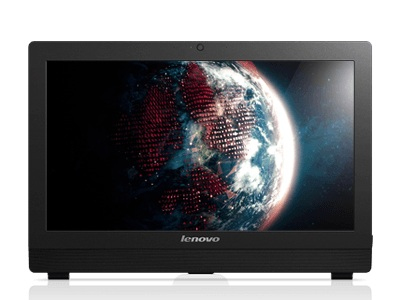

Lenovo S S20 Intel® Celeron® J1800

49.5 cm (19.5") All-in-One PC 2 GB DDR3-SDRAM 500 GB HDD FreeDOS Black

Model S20Part no. F0AY0010LDEAN 888965725028

133 specifications

Display49.5 cm (19.5")
ProcessorIntel® Celeron®
Memory2 GB
Storage500 GB
GraphicsNot available
TypeAll-in-One PC

See all specifications

Overview

Display: 49.5 cm (19.5")
Processor: Intel® Celeron®
Memory: 2 GB
Storage: 500 GB
Graphics: Not available
Type: All-in-One PC

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: S20
Part numbers: F0AY0010LD, F0AY0022AR, F0AY001YMH, F0AY003VLD
EAN / UPC: 888965725028
Also known as: Lenovo S S20 Intel® Celeron® J1800 49.5 cm (19.5") All-in-One PC 2 GB DDR3-SDRAM 500 GB HDD FreeDOS Black

Specifications

133 specifications in 17 groups

Display

Specification	Value
Display diagonal	49.5 cm (19.5")
Full HD	No
LED backlight	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J1800
Processor cores	2
Processor threads	2
Processor boost frequency	2.58 GHz
Processor frequency	2.41 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 1170
64-bit computing	Yes
Thermal Design Power (TDP)	10 W
FSB Parity	No
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0
Processor code	SR1SD
Processor codename	Bay Trail
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor J1000 series for Desktop
Stepping	B3
Tjunction	105 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	688 MHz
On-board graphics card dynamic frequency (max)	792 MHz

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Camera resolution	1280 x 720 pixels

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

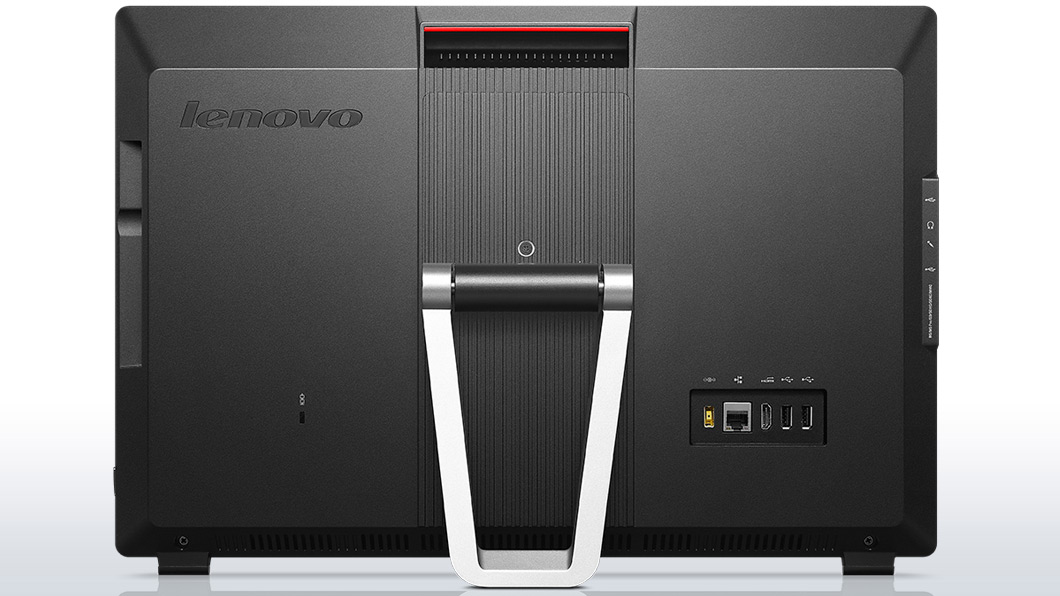

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	FreeDOS

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	78866
Processor package size	25 X 27 mm
Thermal Monitoring Technologies	No

Weight & dimensions

Specification	Value
Width (with stand)	336.3 mm
Depth (with stand)	485.8 mm
Height (with stand)	74.2 mm
Weight (with stand)	3.92 kg
Width (without stand)	485.8 mm
Depth (without stand)	44.2 mm
Height (without stand)	336.3 mm
Package width	162 mm
Package depth	584 mm
Package height	497 mm

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	Yes

Other features

Specification	Value
Autonomy mode	No
Intel® Virtualization Technology (Intel® VT)	VT-x
