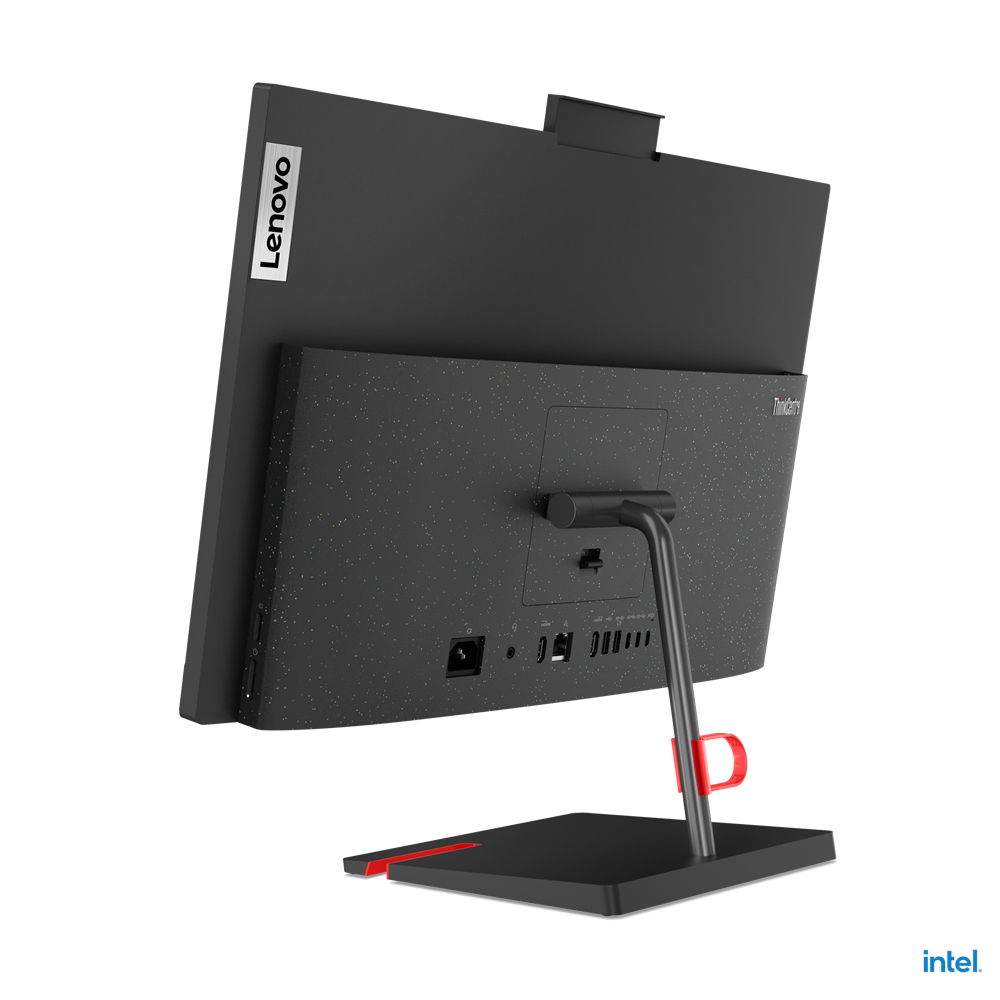

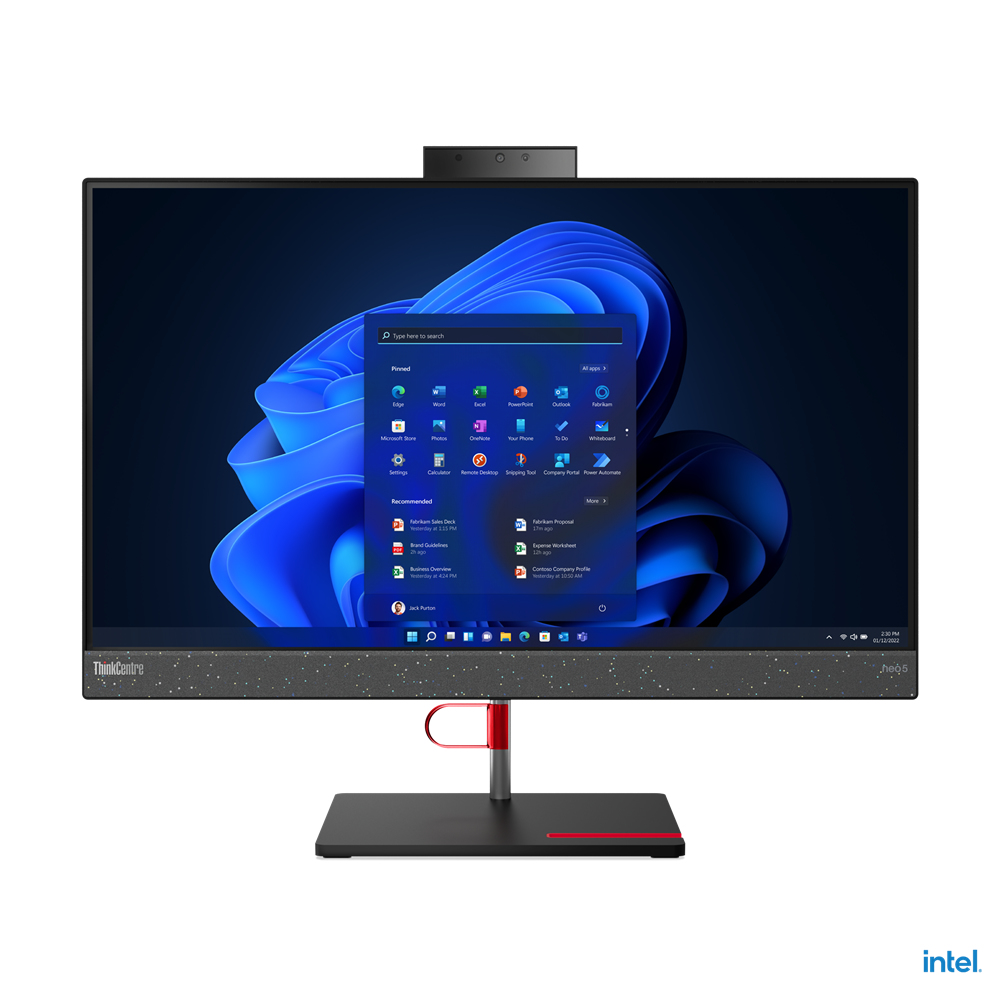

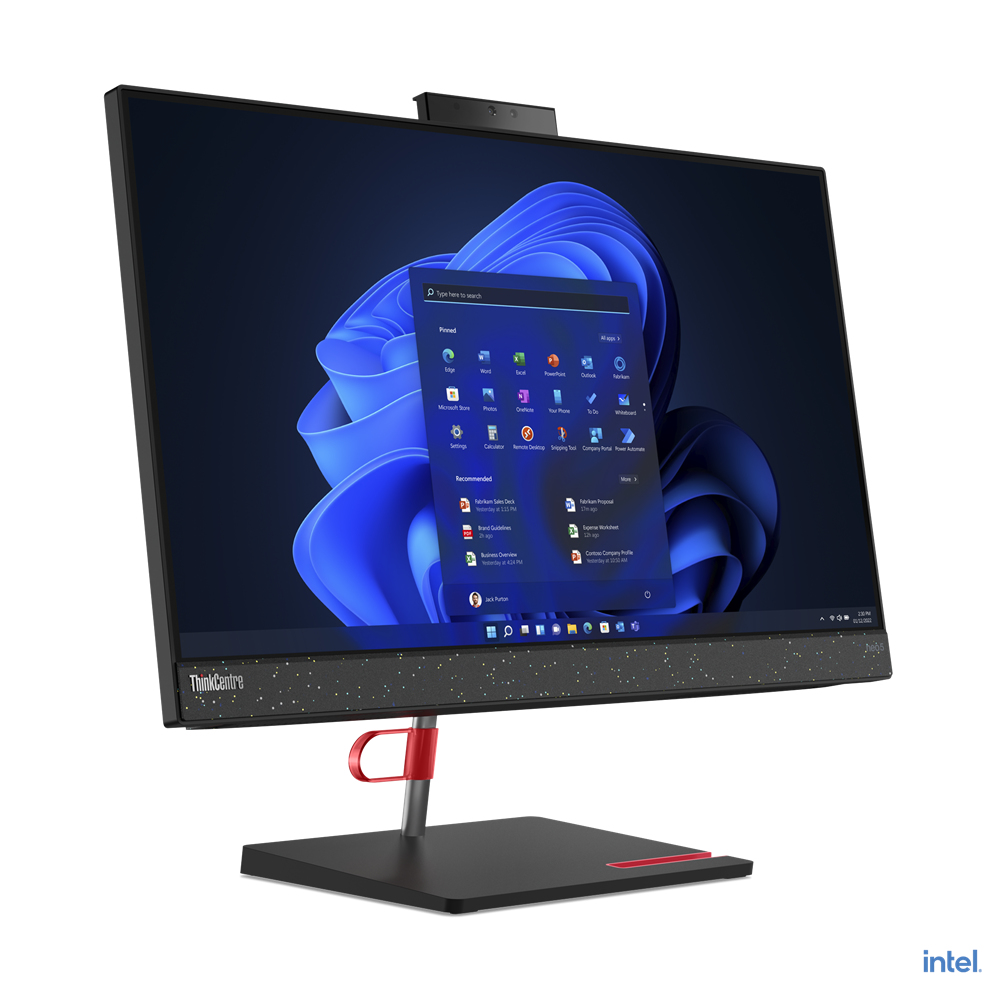

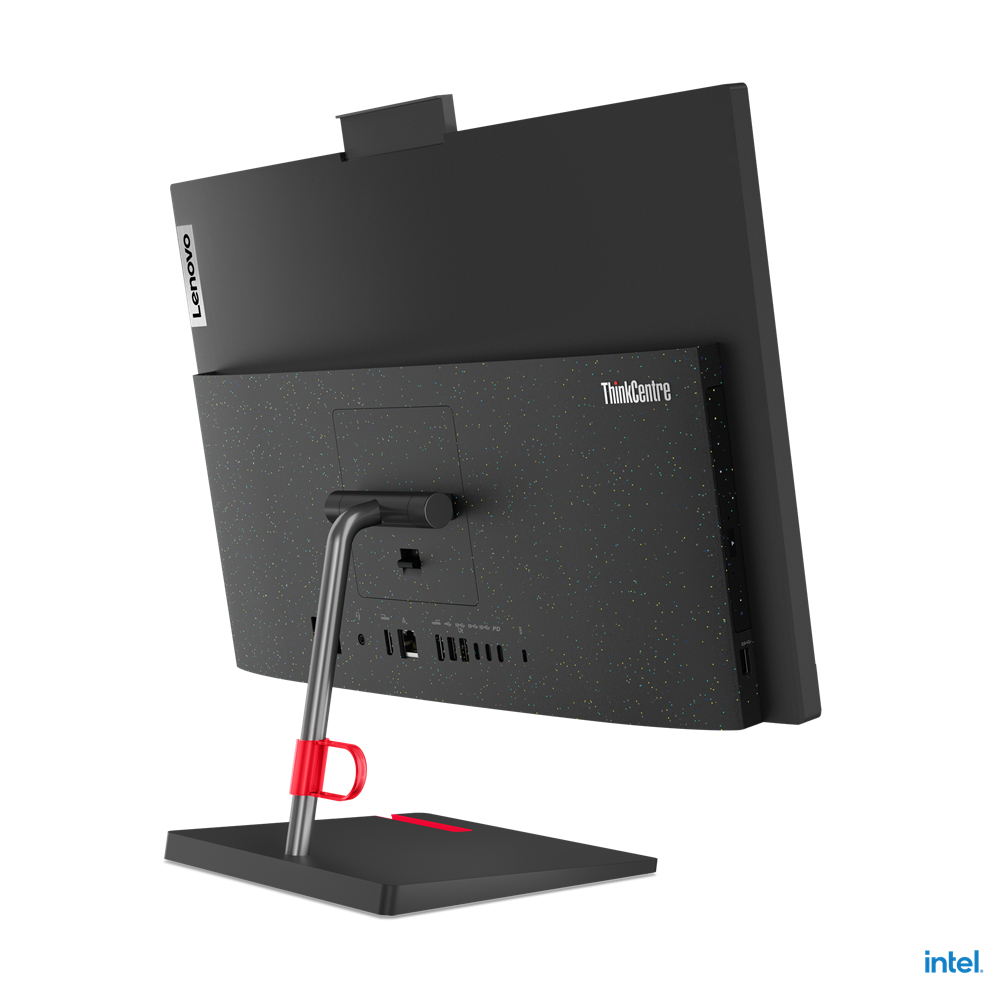

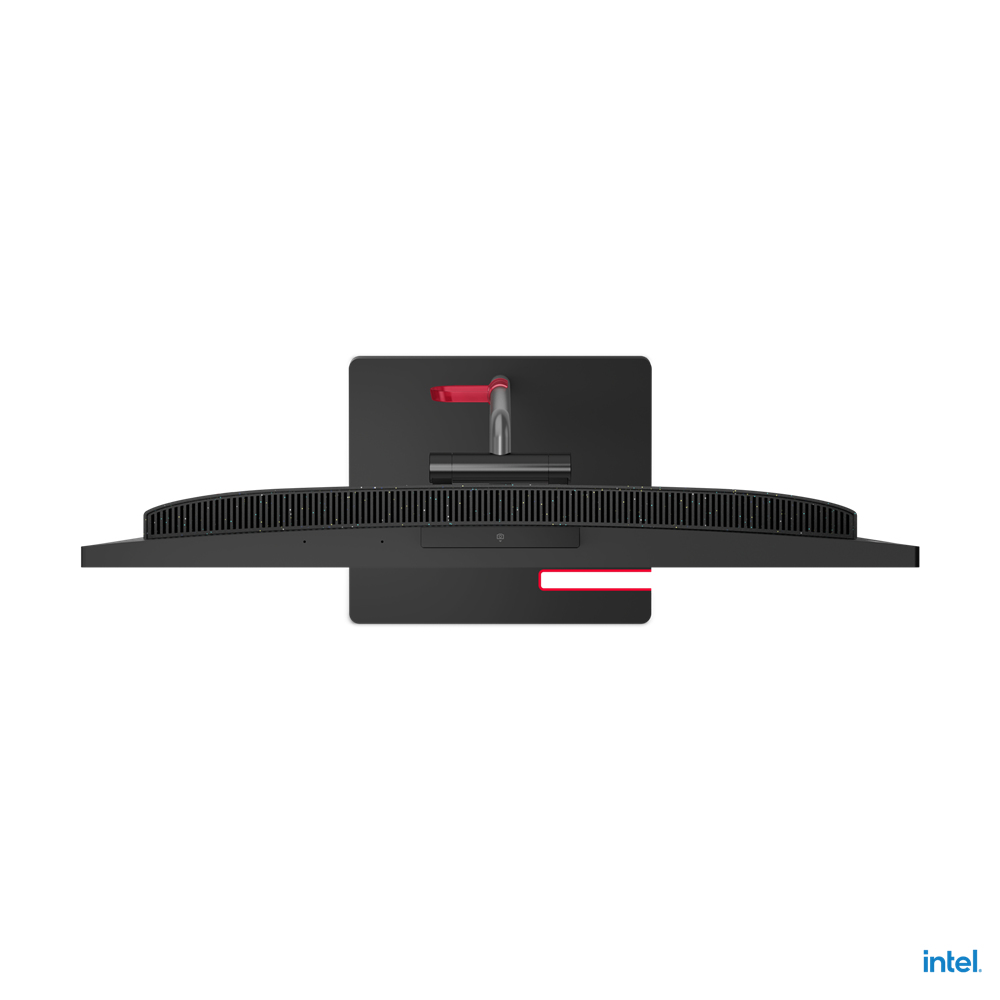

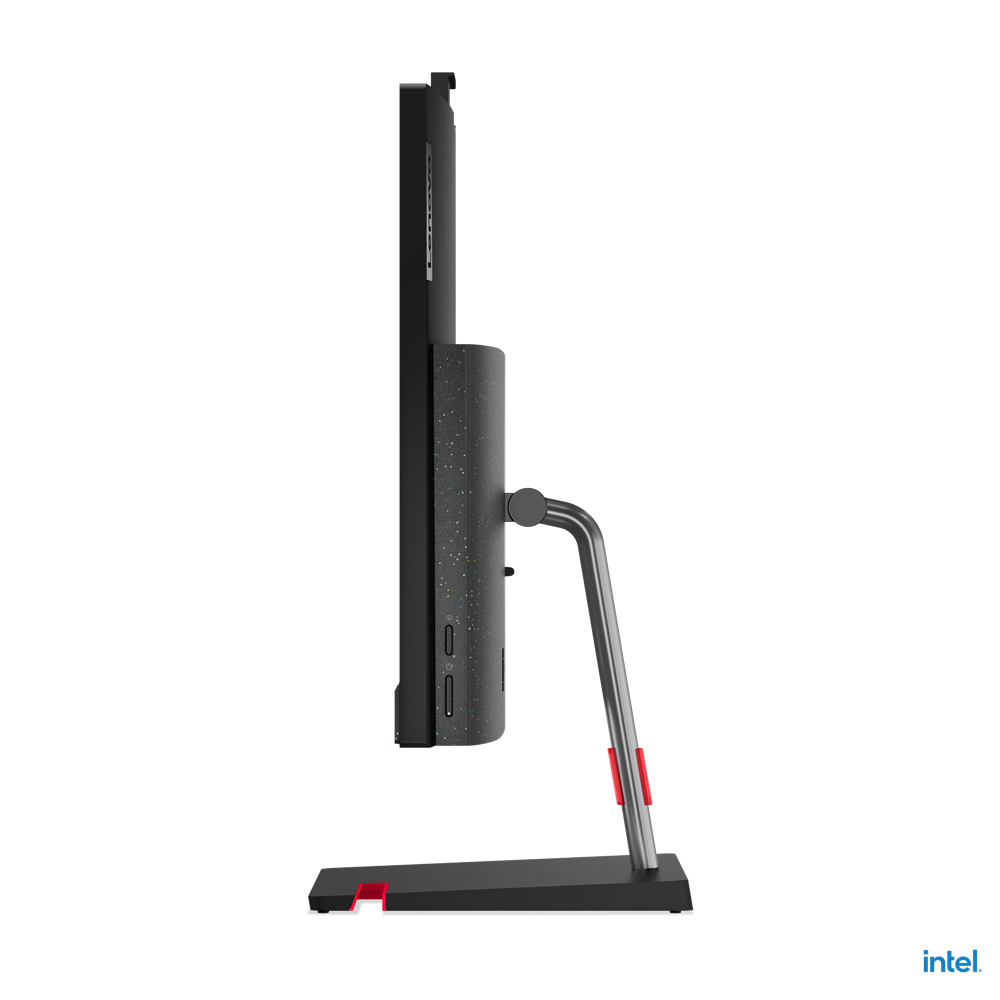

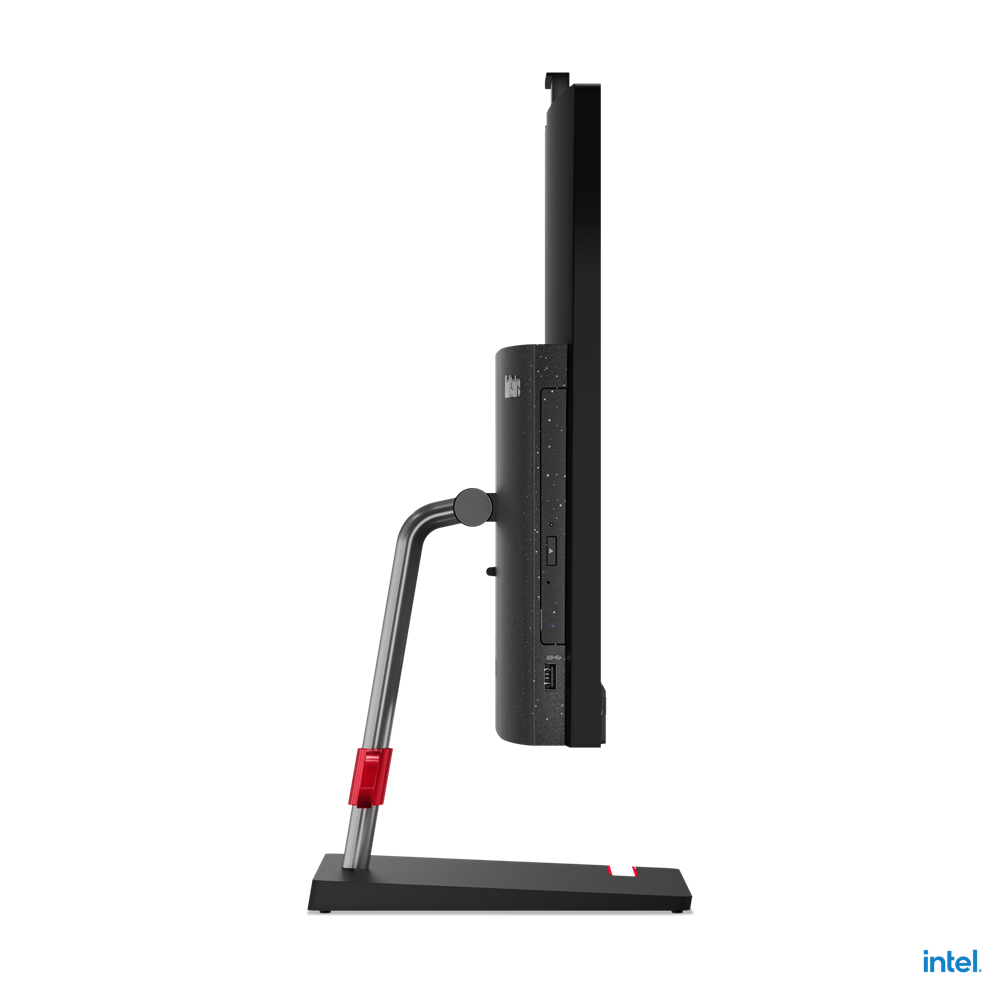

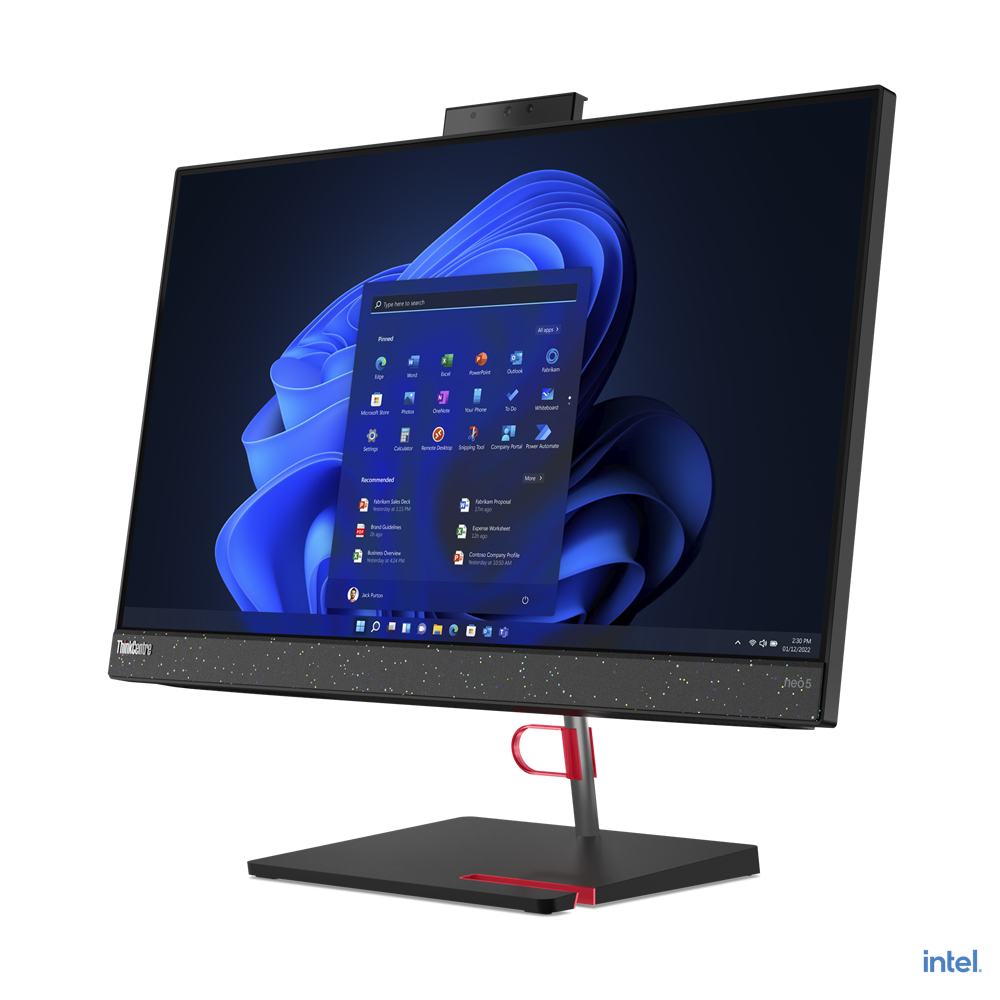

Lenovo neo 50a 24

neo 50a 24

Model neo 50a 24Part no. 12B800BXSPEAN 196804191270

101 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory16 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 16 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: neo 50a 24
Part numbers: 12B800BXSP, 12B8009LMZ, 12B800A1MZ, 12B80006SP, 12B8000MSP, 12B90044MZ +7 more
EAN / UPC: 196804191270, 196802635110, 196802636063, 196801242814 +9 more
Also known as: Lenovo ThinkCentre neo 50a 24 Intel® Core™ i5 i5-12500H 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 16 GB DDR5-SDRAM 256 GB SSD Windows 11 Pro Wi-Fi 6 (802

Specifications

101 specifications in 18 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes
RGB colour space	NTSC
Colour gamut	72%
Tilt adjustment	Yes
Tilt angle range	-5 - 18°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-12500H
Processor cores	12
Processor boost frequency	4.5 GHz
Processor frequency	2.5 GHz
Efficient-core base frequency	1.8 GHz
Efficient-core boost frequency	3.3 GHz
Processor cache	18 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	16 GB
Memory clock speed	4800 MHz

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	DVD±RW
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in microphone	Yes
Audio chip	Realtek ALC274-CG
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	5 MP

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

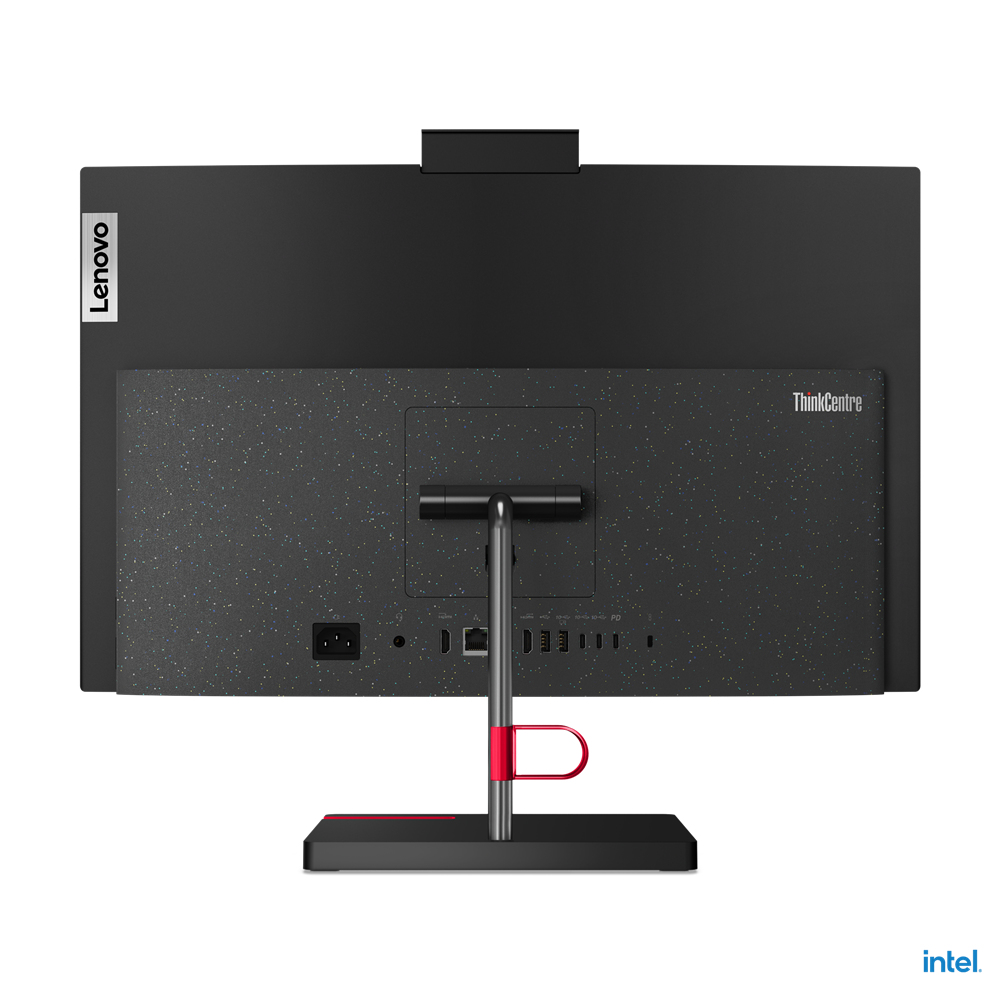

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
HDMI ports quantity	2
HDMI version	1.4/2.1
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Black
Colour name	Raven Black
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
BIOS password	Yes
Placement supported	Horizontal

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Operating system language	German, Dutch, English, French, Italian

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	541 mm
Depth (with stand)	220 mm
Height (with stand)	482 mm
Weight (with stand)	7.65 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
