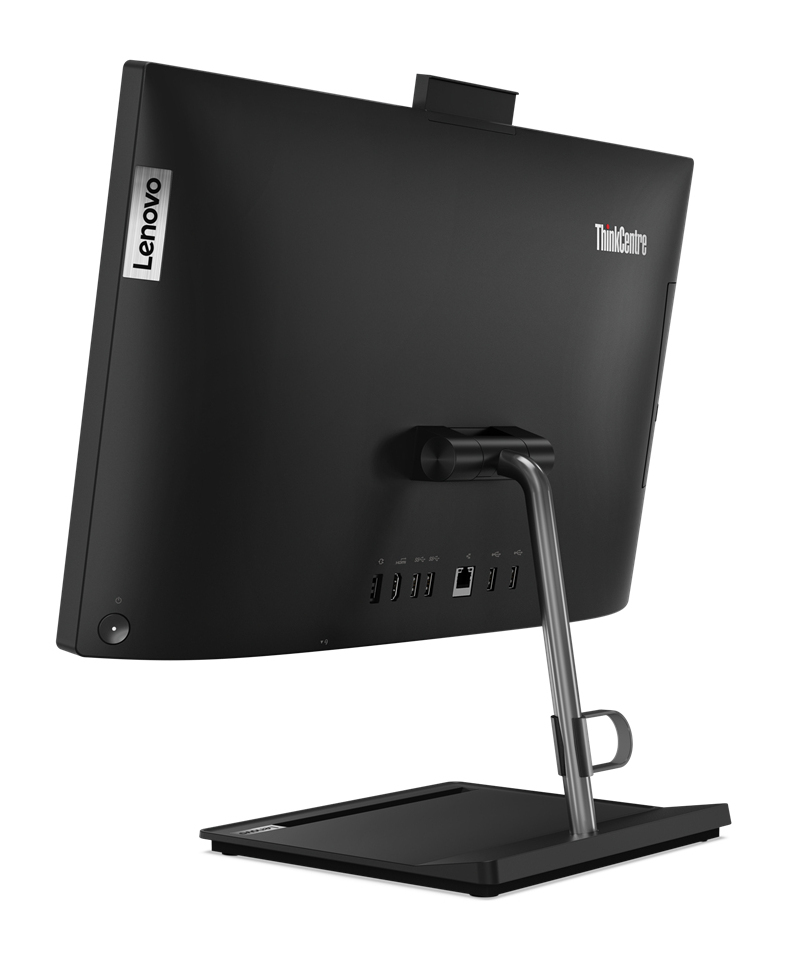

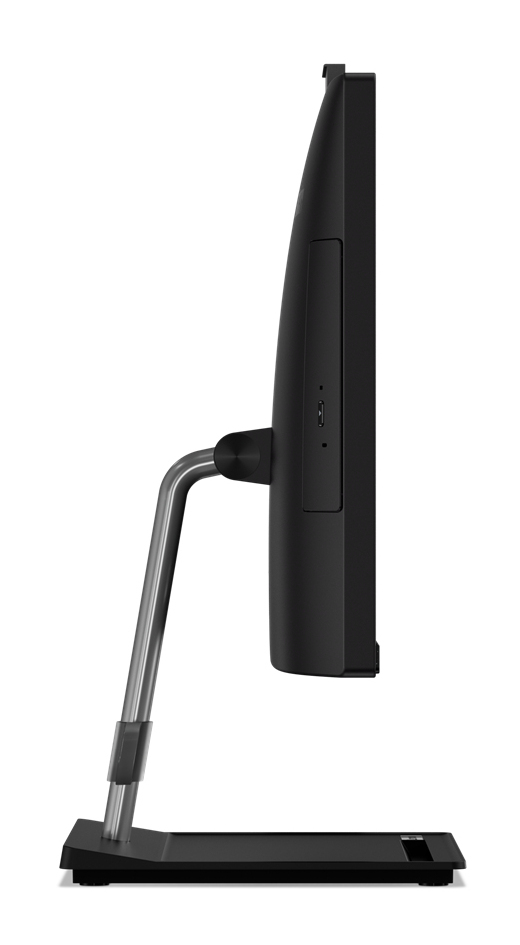

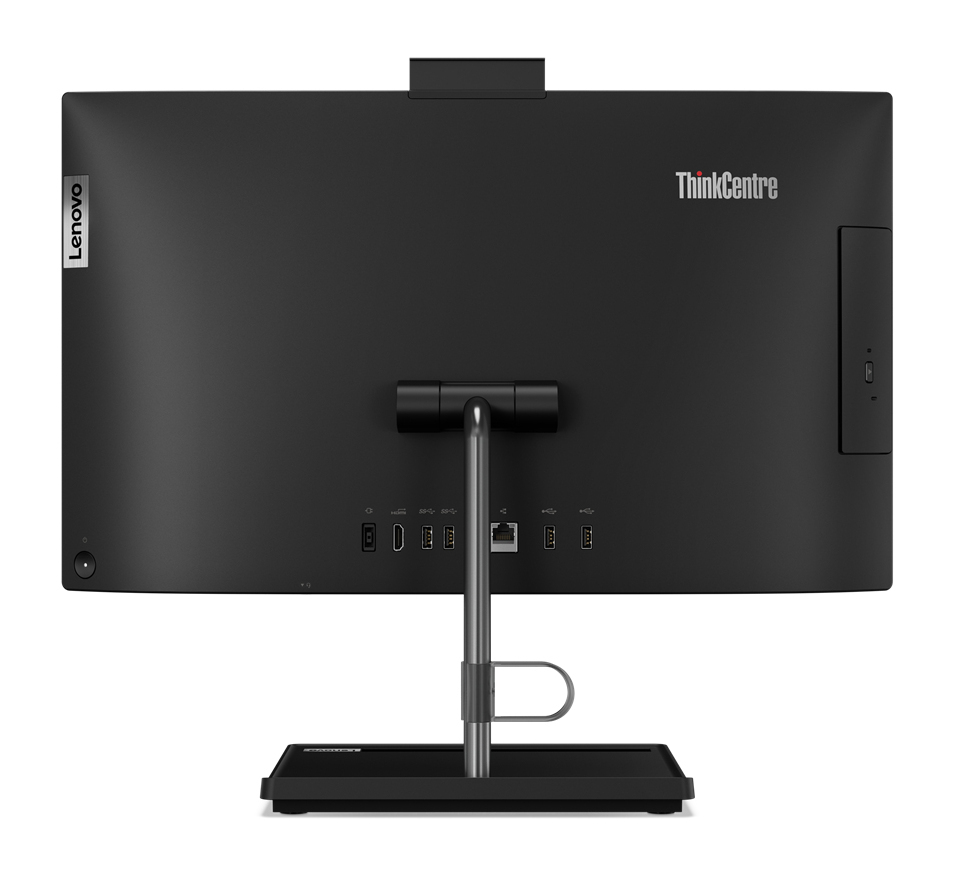

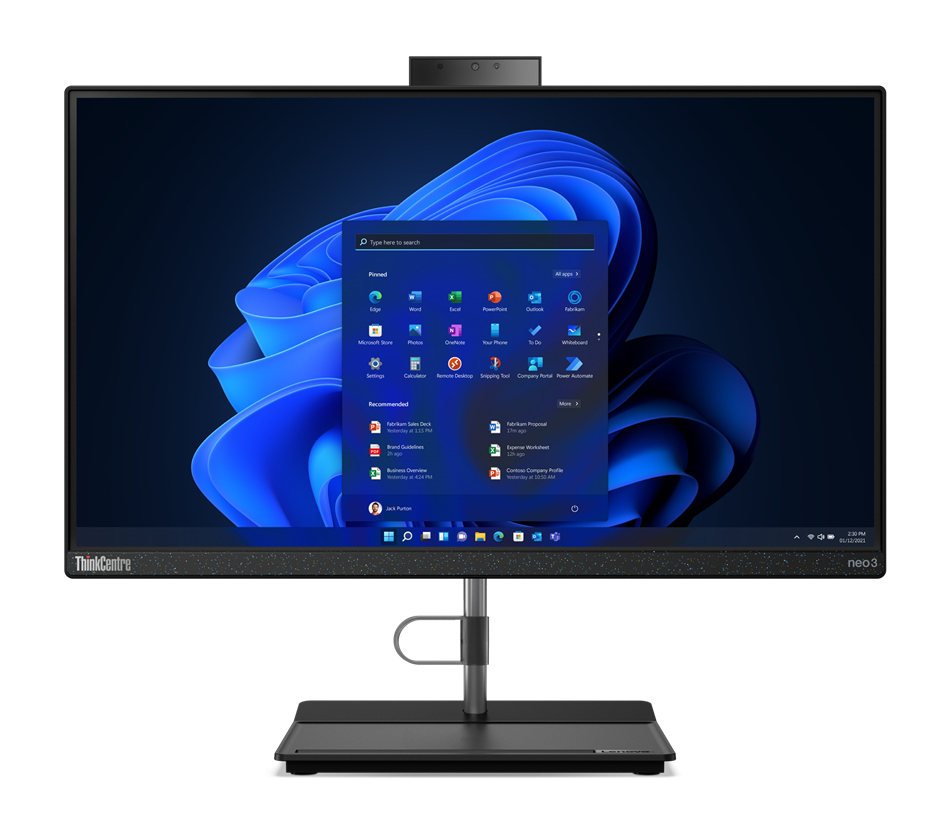

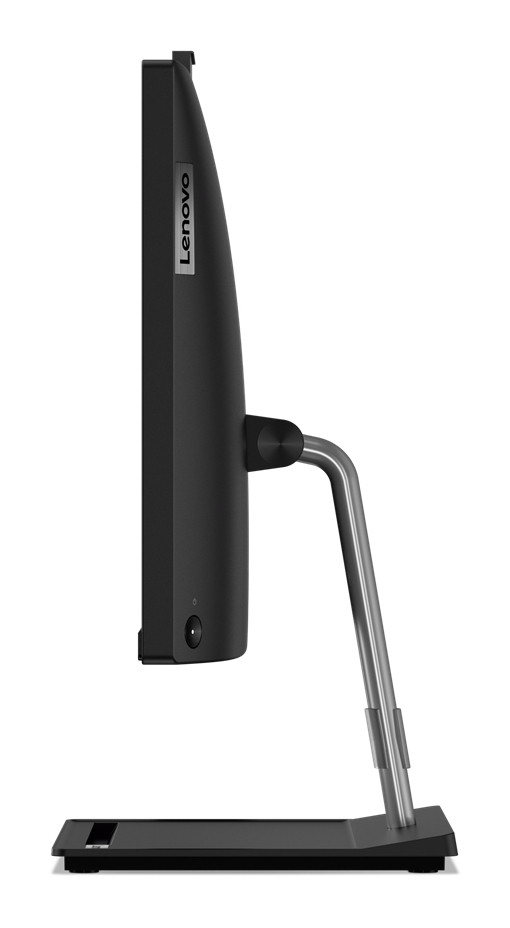

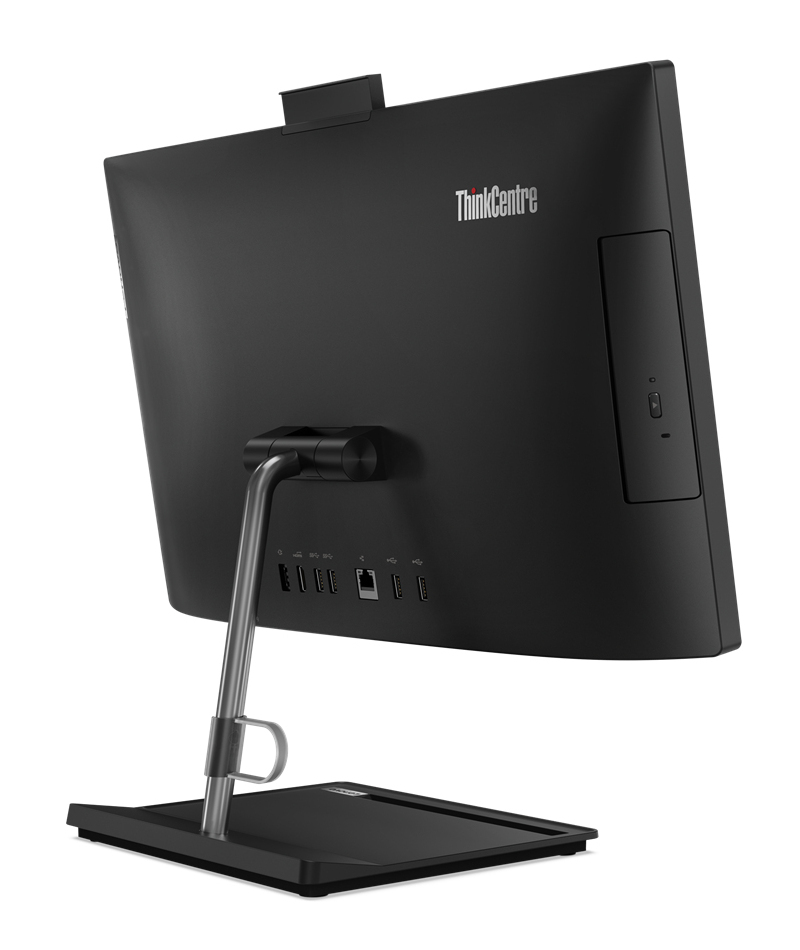

Lenovo neo 30a 22

neo 30a 22

Model neo 30a 22Part no. 12B3005GPGEAN 196804412665

89 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: neo 30a 22
Part numbers: 12B3005GPG, 12B1001CSP, 12B1001CPG, 12B3005USP
EAN / UPC: 196804412665, 196379710432, 196379708163, 196804409078
Also known as: Lenovo ThinkCentre neo 30a 22 Intel® Core™ i5 i5-1240P 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro Wi-Fi 6 (802.1

Specifications

89 specifications in 19 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model	i5-1240P
Processor cores	12
Processor boost frequency	4.4 GHz
Configurable TDP-down	20 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz
Memory layout (slots x size)	1 x 8 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	DVD±RW
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in microphone	Yes
Audio chip	Realtek ALC256

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	HD

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity	1
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Black
Colour name	Raven Black

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel SoC
Trusted Platform Module (TPM)	Yes
Placement supported	Horizontal

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	90 W

Weight & dimensions

Specification	Value
Width (with stand)	490.3 mm
Depth (with stand)	185 mm
Height (with stand)	405.4 mm
Weight (with stand)	5.7 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Keyboard language	Spanish
