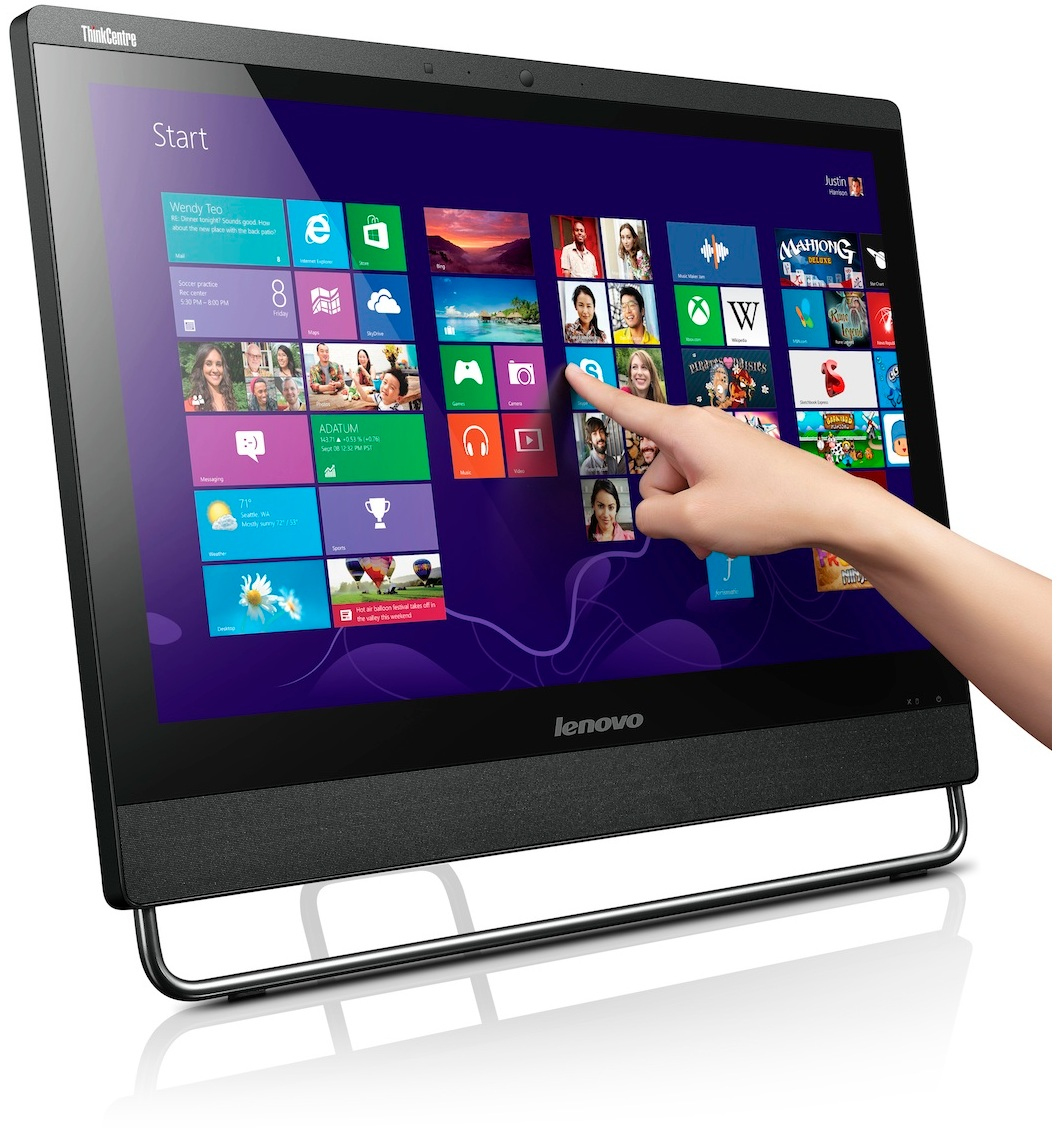

Lenovo ThinkCentre M93z Intel® Core™ i5 i5-4570S

58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 500 GB Windows 8 Pro Black

Model M93zPart no. 10AD000BUKEAN 8879423182608

148 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
TypeAll-in-One PC

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Type: All-in-One PC

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: M93z
Part numbers: 10AD000BUK, 10AD000CGE, 10AF0009GE, 10AF000AFR, 10AD000DUK, 10AF0009UK +34 more
EAN / UPC: 8879423182608, 887942317324, 8879423173248, 887942318468 +52 more
Also known as: Lenovo ThinkCentre M93z Intel® Core™ i5 i5-4570S 58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 500 GB Windows 8 Pro Black

Specifications

148 specifications in 17 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4570S
Processor cores	4
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	2.9 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	LGA 1150 (Socket H3)
64-bit computing	Yes
Thermal Design Power (TDP)	65 W
Bus type	QPI
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of QPI links	1
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR14J
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4500 Desktop Series
Stepping	C0
Tcase	71.35 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	500 GB
Number of storage drives installed	1
HDD capacity	500 GB
HDD speed	5400 RPM
Optical drive type	DVD±RW

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	6 W
Audio system	HD

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Microphone in	Yes
Combo headphone/mic port	Yes
Mini PCI Express slots	1

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® Q87
Trusted Platform Module (TPM)	Yes
HDD user password	Yes

Software

Specification	Value
Operating system installed	Windows 8 Pro

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Connect Technology	No
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75044
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 90%

Certificates

Specification	Value
Certification	GS, CB, CCC, NOM, SABS, EU, UL/cUL, TCO, WEEE, TUV, FCC, VCCI, C-tick, KC, MIC

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Quick start guide	Yes

Other features

Specification	Value
3D	No
SmartCard slot	No
Storage drive interface	Serial ATA III
Intel segment tagging	Enterprise, Professional
