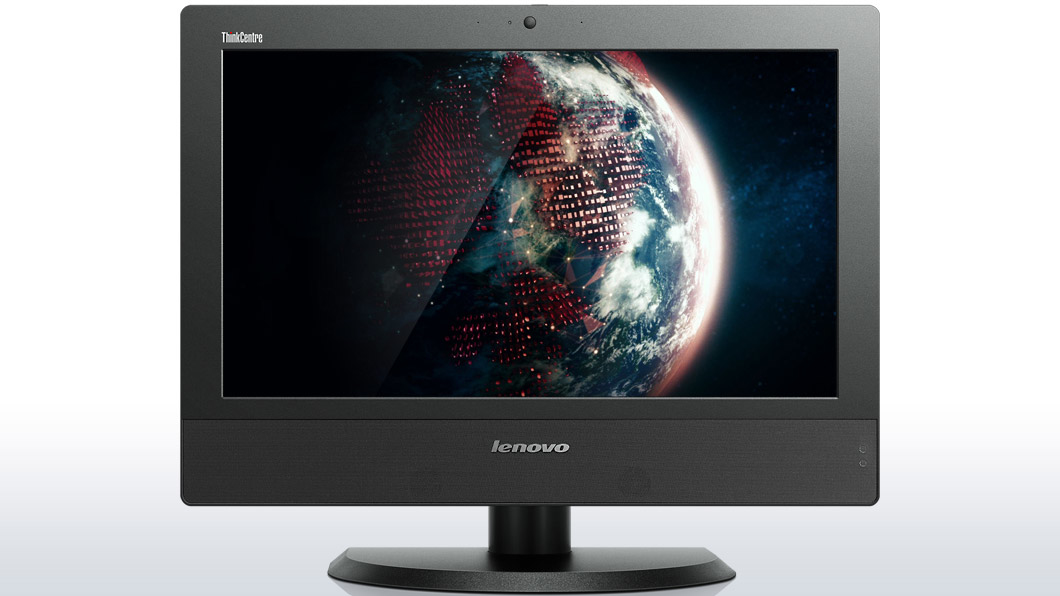

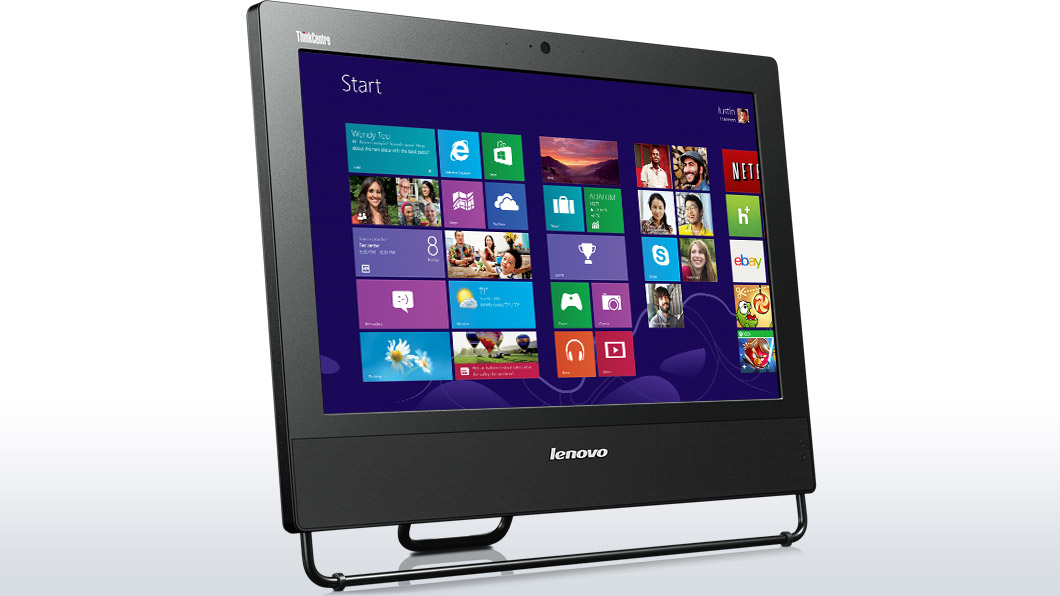

Lenovo ThinkCentre M73z Intel® Core™ i7 i7-4770S

50.8 cm (20") 1600 x 900 pixels All-in-One PC 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional Black

Model M73zPart no. 10BB001DEUEAN 888228590820

175 specifications

Display50.8 cm (20")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 50.8 cm (20")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: M73z
Part numbers: 10BB001DEU, 10BB0000US, 10BB000EUS, 10BB000FUS, 10BB000GUS, 10BC000LMX +34 more
EAN / UPC: 888228590820, 887942062453, 8879420624538, 887942716813 +56 more
Also known as: Lenovo ThinkCentre M73z Intel® Core™ i7 i7-4770S 50.8 cm (20") 1600 x 900 pixels All-in-One PC 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional Black

Specifications

175 specifications in 20 groups

Display

Specification	Value
Display diagonal	50.8 cm (20")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
Full HD	No
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	250 cd/m²
Multi-touch	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4770S
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.1 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Processor socket	LGA 1150 (Socket H3)
64-bit computing	Yes
Thermal Design Power (TDP)	65 W
Bus type	QPI
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of QPI links	1
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor code	SR14H
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Desktop series
Stepping	C0
Tcase	71.35 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 8 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA III
Hybrid-HDD cache type	Flash
Hybrid-HDD cache memory	8 GB
Optical drive type	DVD±RW
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	4 W
Built-in microphone	Yes
Built-in subwoofer	No
Audio system	HD

Camera

Specification	Value

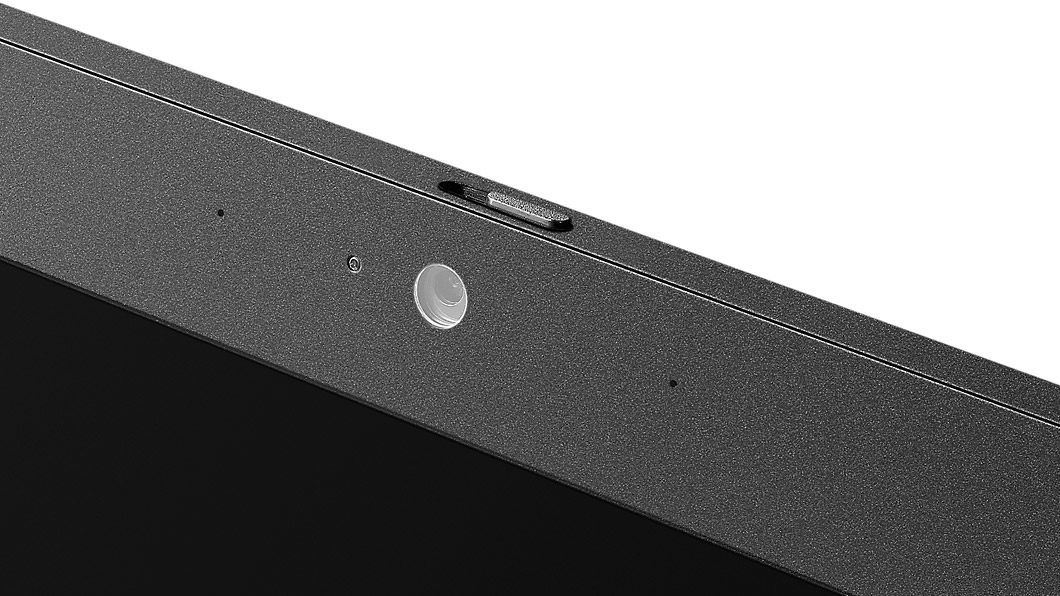

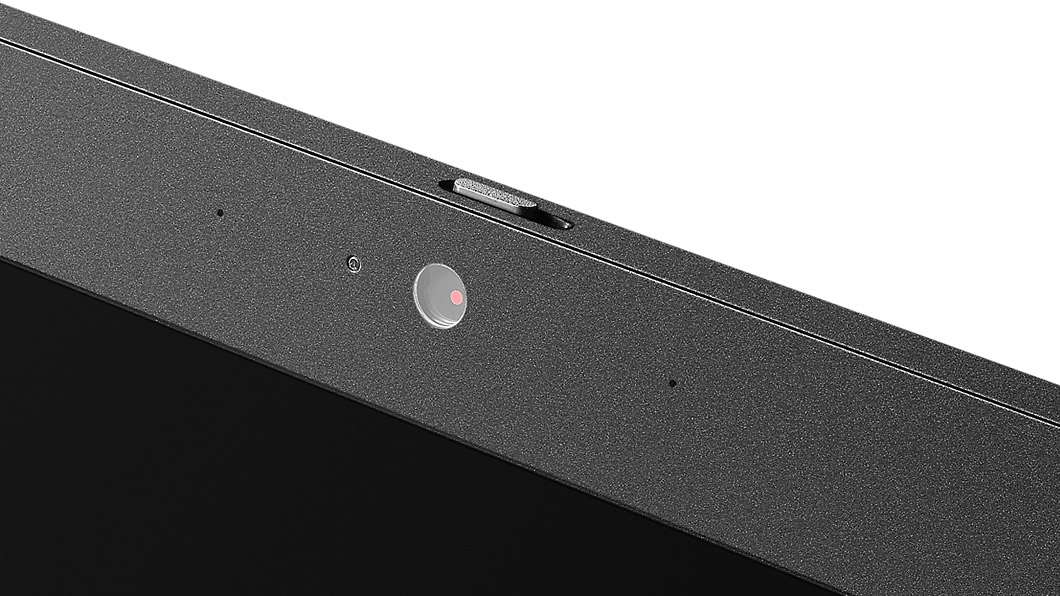

Built-in camera	Yes
Total megapixels	1 MP

Optical drive

Specification	Value
Optical drive interface	SATA
Disc types supported	DVD

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

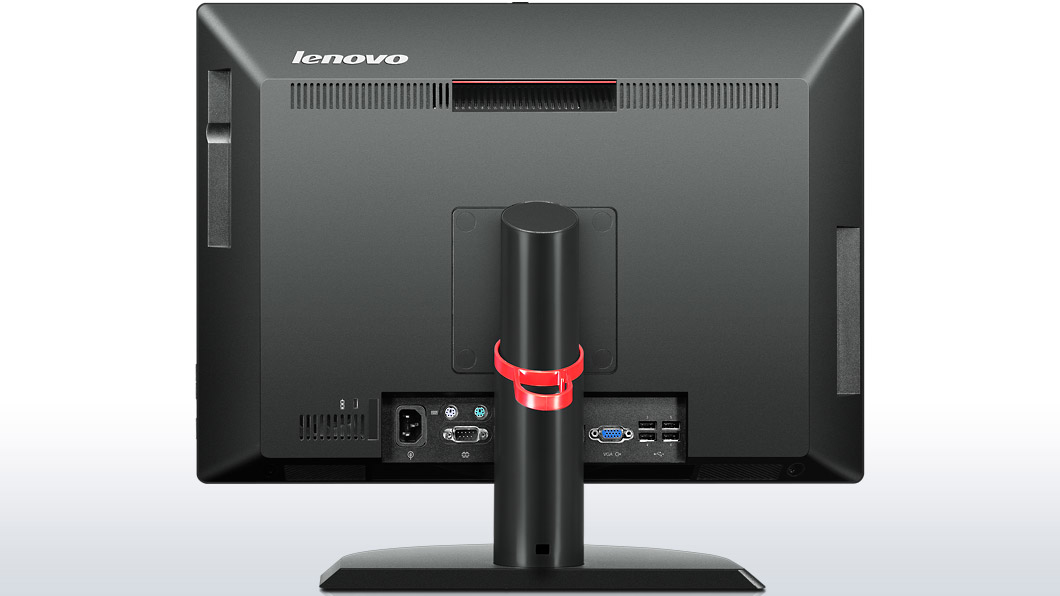

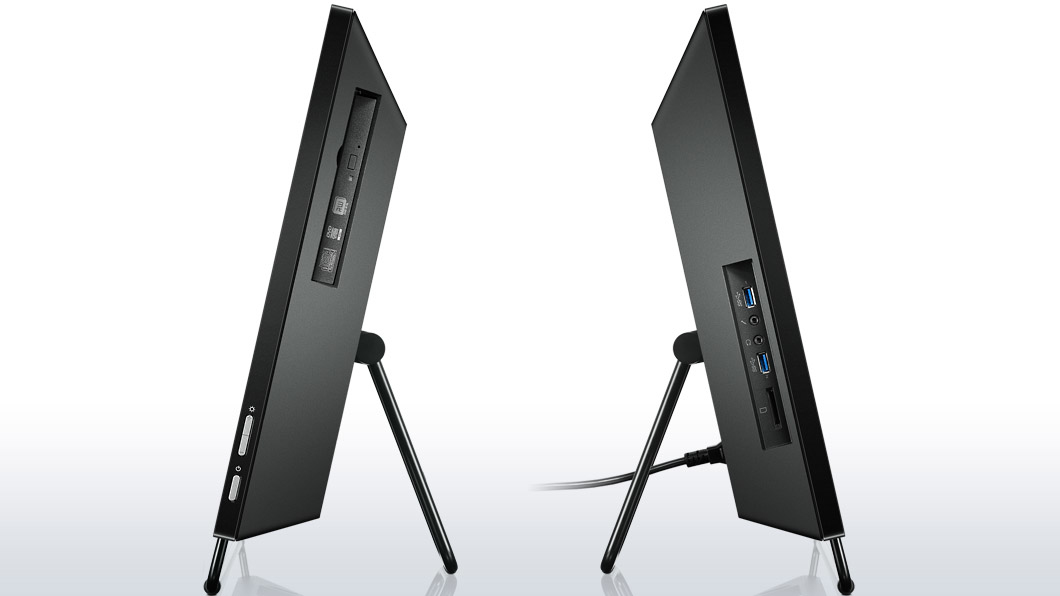

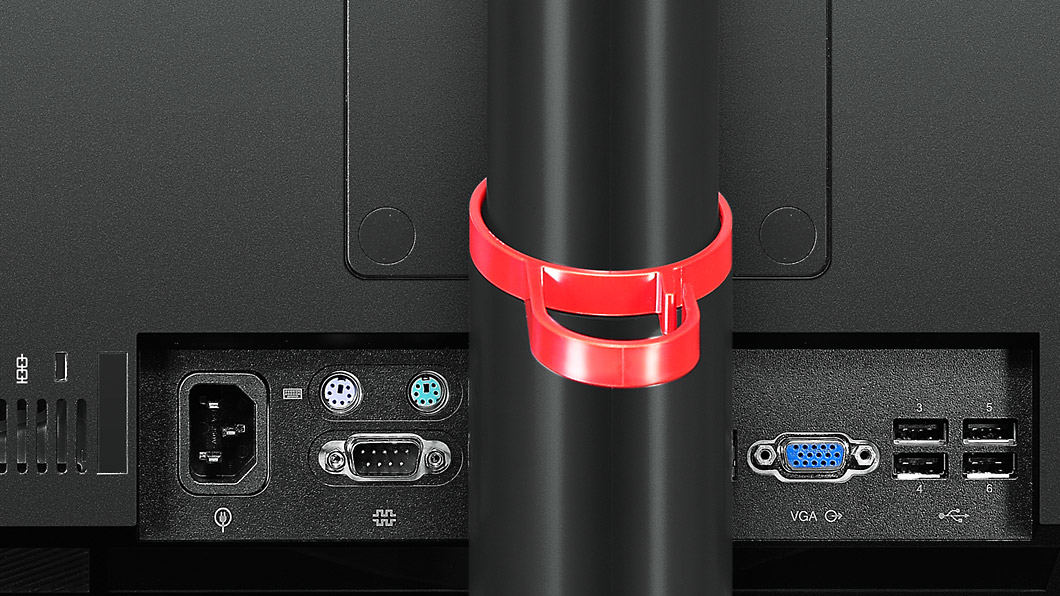

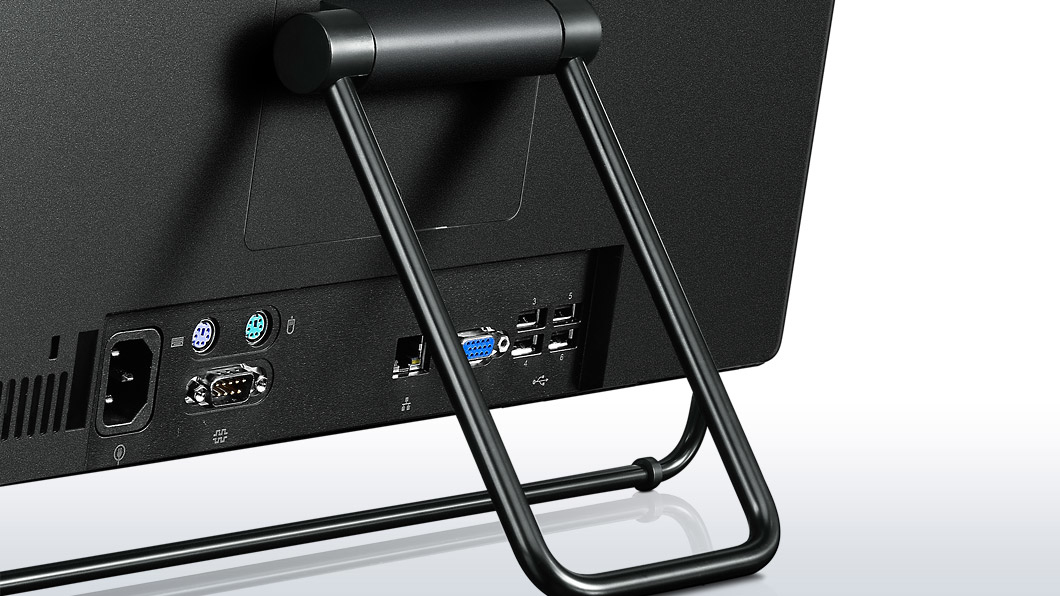

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
FireWire 800	No
PS/2 ports quantity	2
Serial ports quantity	1
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Cable lock slot type	Kensington
Wall mountable	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H81
Trusted Platform Module (TPM)	Yes
HDD user password	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Trial software	Norton Internet Security
Bundled software	ThinkVantage Product Recovery ThinkVantage System Update ThinkVantage Communication Utility ThinkVantage Device Experience ThinkVantage AutoLock Desktop Power Manager View Management Utility Lenovo Cloud Storage by SugarSync Lenovo Solution Center Lenovo Message Center Plus Norton Adobe Reader Skype

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75124
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C

Power

Specification	Value
AC adapter power	150 W

Weight & dimensions

Specification	Value
Width (with stand)	506 mm
Depth (with stand)	249.8 mm
Height (with stand)	432.9 mm
Weight (with stand)	8.84 kg

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	GREENGUARD, EuP 2013

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

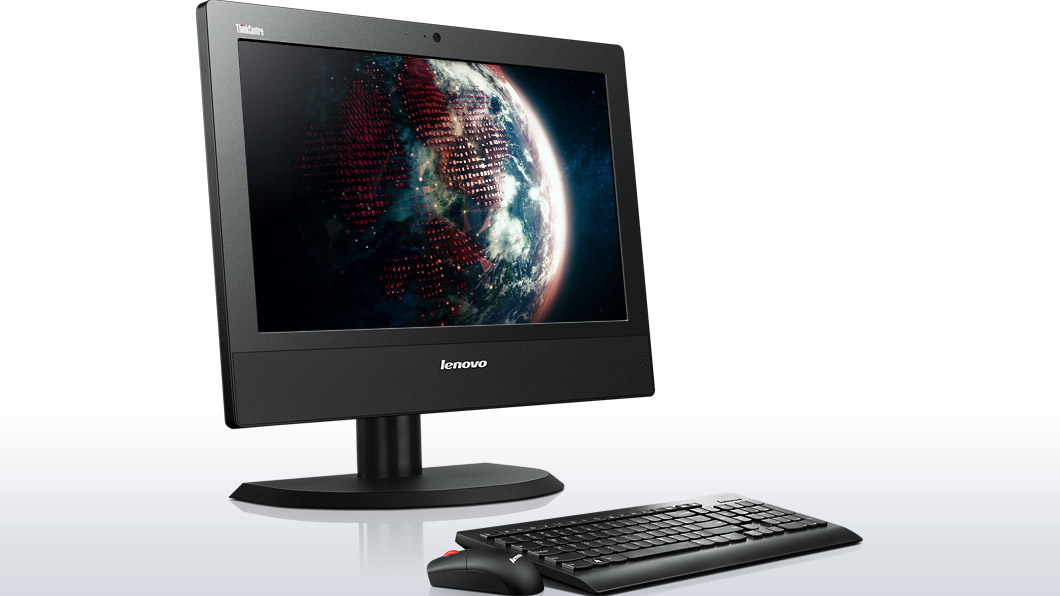

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	Yes
Quick start guide	Yes

Other features

Specification	Value
Storage drive interface	Serial ATA III
Supported HDD interfaces	Serial ATA III
Intel segment tagging	Enterprise, Professional
