M72z Intel® Core™ i5 i5-3470S

50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Black

Model M72zPart no. RDSA6SPEAN 887456123602

143 specifications

Overview

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: M72z
Part numbers: RDSA6SP, 3548B1U, 3548B3U, 3554E2U, 3554E3U, 3558A5U +34 more
EAN / UPC: 887456123602, 887037772427, 887037772519, 887037774377 +56 more
Also known as: Lenovo M72z Intel® Core™ i5 i5-3470S 50.8 cm (20") 1600 x 900 pixels 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Black

143 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3470S
Processor cores	4
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	2.9 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	65 W
Bus type	DMI
CPU multiplier (bus/core ratio)	29
FSB Parity	No
PCI Express configurations	1x16, 2x8
PCI Express slots version	3.0
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3400 Desktop series
Tcase	69.1 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA II
Optical drive type	DVD±RW
Card reader integrated	Yes

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x152

Specification	Value
Built-in camera	Yes
Total megapixels	2 MP

Specification	Value
Optical drive interface	SATA
LightScribe	No

Specification	Value

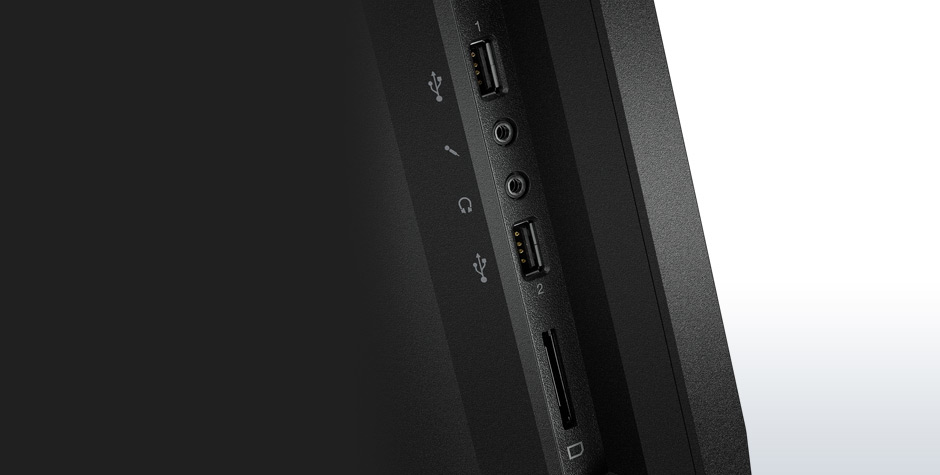

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1
DVI port	No
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Specification	Value
Motherboard chipset	Intel® H61 Express
Trusted Platform Module (TPM)	Yes

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	68315
Processor package size	37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
