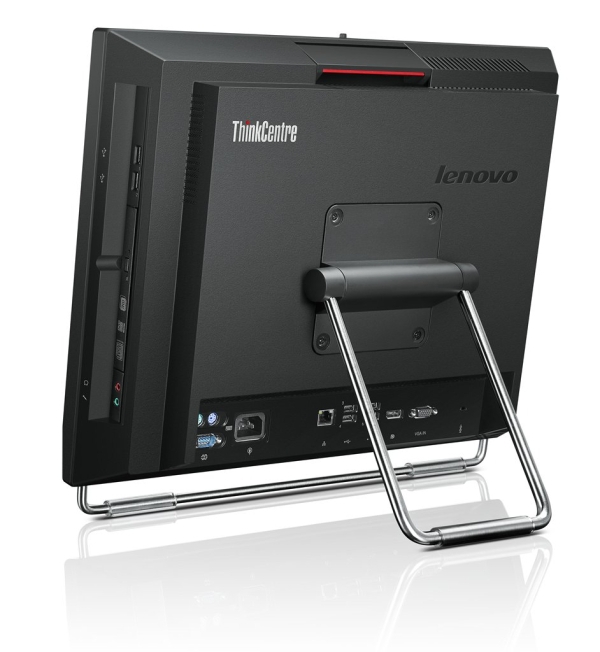

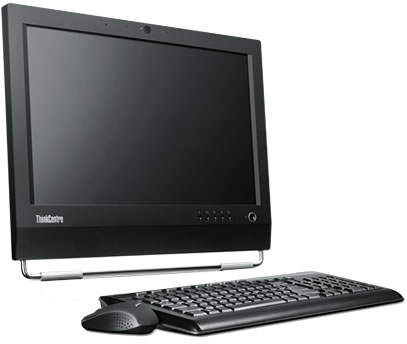

Lenovo ThinkCentre M70z Intel® Core™ i3 i3-550

48.3 cm (19") 1440 x 900 pixels Touchscreen 2 GB DDR3-SDRAM 500 GB Windows 7 Professional Black

Model M70zPart no. 7597E7SEAN 645743494404

134 specifications

Overview

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: M70z
Part numbers: 7597E7S, 7597A35
EAN / UPC: 645743494404
Also known as: Lenovo ThinkCentre M70z Intel® Core™ i3 i3-550 48.3 cm (19") 1440 x 900 pixels Touchscreen 2 GB DDR3-SDRAM 500 GB Windows 7 Professional Black

134 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3
Processor model	i3-550
Processor cores	2
Processor threads	4
Processor frequency	3.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor socket	LGA 1156 (Socket H)
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	73 W
Bus type	DMI
CPU multiplier (bus/core ratio)	24
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	382 M
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processing Die size	81 mm²
Processor code	SLBUD
Processor codename	Clarkdale
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-500 Desktop Series
Stepping	K0
Tcase	72.6 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
DVI port	No
Headphone outputs	1
Microphone in	Yes
Firewire (IEEE 1394) ports	0
Mini PCI Express slots	1

Specification	Value
Operating system installed	Windows 7 Professional

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	48505
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Specification	Value
Graphics card family	Intel
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Compatible operating systems	Windows 7 Professional Windows 7 Home Premium Windows 7 Home Basic Windows 7 Starter
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Dimensions (WxDxH)	470 x 111 x 396 mm
Display	LCD
Display included	Yes
Mac compatibility	No
Networking features	Gigabit Ethernet
Number of 3.5" bays	1
Number of processors installed	1
Parallel ports quantity	0
Platform	PC
Power supply	150 W
Speakers	monitor built-in
Intel segment tagging	Enterprise, Professional
