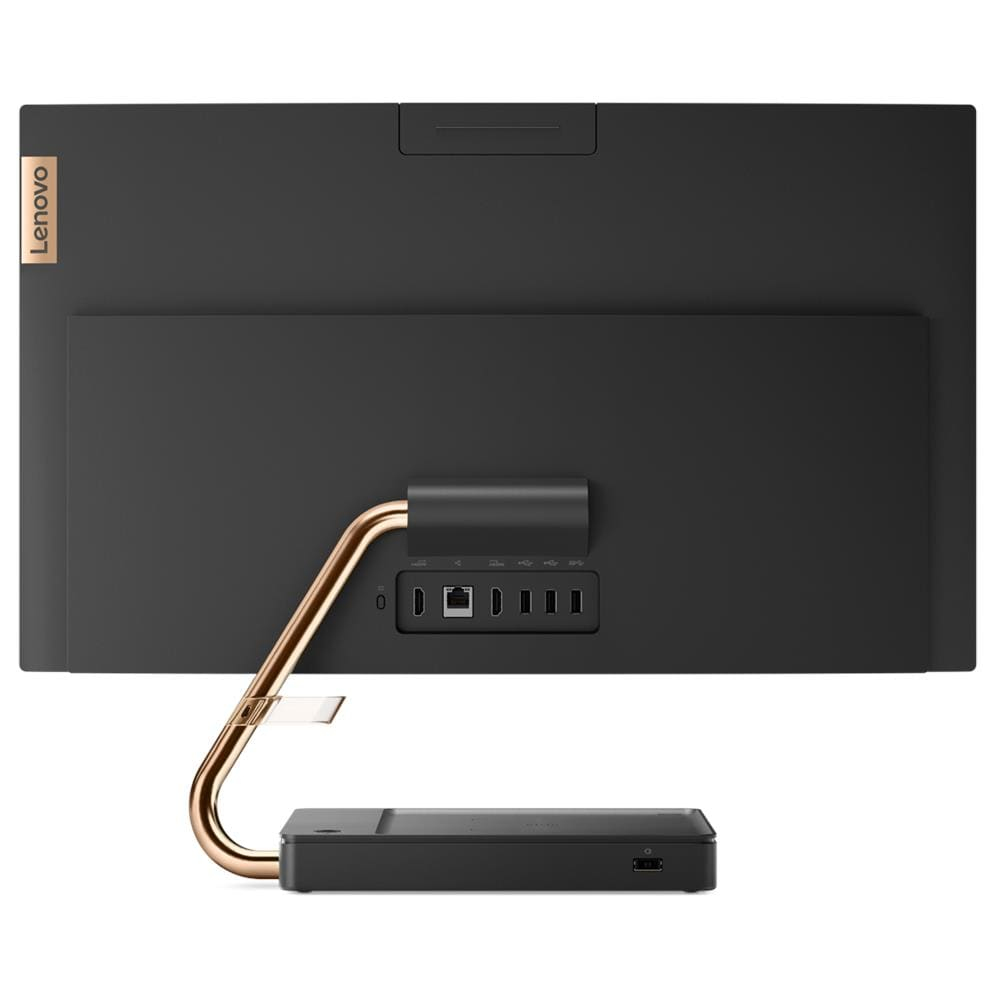

IdeaCentre AIO 5 24IMB05
Model IdeaCentre AIO 5 24IMB05Part no. F0FB005UTAEAN 195348369862
80 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage2.25 TB
- GraphicsNVIDIA GeForce MX330
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 2.25 TB
- Graphics
- NVIDIA GeForce MX330
- Brand
- Lenovo
- Category
- All-in-One PCs/Workstations
- Model
- IdeaCentre AIO 5 24IMB05
- Part number
- F0FB005UTA
- EAN / UPC
- 195348369862
- Also known as
- Lenovo IdeaCentre AIO 5 24IMB05 Intel® Core™ i7 i7-10700T 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 16 GB DDR4-SDRAM 2.25 TB HDD+SSD NVIDIA GeForce MX330
Specifications
80 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| HD type | Full HD |
| Native aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Panel type | IPS |
| Anti-glare screen | Yes |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor model | i7-10700T |
| Processor cores | 8 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 2 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory form factor | DIMM/SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.25 TB |
| Storage media | HDD+SSD |
| Total HDDs capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD speed | 5400 RPM |
| HDD size | 2.5" |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Optical drive type | DVD±RW |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA GeForce MX330 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Camera HD type | HD |
| Camera resolution | 1280 x 720 pixels |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 2 |
| Combo headphone/mic port | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One PC |
| Motherboard chipset | Intel B460 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
| Operating system language | English |
| Bundled software | Office Home & Student 2019 |
Power
| Specification | Value |
|---|---|
| AC adapter power | 150 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 450.9 mm |
| Depth (with stand) | 185 mm |
| Height (with stand) | 435.2 mm |
| Weight (with stand) | 10.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wireless |
| Mouse included | Yes |
| Keyboard connectivity | Wireless |
| Keyboard included | Yes |
