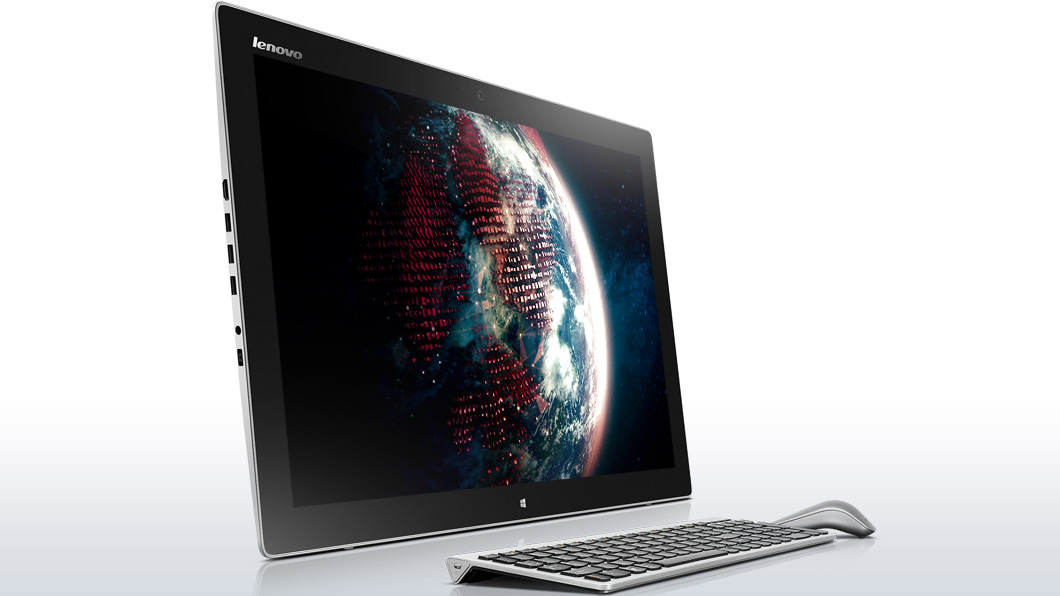

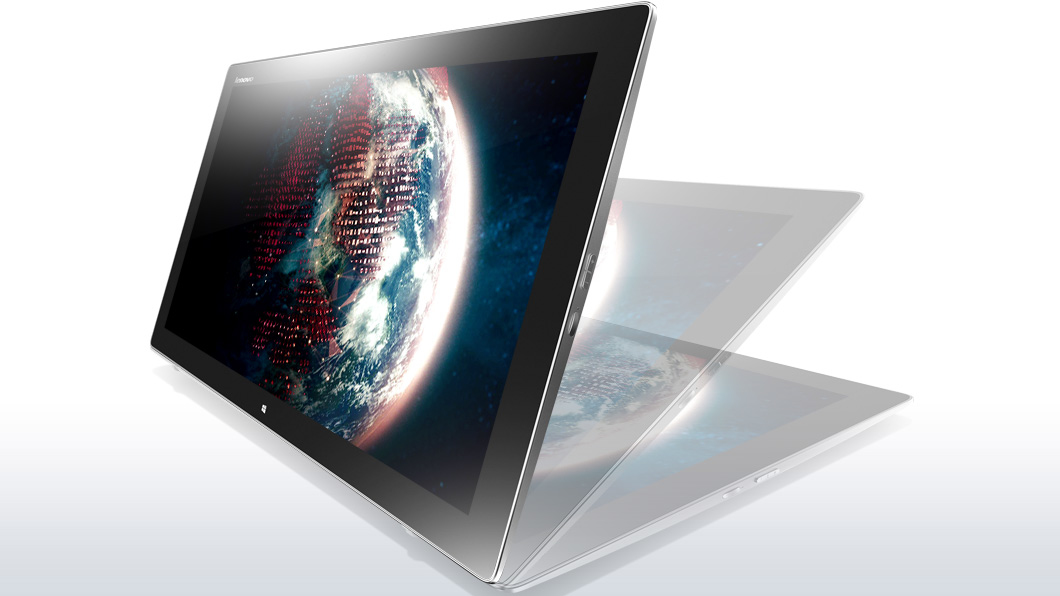

Lenovo Horizon 2

Model Horizon 2Part no. F0AQ002NUKEAN 889561606735

124 specifications

Display68.6 cm (27")
ProcessorIntel® Core™ i5
Memory8 GB
Storage1 TB
TypeAll-in-One PC
OSWindows 8.1

See all specifications

Overview

Display: 68.6 cm (27")
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1 TB
Type: All-in-One PC
OS: Windows 8.1

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: Horizon 2
Part numbers: F0AQ002NUK, F0AQ000QUS, F0AQ000TFR, F0AQ000XGE, F0AQ001EMZ, F0AQ000WUK +5 more
EAN / UPC: 889561606735, 888772169022, 8887721690220, 888772214012 +9 more
Also known as: Lenovo IdeaCentre Horizon 2 Intel® Core™ i5 i5-4210U 68.6 cm (27") Touchscreen All-in-One PC 8 GB 1 TB Windows 8.1 Silver

Specifications

124 specifications in 16 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Touchscreen	Yes
Full HD	No
Touch technology	Multi-touch

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4210U
Processor cores	2
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	1.7 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	15 W
Bus type	DMI2
FSB Parity	No
Maximum number of PCI Express lanes	12
PCI Express configurations	4x1, 2x4
PCI Express slots version	2.0
Processor code	SR1EF
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4200 Mobile series
Stepping	D0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12
On-board graphics card ID	0xA16

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	Dolby Home Theater

Camera

Specification	Value

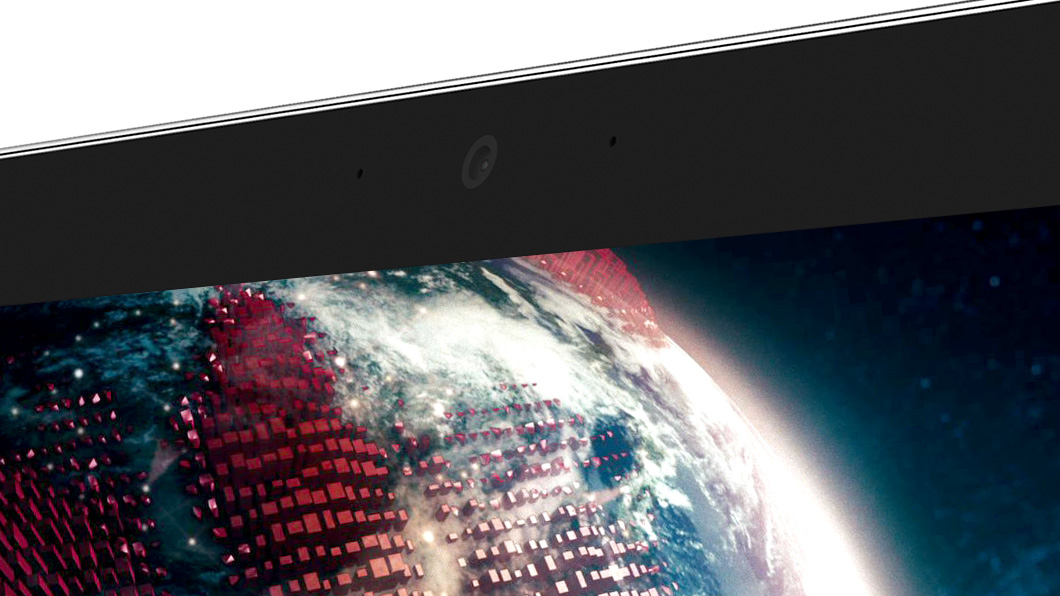

Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	No
Bluetooth	No

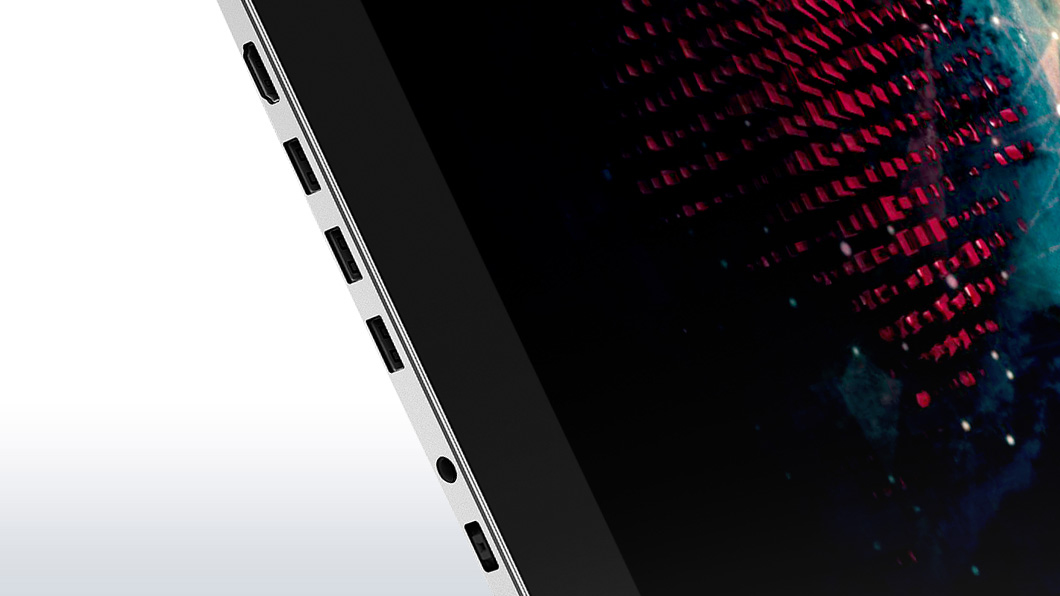

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Combo headphone/mic port	Yes
DC-in jack	Yes
Total number of SATA connectors	4
Number of SATA III connectors	4

Design

Specification	Value
Product colour	Silver

Performance

Specification	Value
Product type	All-in-One PC

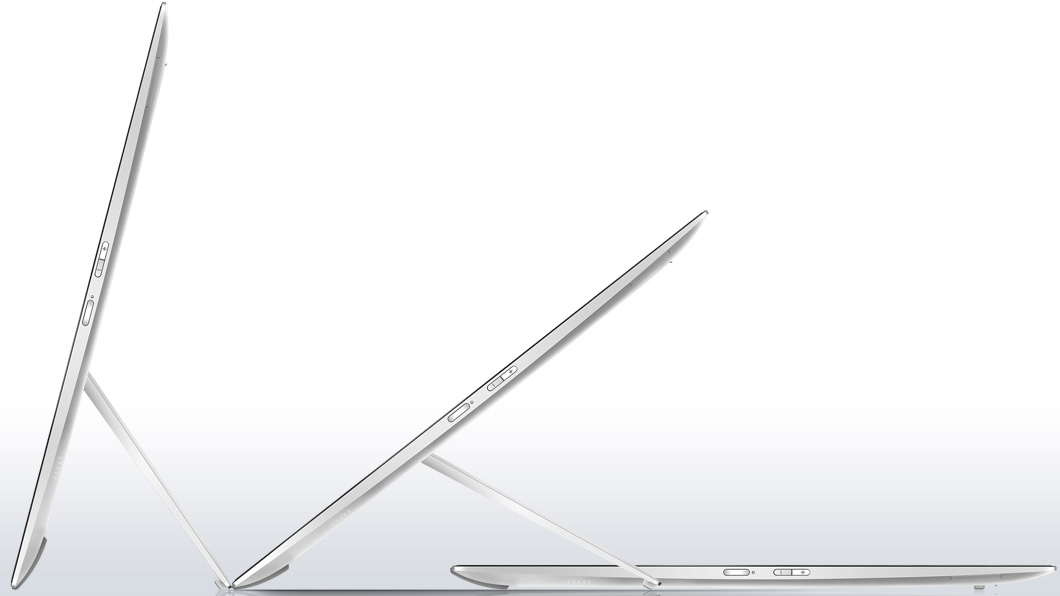

Placement supported	Horizontal/Vertical

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology	Yes
Intel Smart Connect Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	81016
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
UART	Yes

Weight & dimensions

Specification	Value
Width (with stand)	669 mm
Depth (with stand)	19.5 mm
Height (with stand)	407.9 mm
Weight (with stand)	7 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Other features

Specification	Value
Near Field Communication (NFC)	Yes
