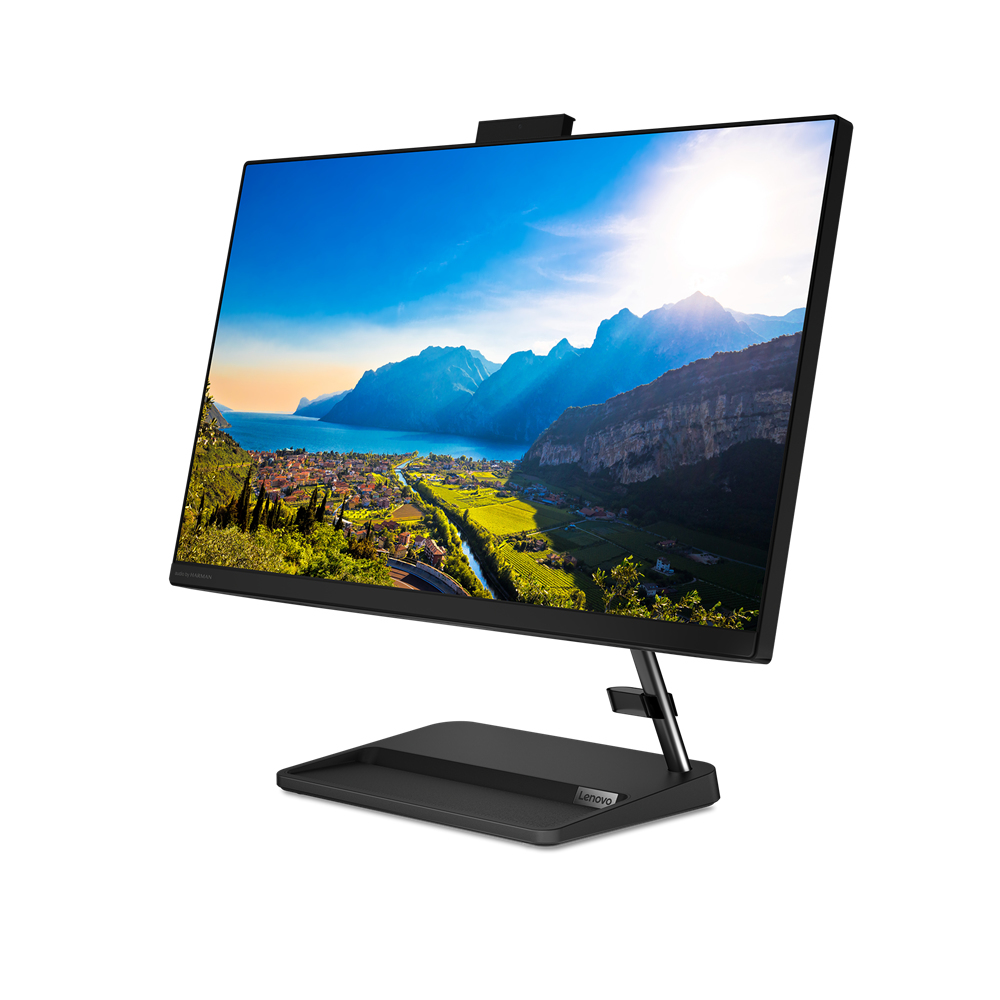

Lenovo IdeaCentre F0G00002FR All-in-One PC/workstation Intel® Core™ i5 i5-1135G7

IdeaCentre F0G00002FR All-in-One PC/workstation Intel® Core™ i5 i5-1135G7

60.5 cm (23.8") 1920 x 1080 pixels 8 GB DDR4-SDRAM 512 GB SSD Windows 10 Home W

Model F0G00002FR

99 specifications

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 512 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: F0G00002FR
Part number: F0G00002FR
Also known as: Lenovo IdeaCentre F0G00002FR All-in-One PC/workstation Intel® Core™ i5 i5-1135G7 60.5 cm (23.8") 1920 x 1080 pixels 8 GB DDR4-SDRAM 512 GB SSD Windows 10 Home W

Specifications

99 specifications in 18 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes
Tilt angle range	-5 - 25°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	11th gen Intel® Core™ i5
Processor model	i5-1135G7
Processor cores	4
Processor boost frequency	4.2 GHz
Processor cache	8 MB
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-up	28 W
Configurable TDP-down frequency	0.9 GHz
Configurable TDP-down	12 W

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	3200 MHz
Memory form factor	DIMM/SO-DIMM
ECC	No

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	3 W
Speakers manufacturer	Harman Kardon
Built-in microphone	Yes
Audio chip	Realtek ALC233

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	HD

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

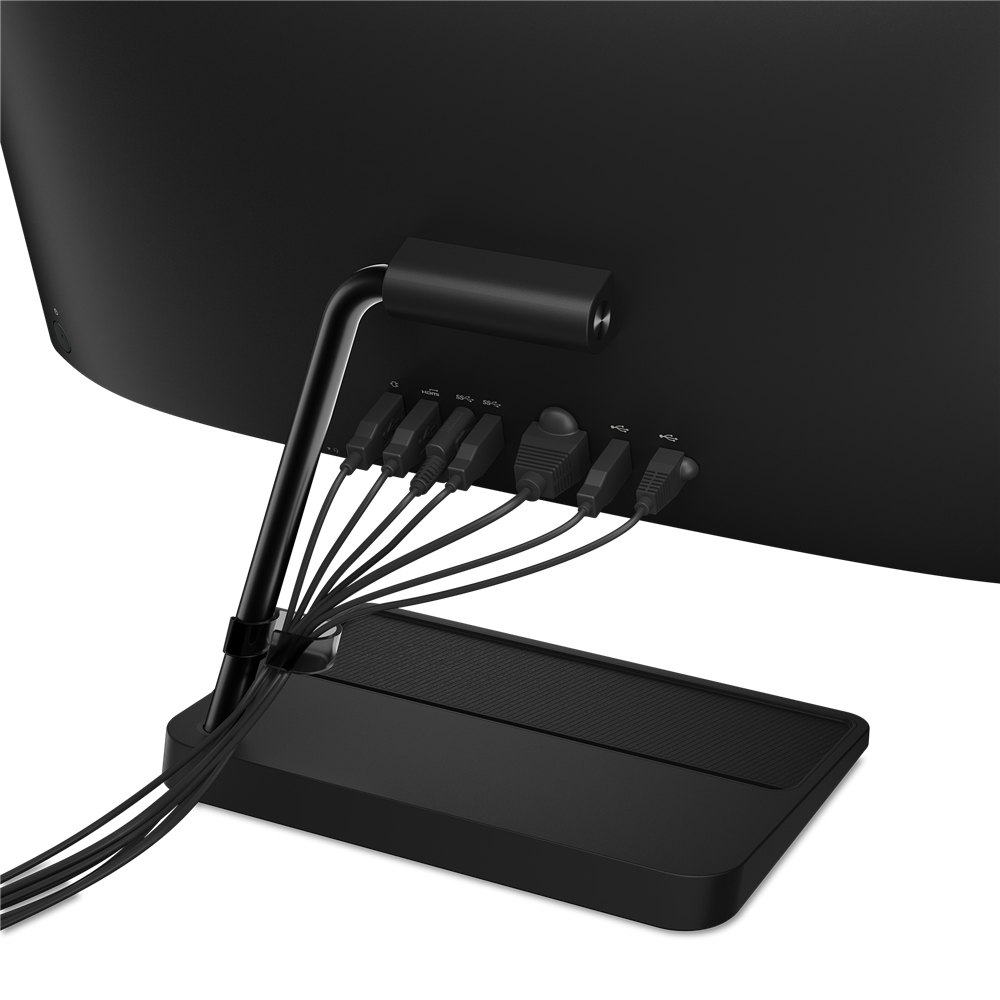

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
HDMI ports quantity	1
HDMI version	1.4
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel SoC
HDD user password	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	French

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Idle States	Yes
Intel Software Guard Extensions (Intel SGX)	No
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	90 W

Weight & dimensions

Specification	Value
Width (with stand)	541 mm
Depth (with stand)	185.3 mm
Height (with stand)	433.6 mm
Weight (with stand)	6.81 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 12192 m

Certificates

Specification	Value
Certification	ErP Lot 3 and Lot 7 RoHS compliant

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
