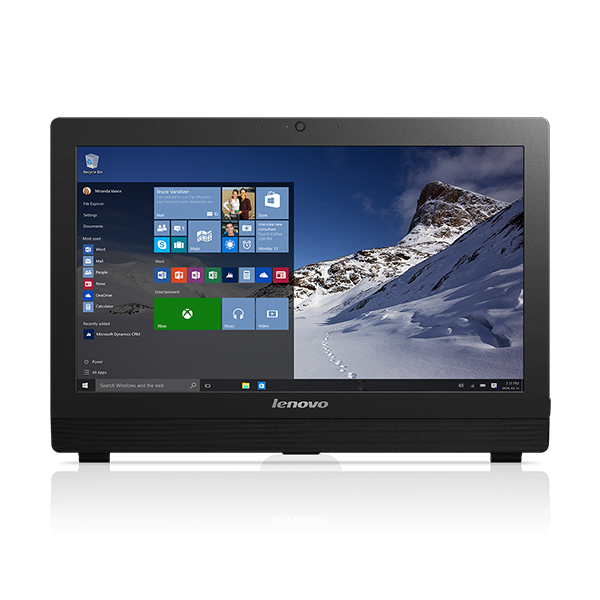

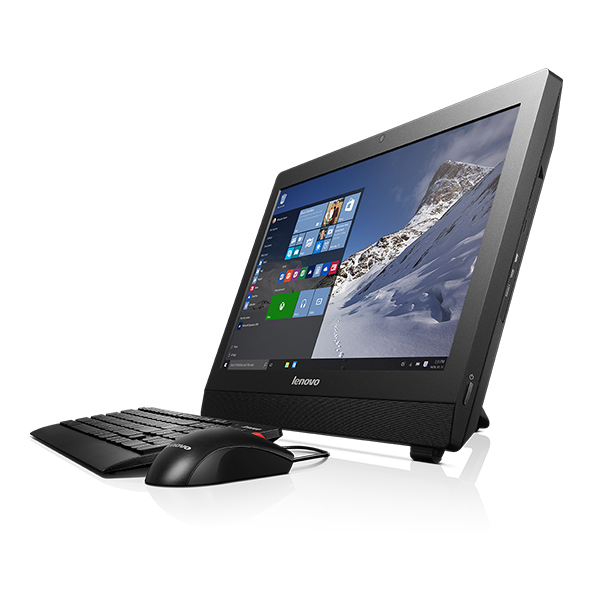

F0BQ000NCP All-in-One PC/workstation Intel® Celeron® J3060

49.5 cm (19.5") 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Basic Wi-Fi 5 (802.11ac) Black

Model F0BQ000NCP

107 specifications

Display49.5 cm (19.5")
ProcessorIntel® Celeron®
Memory2 GB
Storage500 GB
SpeedWi-Fi 5 (802.11ac)
TypeAll-in-One PC

See all specifications

Overview

Display: 49.5 cm (19.5")
Processor: Intel® Celeron®
Memory: 2 GB
Storage: 500 GB
Speed: Wi-Fi 5 (802.11ac)
Type: All-in-One PC

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: F0BQ000NCP
Part number: F0BQ000NCP
Also known as: Lenovo F0BQ000NCP All-in-One PC/workstation Intel® Celeron® J3060 49.5 cm (19.5") 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Basic Wi-Fi 5 (802.11ac) Black

Specifications

107 specifications in 15 groups

Display

Specification	Value
Display diagonal	49.5 cm (19.5")
LED backlight	Yes
Screen shape	Flat

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J3060
Processor cores	2
Processor threads	2
Processor boost frequency	2.48 GHz
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	L2
64-bit computing	Yes
Thermal Design Power (TDP)	6 W
Integrated 4G WiMAX	No
Maximum number of PCI Express lanes	4
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	2.0
Processor codename	Braswell
Processor lithography	14 nm
Processor operating modes	64-bit
Tjunction	90 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1600 MHz
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	7200 RPM
Optical drive type	DVD±RW
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 400
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	320 MHz
On-board graphics card burst frequency	700 MHz
On-board graphics card dynamic frequency (max)	700 MHz
Number of execution units	12

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	4.0

Design

Specification	Value
Product colour	Black

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 7 Home Basic
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology	No
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	91534
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	Yes
UART	Yes
