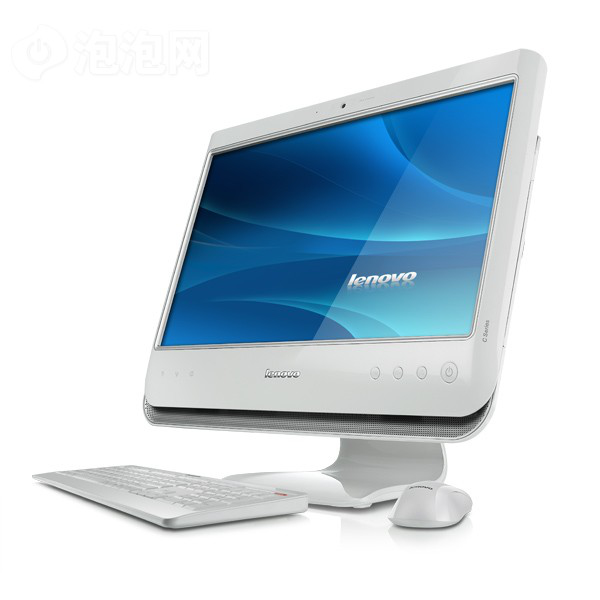

Lenovo Essential C200

Model Essential C200Part no. 57-300678EAN 645743550032

123 specifications

Display47 cm (18.5")
ProcessorIntel Atom®
Memory2 GB
Storage500 GB
OSWindows 7 Home Basic
ColourWhite

See all specifications

Overview

Display: 47 cm (18.5")
Processor: Intel Atom®
Memory: 2 GB
Storage: 500 GB
OS: Windows 7 Home Basic
Colour: White

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: Essential C200
Part numbers: 57-300678, 57-300238
EAN / UPC: 645743550032
Also known as: Lenovo Essential C200 Intel Atom® D525 47 cm (18.5") 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Basic White

Specifications

123 specifications in 20 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Touchscreen	No
Full HD	No
LED backlight	No
Display brightness	250 cd/m²
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D525
Processor cores	2
Processor threads	4
Processor frequency	1.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor socket	BGA 559
64-bit computing	Yes
Thermal Design Power (TDP)	13 W
Bus type	DMI
FSB Parity	No
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Processor code	SLBXC
Processor codename	Pineview
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Stepping	B0
Tjunction	100 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3 800 (SODIMM only); DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
Memory channels supported by processor	Single
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi DL

Graphics

Specification	Value
On-board graphics card	Yes

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	6 W
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	0.3 MP

Optical drive

Specification	Value
Disc types supported	CD, DVD

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
Mini DisplayPorts quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
PS/2 ports quantity	1

Design

Specification	Value
Product colour	White
Cable lock slot	Yes

Performance

Specification	Value
Placement supported	Horizontal

Software

Specification	Value
Operating system installed	Windows 7 Home Basic

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	49490
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	460.3 mm
Depth (with stand)	168.3 mm
Height (with stand)	384.3 mm
Weight (with stand)	7.26 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 70%
Storage relative humidity (H-H)	0 - 80%

Certificates

Specification	Value
Compliance certificates	RoHS

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	Yes
Quick start guide	Yes

Other features

Specification	Value
Graphics card family	Intel
Power auto-sensing	Yes
Headphone connectivity	3.5 mm
Internal modem	No
Microphone connectivity	3.5 mm
Storage drive interface	Serial ATA
TV tuner integrated	No
