IdeaCentre C560 Intel® Core™ i3 i3-4130

58.4 cm (23") 1920 x 1080 pixels All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Wi-Fi 4 (802.11n) White

Model C560Part no. 57322943EAN 888772198893

142 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage1 TB
SpeedWi-Fi 4 (802.11n)

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 1 TB
Speed: Wi-Fi 4 (802.11n)

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: C560
Part numbers: 57322943, 57323523, 57324176, 57323524, 57323522, 57328350 +34 more
EAN / UPC: 888772198893, 888228988320, 888440366388, 888228978079 +56 more
Also known as: Lenovo IdeaCentre C560 Intel® Core™ i3 i3-4130 58.4 cm (23") 1920 x 1080 pixels All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD Windows 8.1 Wi-Fi 4 (802.11n) White

Specifications

142 specifications in 16 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	4th gen Intel® Core™ i3
Processor model	i3-4130
Processor cores	2
Processor threads	4
Processor frequency	3.4 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1150 (Socket H3)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	65, 54
Bus type	DMI2
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of QPI links	0
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
Processor codename	Haswell
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-4100 Desktop series
Stepping	C0
Tcase	72 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-1333/1600, DDR3L-1333/1600 @ 1.5V
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x41E

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	Dolby Advanced Audio

Camera

Specification	Value
Built-in camera	Yes
Camera resolution	1280 x 720 pixels

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value

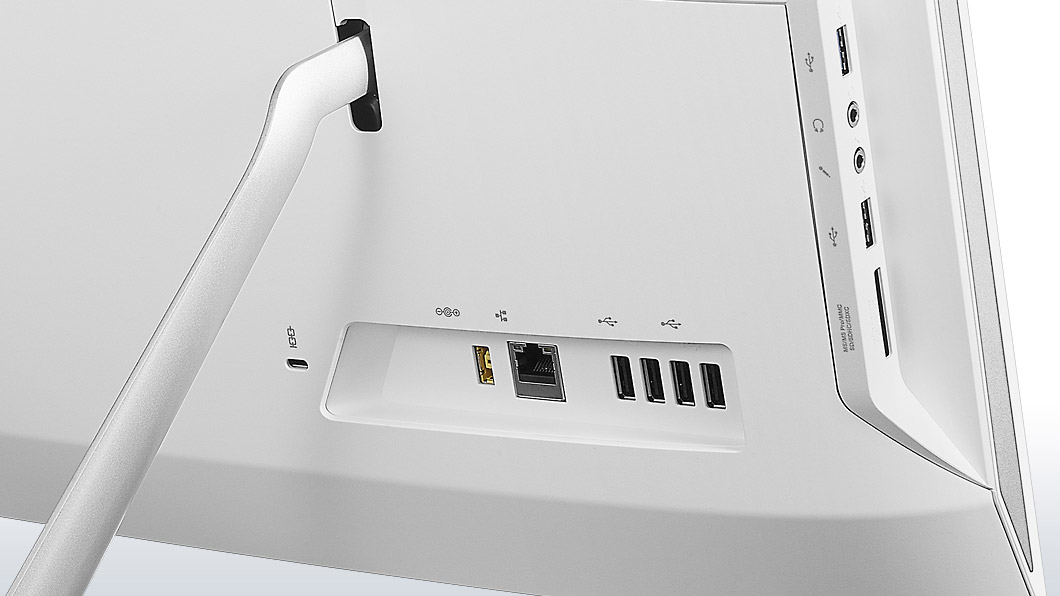

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes

Design

Specification	Value
Product colour	White

Performance

Specification	Value
Product type	All-in-One PC

Software

Specification	Value
Operating system installed	Windows 8.1

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Connect Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Rapid Start Technology	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	77480
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
