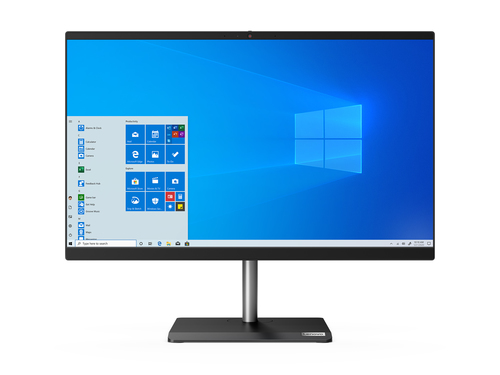

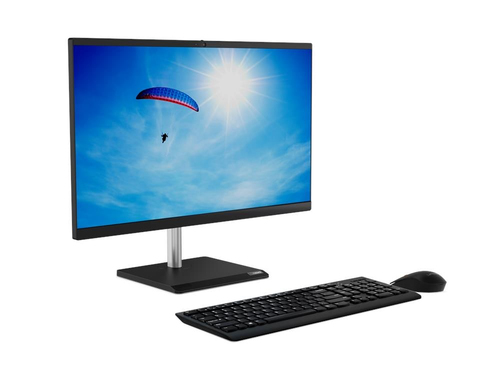

Lenovo AIO M70a 21.5" Touch i5 8GB 256GB W10P

Model AIO M70a 21.5" Touch i5 8GB 256GB W10PPart no. 11CK003AIXEAN 195042945881

141 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 256 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: AIO M70a 21.5" Touch i5 8GB 256GB W10P
Part number: 11CK003AIX
EAN / UPC: 195042945881
Also known as: Lenovo AIO M70a 21.5" Touch i5 8GB 256GB W10P Intel® Core™ i5 i5-10400 54.6 cm (21.5") 1920 x 1080 pixels Touchscreen All-in-One PC DDR4-SDRAM SSD Windows 10 Pr

Specifications

141 specifications in 18 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:9
Display brightness	250 cd/m²
Panel type	IPS
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	10th gen Intel® Core™ i5
Processor model	i5-10400
Processor cores	6
Processor threads	12
Processor boost frequency	4.3 GHz
Processor frequency	2.9 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor socket	LGA 1200 (Socket H5)
System bus rate	8 GT/s
Thermal Design Power (TDP)	65 W
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Processor codename	Comet Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Tjunction	100 °C
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	64 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2666 MHz
Memory layout (slots x size)	2 x 4 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	DVD±RW
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x9BC8/0x9BC5
On-board graphics card OpenGL version	4.5

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in microphone	Yes
Audio chip	Realtek ALC233

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	Full HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller manufacturer	Intel
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	1
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Black
Colour name	Black
Cable lock slot	Yes
Cable lock slot type	Kensington

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel H470
Trusted Platform Module (TPM)	Yes
HDD user password	Yes

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	199271
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C

Power

Specification	Value
AC adapter power	135 W

Weight & dimensions

Specification	Value
Width (with stand)	490.2 mm
Depth (with stand)	232.8 mm
Height (with stand)	439.3 mm
Weight (with stand)	7.65 kg
Width (without stand)	490.1 mm
Depth (without stand)	57.8 mm
Height (without stand)	297.8 mm
Weight (without stand)	4.88 kg

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Keyboard language	Italian
