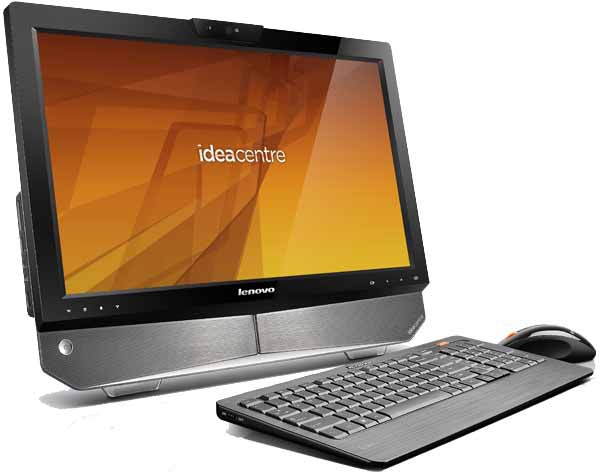

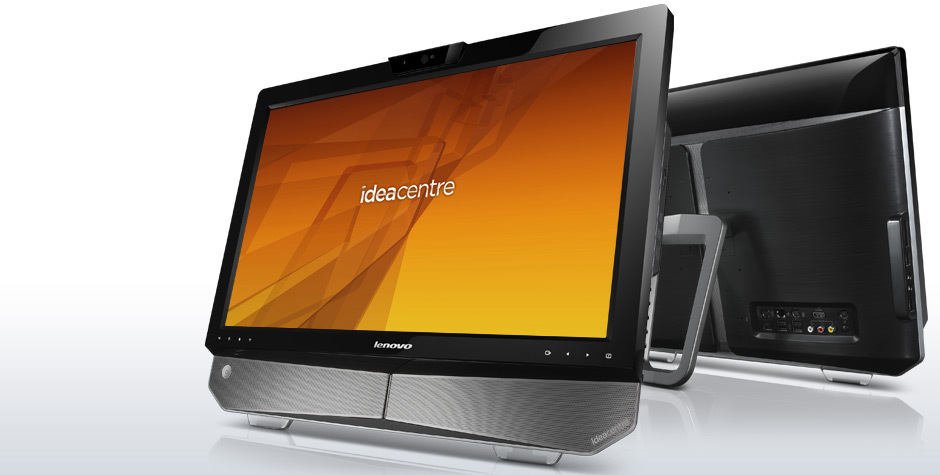

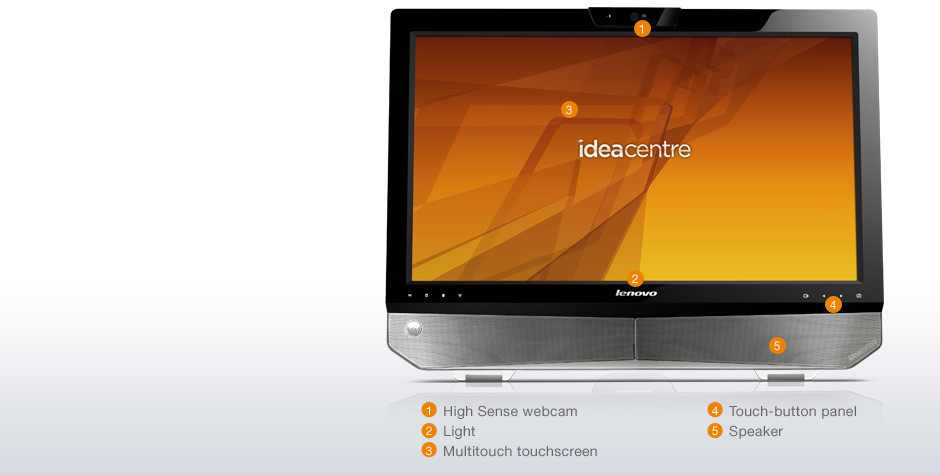

Aio B320

Model Aio B320Part no. 57300809EAN 645743908123

128 specifications

Overview

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: Aio B320
Part number: 57300809
EAN / UPC: 645743908123
Also known as: Lenovo IdeaCentre Aio B320 Intel® Core™ i3 i3-2100 54.6 cm (21.5") 1366 x 768 pixels Touchscreen 4 GB DDR3-SDRAM 500 GB Windows 7 Professional Black

128 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2100
Processor cores	2
Processor threads	4
Processor frequency	3.1 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	35, 65
Bus type	DMI
CPU multiplier (bus/core ratio)	31
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-2100 Desktop Series
Stepping	Q0
Tcase	69.1 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102

Specification	Value

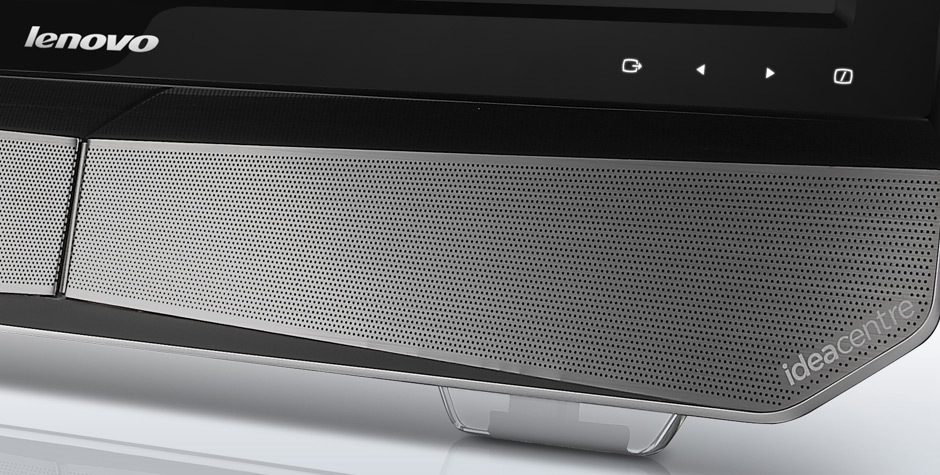

Number of speakers	2
Built-in microphone	Yes

Specification	Value
Built-in camera	Yes

Specification	Value

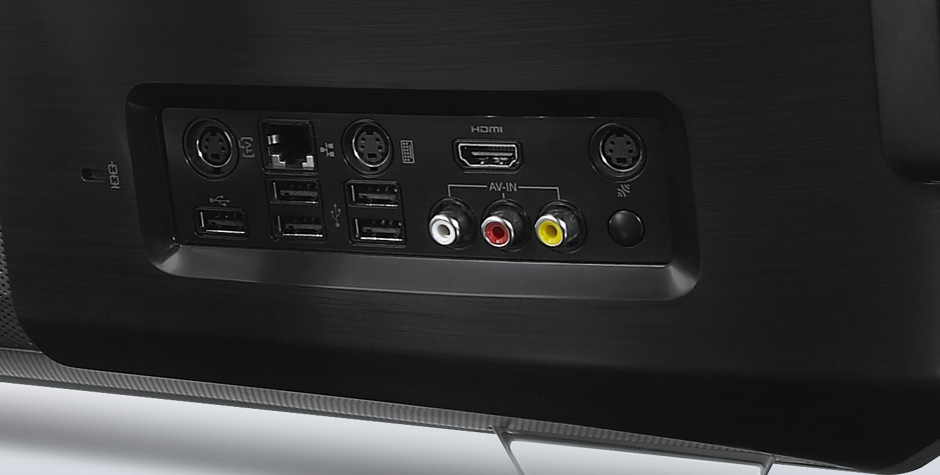

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Firewire (IEEE 1394) ports	0
Serial ports quantity	0

Specification	Value
Product colour	Black

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53422
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes

Specification	Value
Graphics card family	Intel
Audio output channels	5.0 channels
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Display included	Yes
Networking features	Gigabit Ethernet
Number of processors installed	1
Parallel ports quantity	0
Speakers	monitor built-in
