Lenovo AIO 520-27IKL

AIO 520-27IKL

Model AIO 520-27IKLPart no. F0D0007HIX

99 specifications

Display68.6 cm (27")
Resolution2560 x 1440 pixels
ProcessorIntel® Core™ i5
Memory8 GB
Storage1 TB
GraphicsNVIDIA® GeForce® 940MX

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 2560 x 1440 pixels
Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® 940MX

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: AIO 520-27IKL
Part number: F0D0007HIX
Also known as: Lenovo IdeaCentre AIO 520-27IKL Intel® Core™ i5 i5-7400T 68.6 cm (27") 2560 x 1440 pixels Touchscreen All-in-One PC 8 GB DDR4-SDRAM 1 TB HDD NVIDIA® GeForce® 94

Specifications

99 specifications in 18 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
Touchscreen	Yes
HD type	Quad HD
Native aspect ratio	16:9
Panel type	WVA
Anti-glare screen	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7400T
Processor cores	4
Processor boost frequency	3 GHz
Processor frequency	2.4 GHz
Configurable TDP-down frequency	1.2 GHz
Bus type	DMI3
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	16 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2400 MHz
Memory layout (slots x size)	1 x 8 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
HDD size	3.5"
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 940MX
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card	Yes
On-board graphics card model	Intel® HD Graphics 630

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	3 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	Full HD

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	1x1
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

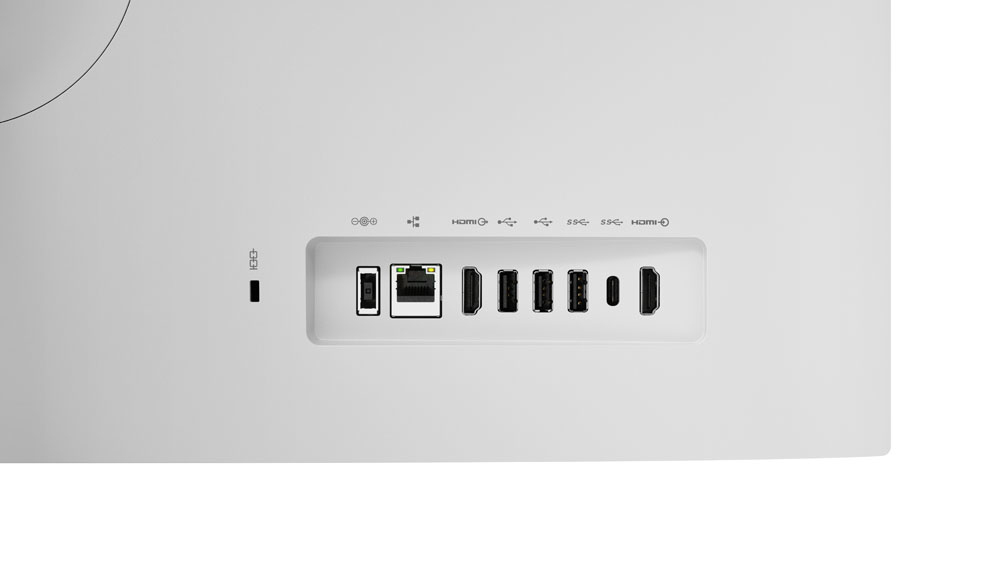

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Silver
Colour name	Silver
Cable lock slot	Yes
On/off button	Yes

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® B250
Placement supported	Horizontal

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	150 W

Weight & dimensions

Specification	Value
Width (with stand)	624.6 mm
Depth (with stand)	252.8 mm
Height (with stand)	479.8 mm
Weight (with stand)	10.5 kg

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Keyboard language	Italian
