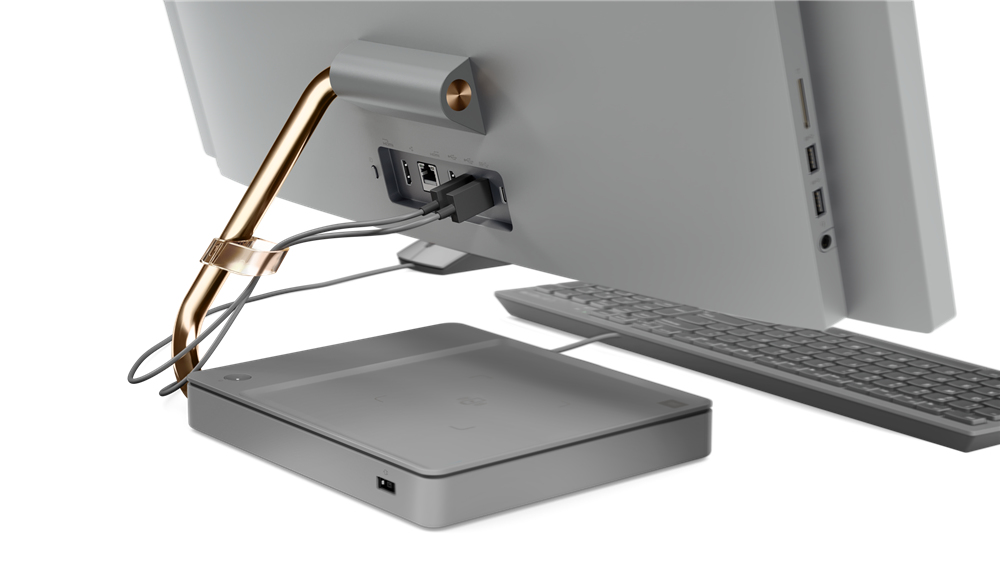

Lenovo AIO 5 27IMB05

AIO 5 27IMB05

Model AIO 5 27IMB05Part no. F0FA007SUAEAN 195890316512

98 specifications

Display68.6 cm (27")
Resolution2560 x 1440 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 2560 x 1440 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: AIO 5 27IMB05
Part numbers: F0FA007SUA, F0FA004FPB, F0FA004JPB, F0FA004HPB, F0FA000KIX, F0FA000LIX +6 more
EAN / UPC: 195890316512, 195348079372, 195348079440, 195348079457 +8 more
Also known as: Lenovo AIO 5 27IMB05 Intel® Core™ i7 i7-10700T 68.6 cm (27") 2560 x 1440 pixels Touchscreen All-in-One PC 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Home Wi-Fi 6 (8

Specifications

98 specifications in 18 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
Touchscreen	Yes
HD type	Quad HD
Native aspect ratio	16:9
Panel type	IPS

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-10700T
Processor cores	8
Processor boost frequency	4.5 GHz
Processor frequency	2 GHz
Processor cache	16 MB
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.3 GHz
Configurable TDP-down	25 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	32 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	2933 MHz
Memory layout (slots x size)	2 x 8 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	2
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	M.2, NVMe, PCI Express 3.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	3 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	Full HD

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
HDMI ports quantity	2
HDMI version	1.4
Combo headphone/mic port	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Grey
Colour name	Mineral Grey

Performance

Specification	Value
Product type	All-in-One PC
Market positioning	Business
Motherboard chipset	Intel B460

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	Polish

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	170 W

Weight & dimensions

Specification	Value
Width (with stand)	614.8 mm
Depth (with stand)	200 mm
Height (with stand)	476 mm
Weight (with stand)	9.22 kg

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	• ENERGY STAR® 8.0 • ErP Lot 3 and Lot 7 • RoHS compliant

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, ErP

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Keyboard language	English
Keyboard layout	QWERTY
Numeric keypad	Yes
