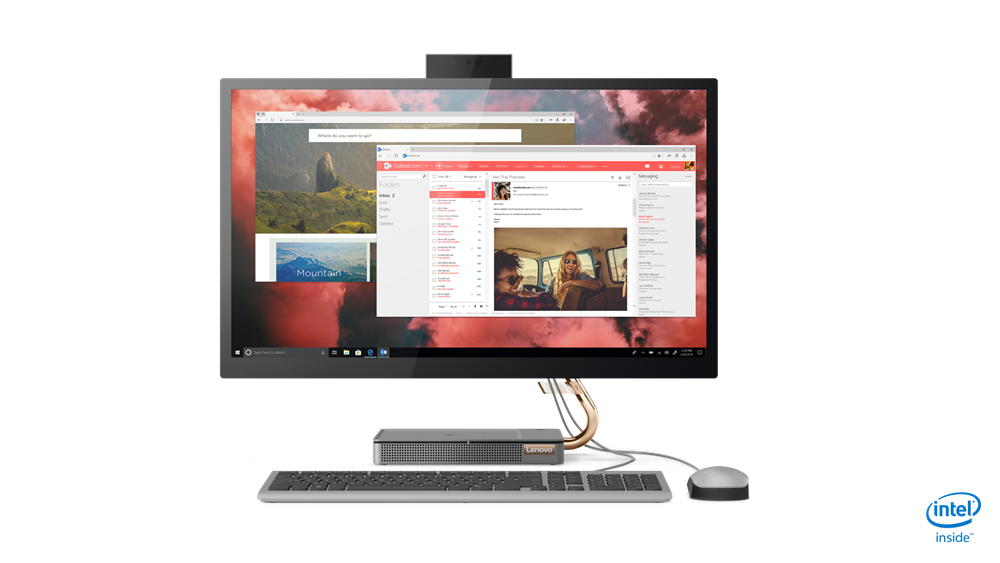

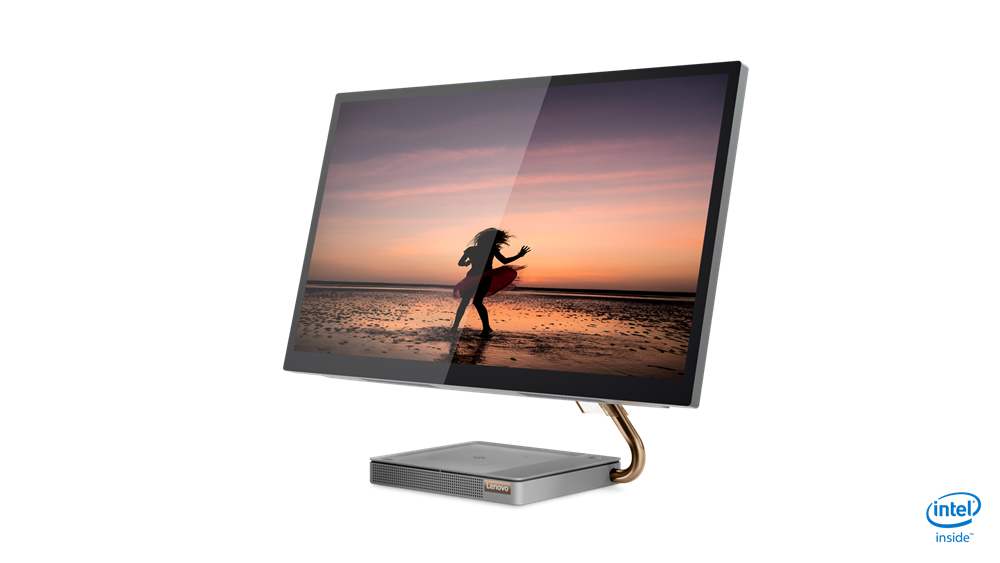

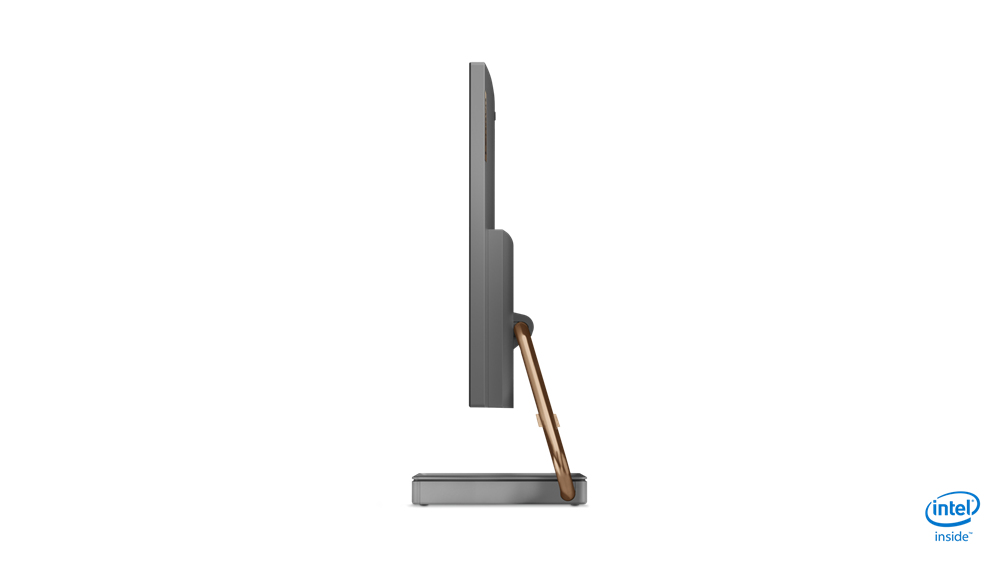

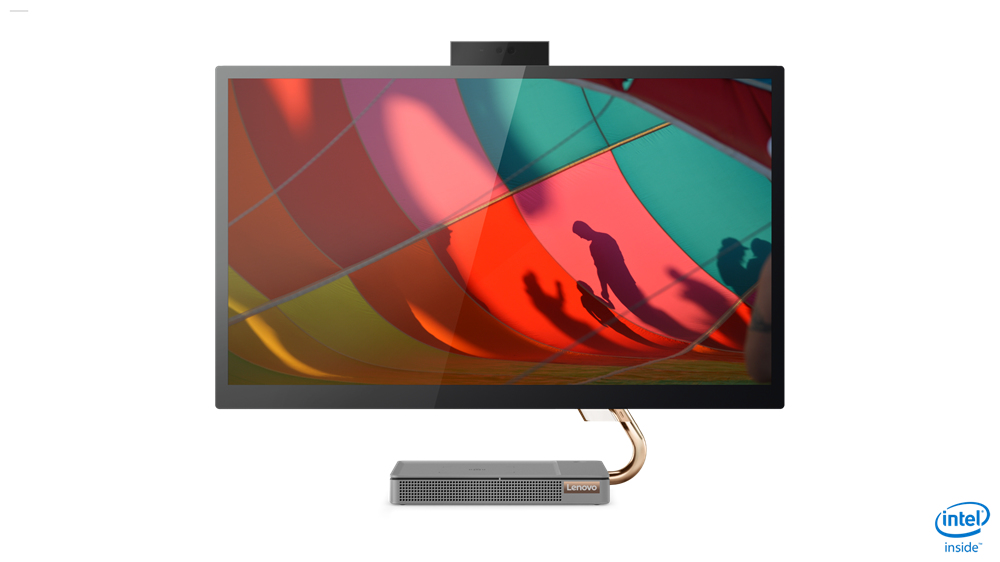

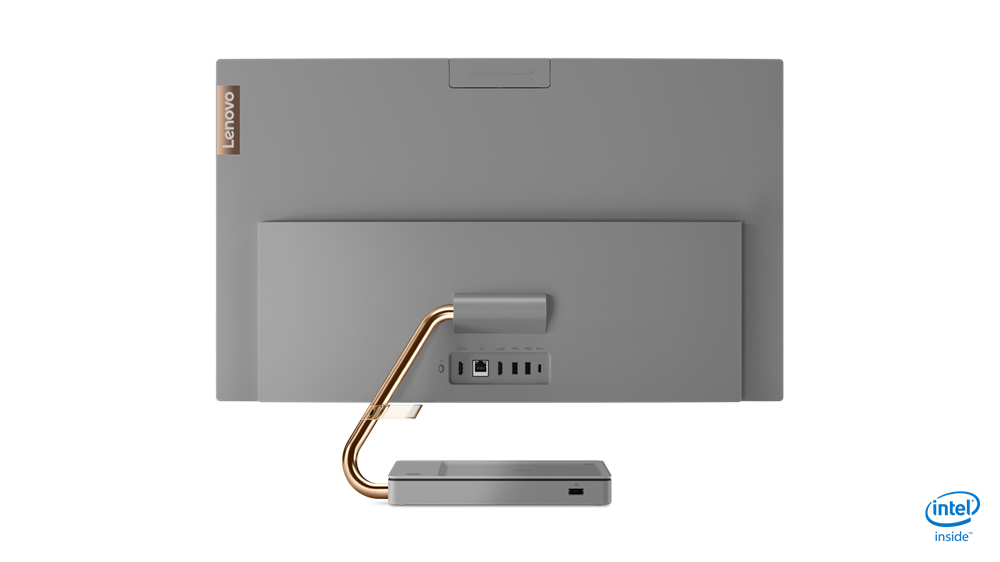

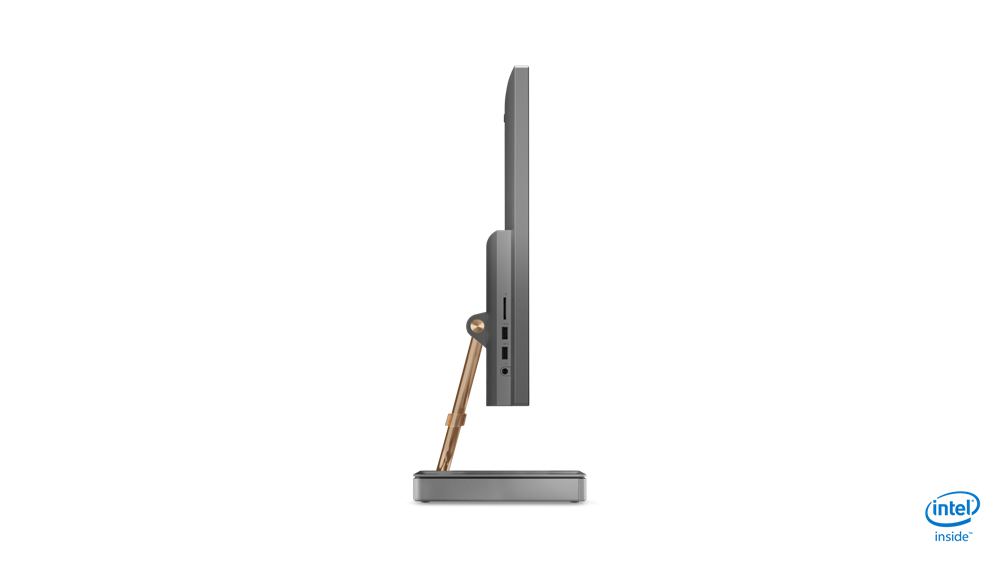

Lenovo A540-27ICB Intel® Core™ i5 i5-9400T
Lenovo

A540-27ICB Intel® Core™ i5 i5-9400T

68.6 cm (27") 2560 x 1440 pixels All-in-One PC 8 GB DDR4-SDRAM 1.51 TB HDD+SSD AMD Radeon RX 560X Windows 10 Home Wi-

Model A540-27ICBPart no. F0EK009DUAEAN 194778392969

143 specifications
  • Display68.6 cm (27")
  • Resolution2560 x 1440 pixels
  • ProcessorIntel® Core™ i5
  • Memory8 GB
  • Storage1.51 TB
  • GraphicsAMD Radeon RX 560X
See all specifications

Overview

Display
68.6 cm (27")
Resolution
2560 x 1440 pixels
Processor
Intel® Core™ i5
Memory
8 GB
Storage
1.51 TB
Graphics
AMD Radeon RX 560X
Brand
Lenovo
Model
A540-27ICB
Part numbers
F0EK009DUA, F0EK002NIX, F0EK00C3GE, F0EK00ADPB, F0EK00C4IX, F0EK001QPG +4 more
EAN / UPC
194778392969, 194552058296, 195042550405, 195042049824 +6 more
Also known as
Lenovo A540-27ICB Intel® Core™ i5 i5-9400T 68.6 cm (27") 2560 x 1440 pixels All-in-One PC 8 GB DDR4-SDRAM 1.51 TB HDD+SSD AMD Radeon RX 560X Windows 10 Home Wi-

Specifications

143 specifications in 18 groups

Display

Display diagonal68.6 cm (27")
Display resolution2560 x 1440 pixels
TouchscreenNo
HD typeQuad HD
Native aspect ratio16:9
Panel typeWVA

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation9th gen Intel® Core™ i5
Processor modeli5-9400T
Processor cores6
Processor threads6
Processor boost frequency3.4 GHz
Processor frequency1.8 GHz
Processor cache9 MB
Processor cache typeSmart Cache
Processor socketLGA 1151 (Socket H4)
System bus rate8 GT/s
Thermal Design Power (TDP)35 W
Configurable TDP-down frequency1.2 GHz
Configurable TDP-down25 W
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version3.0
Processor lithography14 nm
Processor operating modes64-bit
Tjunction100 °C
Maximum internal memory supported by processor128 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor2666 MHz
Memory bandwidth supported by processor (max)41.6 GB/s

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Maximum internal memory16 GB
Memory slots2
Memory slots typeSO-DIMM
Memory clock speed2666 MHz
Memory layout (slots x size)2 x 4 GB
Memory form factorDIMM/SO-DIMM

Storage

Total storage capacity1.51 TB
Storage mediaHDD+SSD
Number of storage drives installed2
Total HDDs capacity1 TB
Number of HDDs installed1
HDD capacity1 TB
HDD speed5400 RPM
HDD size2.5"
HDD interfaceSATA III
Total SSDs capacity512 GB
Number of SSDs installed1
SSD capacity512 GB
NVMeYes
SSD interfaceNVMe, PCI Express
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

Discrete graphics cardYes
Discrete graphics card modelAMD Radeon RX 560X
Discrete graphics card memory4 GB
Discrete graphics memory typeGDDR5
On-board graphics cardYes
On-board graphics card modelIntel® UHD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1050 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x3E92
On-board graphics card OpenGL version4.5

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power11 W
Speakers manufacturerJBL
Built-in microphoneYes

Camera

Built-in cameraYes
Camera HD typeFull HD
Camera resolution1920 x 1080 pixels

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Antenna type1x1
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version4.0

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Thunderbolt ports quantity0
HDMI ports quantity2
Combo headphone/mic portYes

Design

Product colourGrey
Colour nameMineral Gray

Performance

Product typeAll-in-One PC
Motherboard chipsetIntel® B360

Software

Operating system installedWindows 10 Home
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)No
Intel TSX-NINo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID134893
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsSSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015A

Power

AC adapter power170 W
AC adapter frequency50/60 Hz
AC adapter input voltage100 - 240 V

Weight & dimensions

Width (with stand)614.8 mm
Depth (with stand)200 mm
Height (with stand)476 mm
Weight (with stand)9.27 kg

Certificates

Compliance certificatesRoHS
CertificationErP Lot 3 & Lot 6 & Lot 7

Sustainability

Sustainability certificatesENERGY STAR

Packaging content

Mouse includedYes
Keyboard includedYes
Keyboard languageItalian
