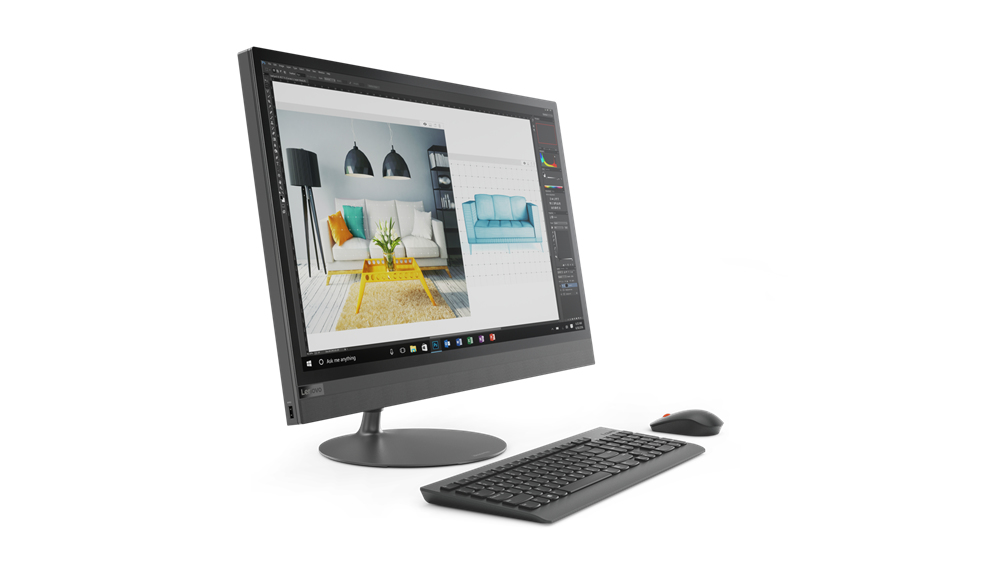

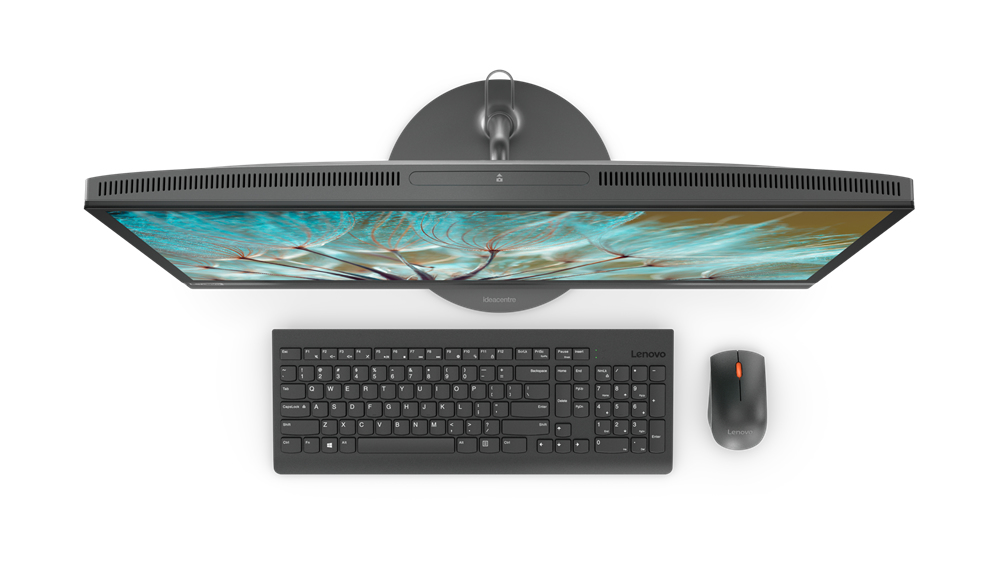

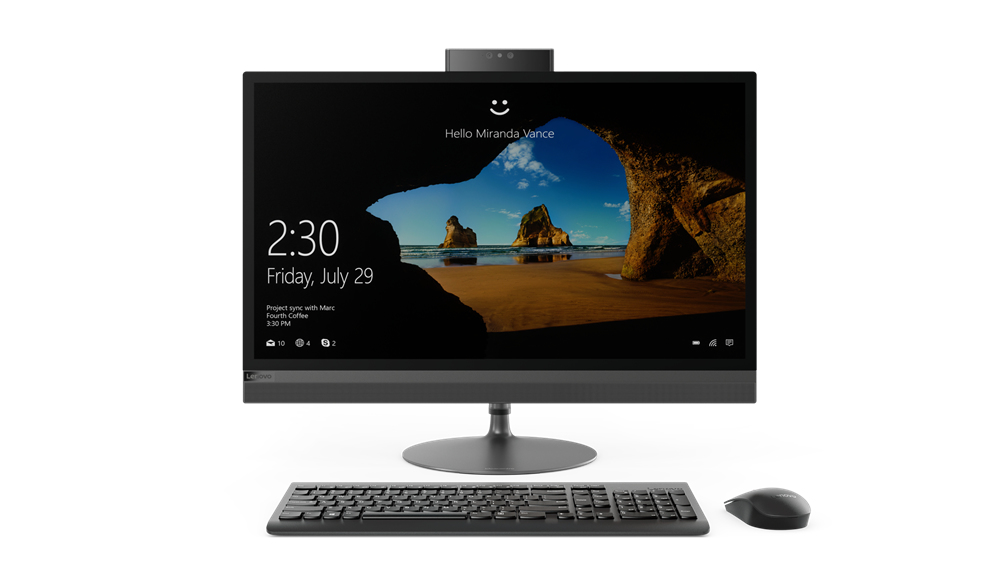

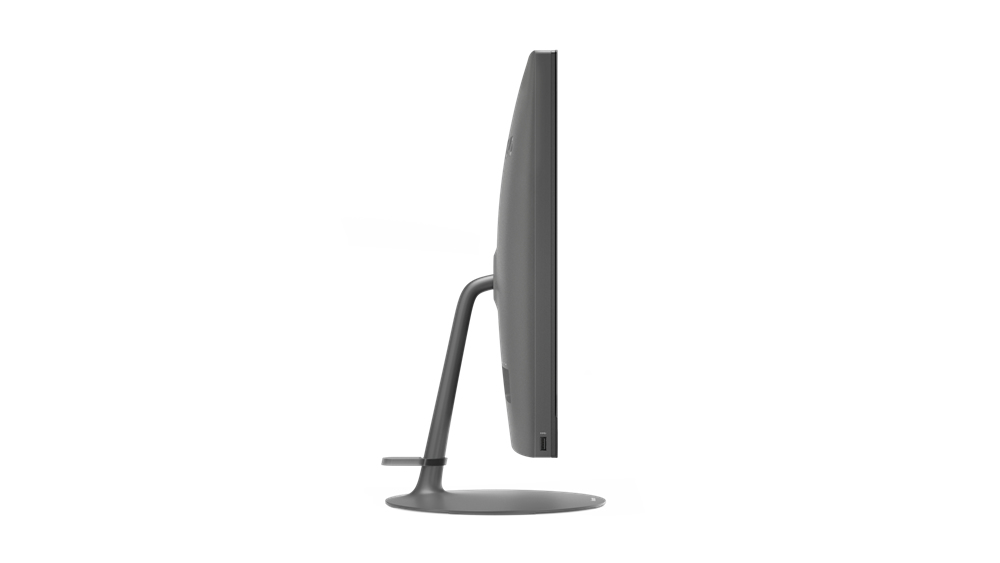

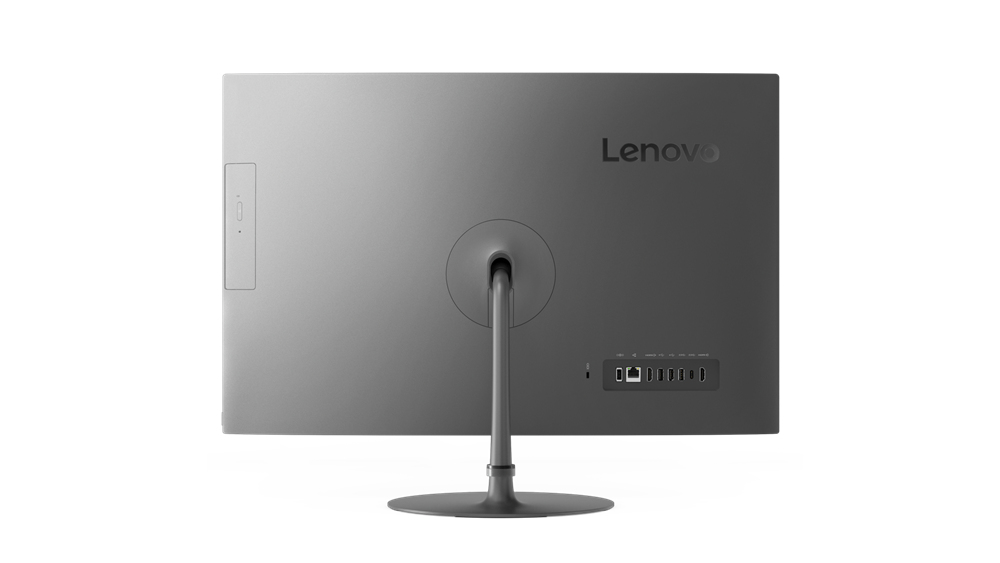

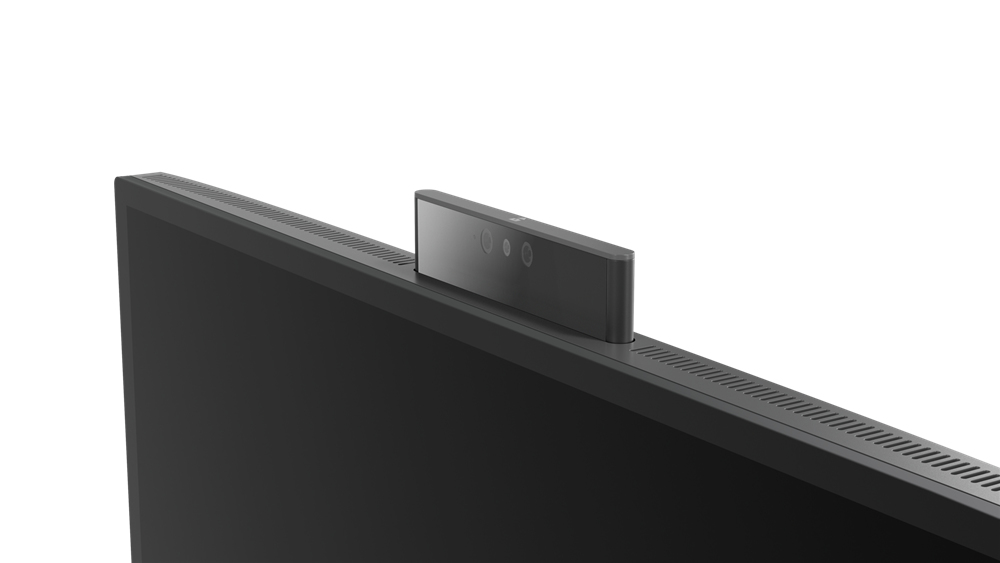

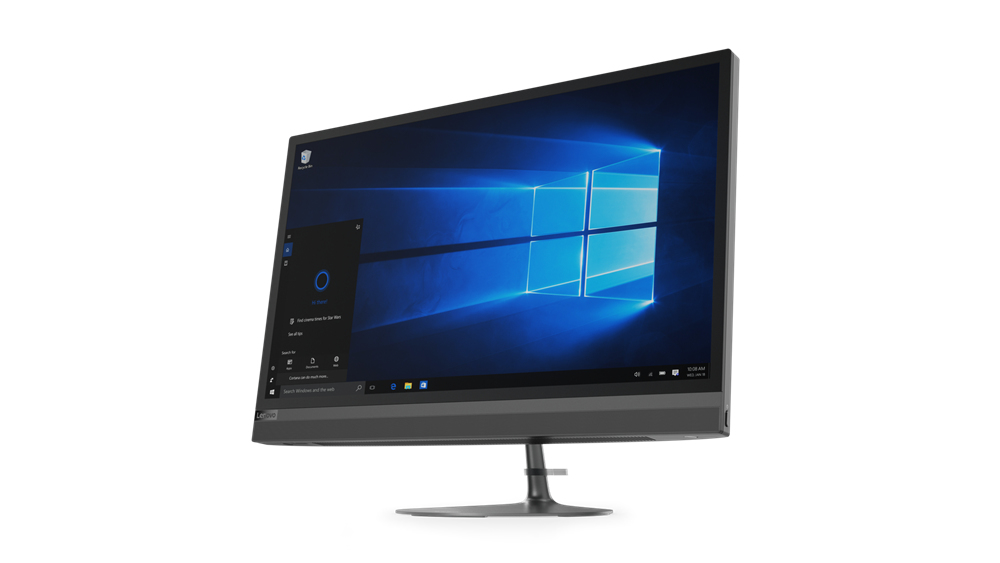

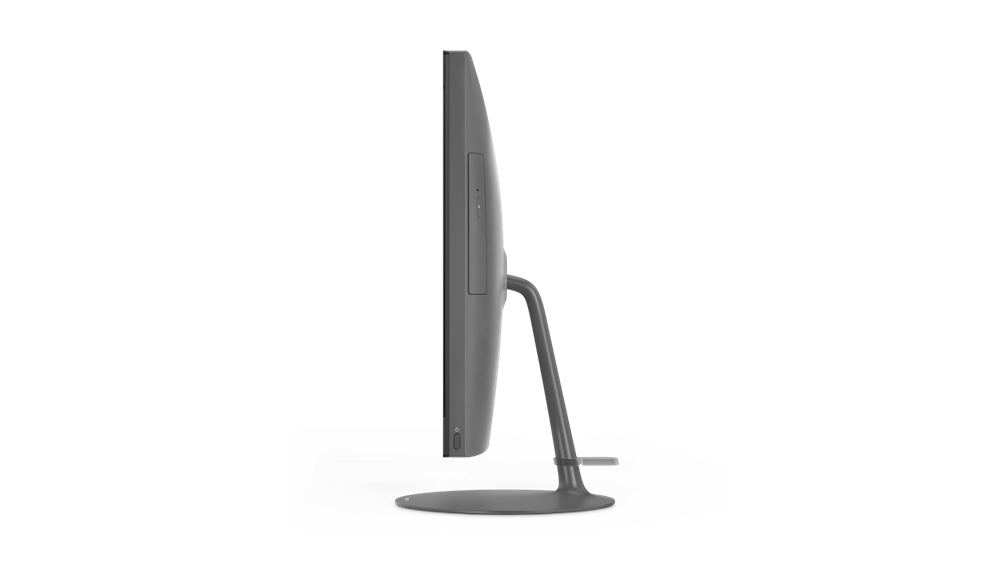

520-27ICB Intel® Core™ i5 i5-8400T

68.6 cm (27") 2560 x 1440 pixels All-in-One PC 8 GB DDR4-SDRAM 1.25 TB HDD+SSD Windows 10 Home Wi-Fi 5 (802.11ac) Silv

Model 520-27ICBPart no. F0DE00E0IXEAN 194778159791

157 specifications

Overview

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: 520-27ICB
Part number: F0DE00E0IX
EAN / UPC: 194778159791
Also known as: Lenovo 520-27ICB Intel® Core™ i5 i5-8400T 68.6 cm (27") 2560 x 1440 pixels All-in-One PC 8 GB DDR4-SDRAM 1.25 TB HDD+SSD Windows 10 Home Wi-Fi 5 (802.11ac) Silv

157 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8400T
Processor cores	6
Processor threads	6
Processor boost frequency	3.3 GHz
Processor frequency	1.7 GHz
Processor cache	9 MB
Processor cache type	Smart Cache
Processor socket	LGA 1151 (Socket H4)
System bus rate	8 GT/s
Thermal Design Power (TDP)	35 W
Configurable TDP-down frequency	1.2 GHz
Configurable TDP-down	25 W
Bus type	DMI3
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Processor code	SR3X6
Processor codename	Coffee Lake
Processor lithography	14 nm
Processor operating modes	64-bit
Stepping	U0
Tjunction	100 °C
Conflict-Free processor	Yes
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s

Specification	Value
Total storage capacity	1.25 TB
Storage media	HDD+SSD
Number of storage drives installed	2
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
HDD size	3.5"
HDD interface	SATA III
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	DVD±RW
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E92
On-board graphics card OpenGL version	4.5

Specification	Value

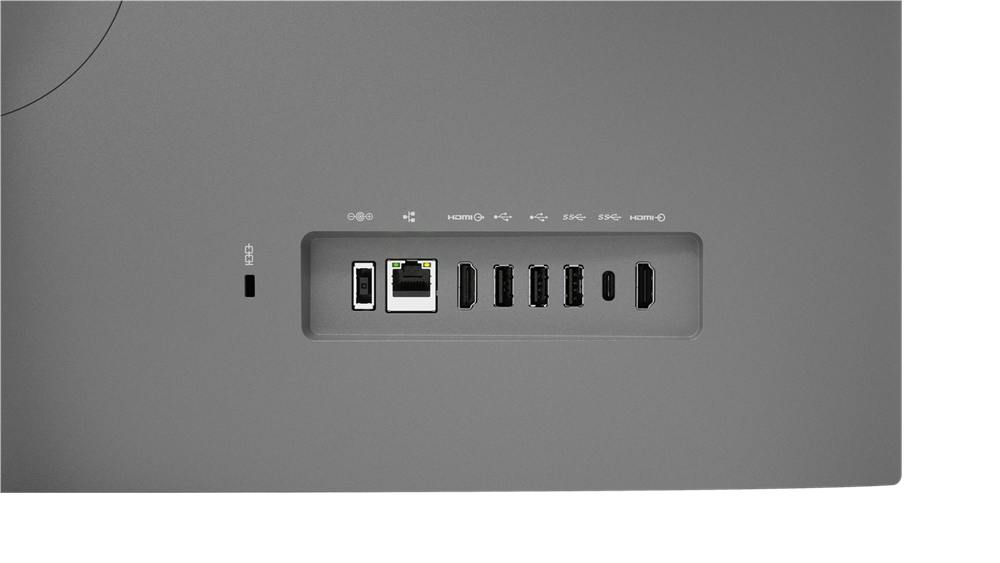

Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	1
Combo headphone/mic port	Yes
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® B360

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	129940
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A
