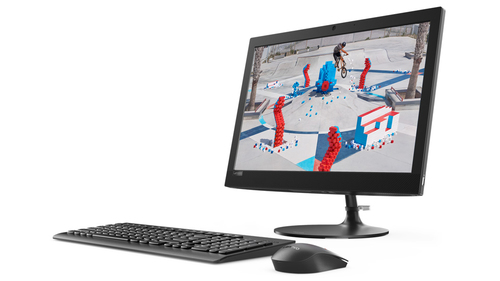

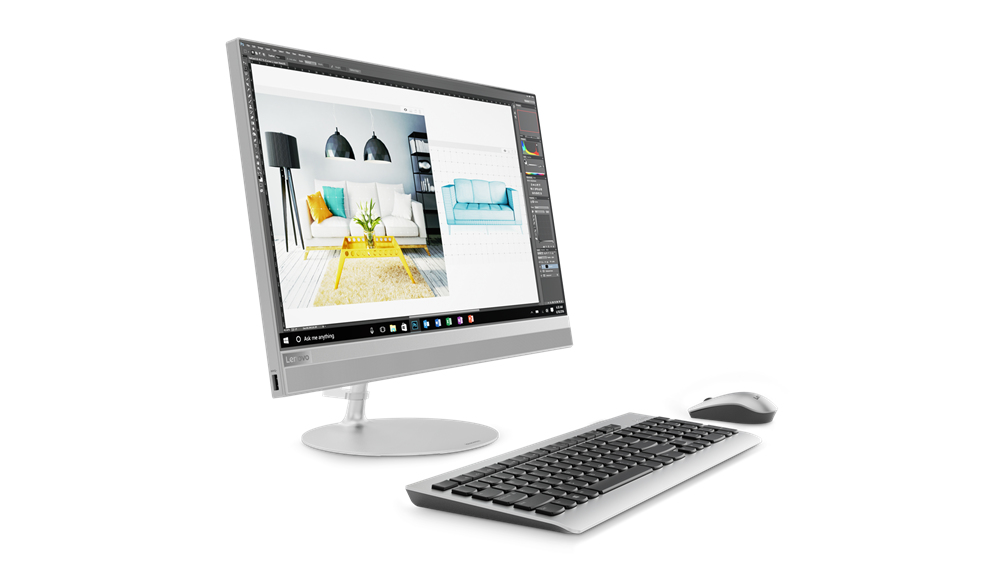

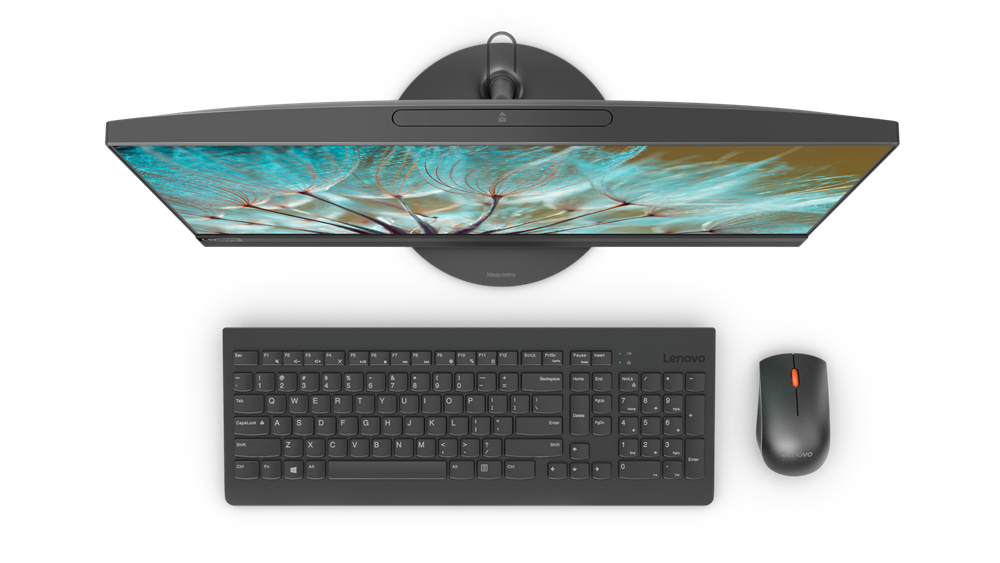

Lenovo IdeaCentre 520-22IKU Intel® Core™ i3 i3-6006U

54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR4-SDRAM 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac

Model 520-22IKUPart no. F0D5004SSP?CRFEAN 191999971188

110 specifications

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i3
Memory4 GB
Storage1 TB
SpeedWi-Fi 5 (802.11ac)

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 1 TB
Speed: Wi-Fi 5 (802.11ac)

Brand: Lenovo
Category: All-in-One PCs/Workstations
Model: 520-22IKU
Part numbers: F0D5004SSP?CRF, F0D500JXPB
EAN / UPC: 191999971188, 193268225091
Also known as: Lenovo IdeaCentre 520-22IKU Intel® Core™ i3 i3-6006U 54.6 cm (21.5") 1920 x 1080 pixels All-in-One PC 4 GB DDR4-SDRAM 1 TB HDD Windows 10 Home Wi-Fi 5 (802.11ac

Specifications

110 specifications in 18 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Panel type	WVA
Anti-glare screen	Yes
Tilt angle range	-5 - 25°

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	6th gen Intel® Core™ i3
Processor model	i3-6006U
Processor cores	2
Processor frequency	2 GHz
Processor cache	3 MB
Bus type	OPI
Conflict-Free processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	8 GB
Memory slots	1
Memory slots type	SO-DIMM
Memory clock speed	2400 MHz
Memory layout (slots x size)	1 x 4 GB
Memory form factor	DIMM/SO-DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of storage drives supported	2
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
HDD size	3.5"
HDD interface	SATA III
Optical drive type	DVD±RW
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® HD Graphics 520

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	3 W
Built-in microphone	Yes
Audio system	Dolby Audio

Camera

Specification	Value
Built-in camera	Yes
Camera HD type	HD

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Antenna type	1x1
Ethernet LAN	Yes
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	2
Combo headphone/mic port	Yes
DC-in jack	Yes

Design

Specification	Value
Product colour	Silver
Colour name	Warm silver
On/off button	Yes

Performance

Specification	Value
Product type	All-in-One PC
Market positioning	Business
Motherboard chipset	Intel SoC

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	Spanish

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Power

Specification	Value
AC adapter power	90 W
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	490 mm
Depth (with stand)	212 mm
Height (with stand)	387 mm
Weight (with stand)	12.5 kg
Width (without stand)	490 mm
Depth (without stand)	57 mm
Height (without stand)	317 mm

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	ENERY STAR 7.0 ErP Lot 3 RoHS-compliant

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, ErP

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Keyboard language	Spanish
Keyboard layout	QWERTY
Numeric keypad	Yes
