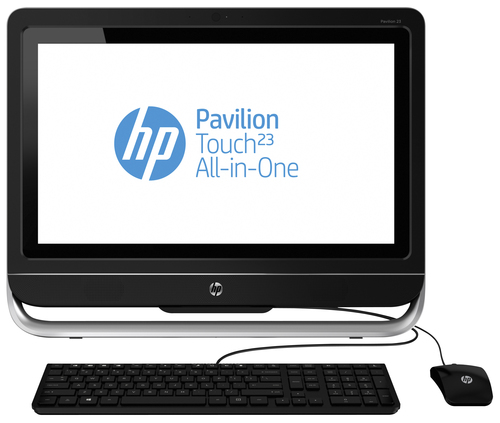

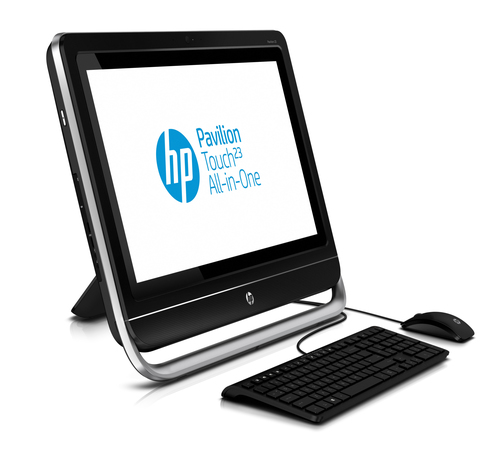

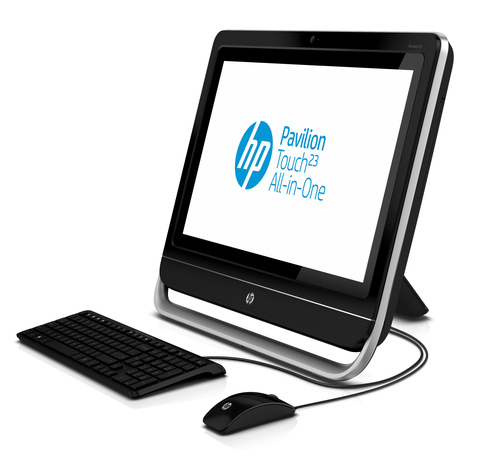

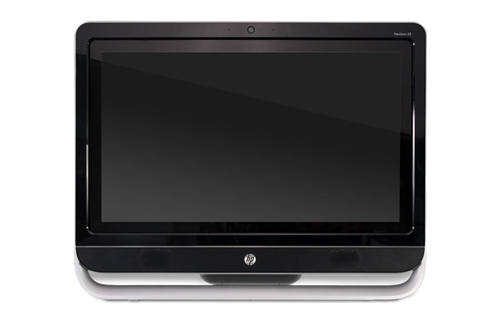

TouchSmart 23-f210ea

Model TouchSmart 23-f210eaPart no. E6Q69EAEAN 887758967041

160 specifications

Overview

Brand: HP
Category: All-in-One PCs/Workstations
Model: TouchSmart 23-f210ea
Part number: E6Q69EA
EAN / UPC: 887758967041
Also known as: HP Pavilion TouchSmart 23-f210ea Intel Pentium G G2030 58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 500 GB HDD NVIDIA® GeForce® GT

160 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G2030
Processor cores	2
Processor threads	2
Processor frequency	3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	55 W
Bus type	DMI
FSB Parity	No
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Processor code	SR163
Processor codename	Ivy Bridge
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G2000 Series for Desktop
Stepping	P0
Conflict-Free processor	Yes
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	Yes

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Total HDDs capacity	500 GB
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MS Duo, MS PRO Duo, SD, SDHC, SDXC

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® GT 710A
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR3
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Specification	Value
Built-in camera	Yes
Camera resolution	1280 x 720 pixels

Specification	Value
Optical drive interface	SATA
Disc types supported	CD, CD-R, CD-ROM, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RAM, DVD-ROM, DVD-RW
CD-R read speed	24x
CD-R write speed	24x
CD-RW read speed	24x
CD-RW write speed	24x
DVD-R read speed	8x
DVD-R write speed	8x
DVD-R Double Layer read speed	8x
DVD-R Double Layer write speed	6x
DVD-RW read speed	8x
DVD-RW write speed	6x
DVD+R read speed	8x
DVD+R write speed	8x
DVD+R Double Layer read speed	8x
DVD+R Double Layer write speed	6x
DVD+RW read speed	8x
DVD+RW write speed	8x
DVD-RAM read speed	5x
DVD-RAM write speed	5x

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes

Specification	Value
Product colour	Black
Country of origin	China

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel HM77 Express

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Secure Key	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	74749
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
