HP OmniStudio X All-in-One Desktop Next Gen AI 27-cx0077t PC

Model OmniStudio X All-in-One Desktop Next Gen AI 27-cx0077t PCPart no. CV8Y6AA#ABA

124 specifications

Display68.6 cm (27")
Resolution2560 x 1440 pixels
ProcessorIntel Core Ultra 7
Memory32 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 2560 x 1440 pixels
Processor: Intel Core Ultra 7
Memory: 32 GB
Storage: 1 TB
Graphics: Not available

Brand: HP
Category: All-in-One PCs/Workstations
Model: OmniStudio X All-in-One Desktop Next Gen AI 27-cx0077t PC
Part number: CV8Y6AA#ABA
Also known as: HP OmniStudio X All-in-One Desktop Next Gen AI 27-cx0077t PC Copilot+ PC Intel Core Ultra 7 356H 68.6 cm (27") 2560 x 1440 pixels All-in-One PC 32 GB DDR5-SDRAM

Specifications

124 specifications in 20 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	2560 x 1440 pixels
Touchscreen	No
HD type	Quad HD
Display brightness	450 cd/m²
Panel type	IPS
Anti-glare screen	Yes
Low Blue Light technology	Yes
RGB colour space	DCI-P3
Colour gamut	100%

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	356H
Processor cores	16
Processor threads	16
Processor boost frequency	4.7 GHz
Performance cores	4
Efficient cores	8
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.3 GHz
Performance-core base frequency	1.9 GHz
Efficient-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	1500 MHz
Processor cache	18 MB
Processor cache type	Smart Cache
Processor socket	FCBGA2540
Maximum turbo power	80 W
Processor base power	25 W

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	50 TOPs
GPU performance up to	40 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory slots	2
Memory slots type	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory data transfer rate	5600 MT/s
Memory form factor	DIMM/SO-DIMM
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Number of storage drives installed	1
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card	Yes
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	4
RMS rated power	12 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Total megapixels	5 MP
Infrared (IR) camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 7 (802.11be)
WLAN controller model	Intel Wi-Fi 7 BE211
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	2500,10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	6.0

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB4 Gen 3x2 ports quantity	0
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
HDMI ports quantity	1
HDMI version	2.1
DisplayPorts quantity	2
Combo headphone/mic port	Yes

Design

Specification	Value
Product colour	Grey
Colour name	Eclipse gray
Introduction year	2025

Performance

Specification	Value
Product type	All-in-One PC
Market positioning	Premium
Motherboard chipset	Intel SoC

Software

Specification	Value
Operating system installed	Windows 11 Home
Trial software	100 GB Dropbox storage for 3 months

Brand-specific features

Specification	Value
HP speaker type	HP Quad Speakers

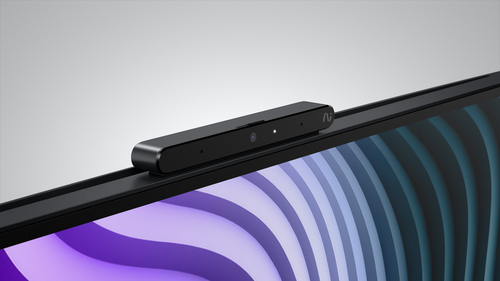

HP front camera	HP Webcam 5MP
HP segment	Home
HP Security tools	Camera privacy shutter; Microsoft Pluton
HP Software provided	HP Connection Optimizer; HP Support Assistant; OMEN Gaming Hub

Power

Specification	Value
AC adapter power	200 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	613.9 mm
Depth (with stand)	185 mm
Height (with stand)	519.6 mm
Weight (with stand)	6.38 kg
Package width	730 mm
Package depth	180 mm
Package height	520 mm
Package weight	12.2 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Gold

Packaging content

Specification	Value
Mouse connectivity	Wireless
Mouse included	Yes
Keyboard connectivity	Wireless
Keyboard included	Yes

Other features

Specification	Value
Display	LED
Display diagonal (metric)	68.6 cm
Display included	Yes

Technical details

Specification	Value
General Product Safety Regulation (GPSR) URL	https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; reg@hp.com
