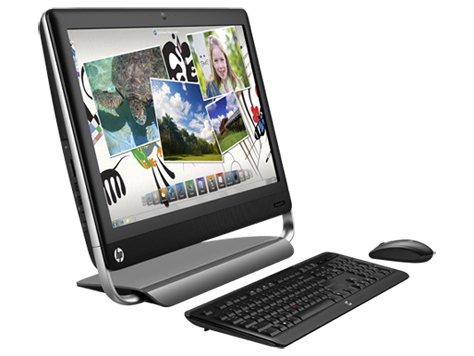

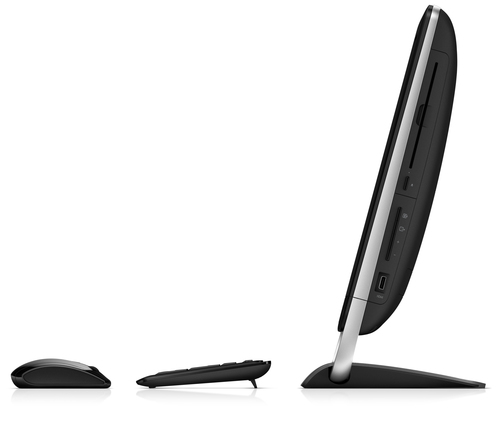

TouchSmart LN620EA All-in-One PC/workstation Intel® Core™ i5 i5-2390T

58.4 cm (23") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 1.5 TB HDD AMD Radeon HD 6

Model LN620EAEAN 886112309206

158 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage1.5 TB
GraphicsAMD Radeon HD 6450A

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 1.5 TB
Graphics: AMD Radeon HD 6450A

Brand: HP
Category: All-in-One PCs/Workstations
Model: LN620EA
Part number: LN620EA
EAN / UPC: 886112309206
Also known as: HP TouchSmart LN620EA All-in-One PC/workstation Intel® Core™ i5 i5-2390T 58.4 cm (23") 1920 x 1080 pixels Touchscreen 4 GB DDR3-SDRAM 1.5 TB HDD AMD Radeon HD 6

Specifications

158 specifications in 20 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:9
Display number of colours	16.78 million colours

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2390T
Processor cores	2
Processor threads	4
Processor boost frequency	3.5 GHz
Processor frequency	2.7 GHz
Processor cache	6 MB
Processor cache type	L3
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
Thermal Design Power (TDP)	35 W
Bus type	DMI
CPU multiplier (bus/core ratio)	27
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-2300 Desktop Series
Tcase	65 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 4 GB

Storage

Specification	Value
Total storage capacity	1.5 TB
Storage media	HDD
Total HDDs capacity	1.5 TB
Number of HDDs installed	1
HDD capacity	1.5 TB
HDD speed	5400 RPM
HDD interface	SATA II
Optical drive type	DVD Super Multi
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card model	AMD Radeon HD 6450A
Discrete graphics card memory	1 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102

Audio

Specification	Value
Number of speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Thunderbolt ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
DisplayPorts quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
Firewire (IEEE 1394) ports	0
PS/2 ports quantity	0
Serial ports quantity	0
eSATA ports quantity	0
S/PDIF out port	No

Design

Specification	Value
Product colour	Black
Country of origin	China

Performance

Specification	Value
Motherboard chipset	Intel® H61

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Trial software	Norton Online Backup, Symantec Norton Internet Security 2012
Bundled software	Microsoft Office Starter, HP TouchSmart 5.0, eats Audio console; HP LinkUp; HP Setup manager; HP Music; HP Games Console; Cyberlink Power2Go; EasyBits Magic Desktop; Microsoft Internet Explorer; Adobe Reader; Adobe Flash Player; Windows Live Essentials

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53448
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V

Weight & dimensions

Specification	Value
Width (with stand)	580 mm
Depth (with stand)	217 mm
Height (with stand)	457 mm
Weight (with stand)	11.7 kg
Package weight	16.9 kg

Certificates

Specification	Value
Certification	EPEAT

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Keyboard layout	QWERTY
Numeric keypad	Yes
Remote control included	Yes

Other features

Specification	Value
Graphics card family	AMD
Package dimensions (WxDxH)	674 x 269 x 555 mm
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Dimensions (WxDxH)	580 x 217 x 457 mm
Display	LCD WLED
Display included	Yes
Floppy drive installed	No
Modem (RJ-11) ports	0
Number of processors installed	1
Parallel ports quantity	0
Power supply	180 W
Power supply type	AC
SmartCard slot	No
Speakers	Yes
TV tuner integrated	Yes
TV tuner type	DVB-T
Video in	1
Wireless technology	WLAN
