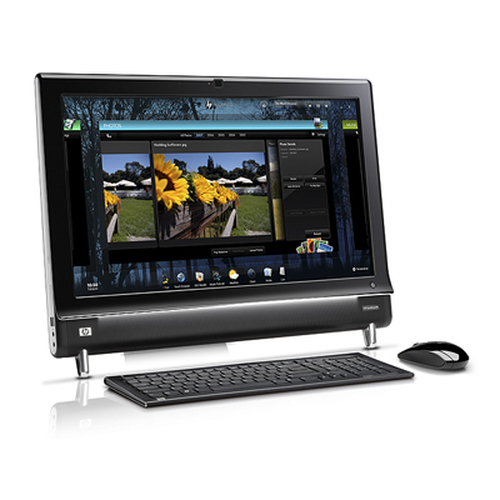

HP TouchSmart IQ535uk Intel® Core™2 Duo P7450

55.9 cm (22") 1680 x 1050 pixels Touchscreen 4 GB DDR2-SDRAM 1 TB HDD NVIDIA® GeForce® 9600M GS Windows Vista Home

Model IQ535ukPart no. NM926AAEAN 884420871668

116 specifications

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage1 TB
GraphicsNVIDIA® GeForce® 9600M GS

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® 9600M GS

Brand: HP
Category: All-in-One PCs/Workstations
Model: IQ535uk
Part number: NM926AA
EAN / UPC: 884420871668
Also known as: HP TouchSmart IQ535uk Intel® Core™2 Duo P7450 55.9 cm (22") 1680 x 1050 pixels Touchscreen 4 GB DDR2-SDRAM 1 TB HDD NVIDIA® GeForce® 9600M GS Windows Vista Home

Specifications

116 specifications in 18 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Touchscreen	Yes
HD type	Not supported
Full HD	No
LED backlight	Yes
Native aspect ratio	16:10
Display brightness	300 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	P7450
Processor cores	2
Processor threads	2
Processor frequency	2.13 GHz
Processor cache	3 MB
Processor cache type	L2
Processor socket	Socket 478
Thermal Design Power (TDP)	25 W
Bus type	FSB
CPU multiplier (bus/core ratio)	7.5
FSB Parity	No
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
Processor codename	Penryn
Processor front side bus	1066 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo P7000 Series
Stepping	M0
Tjunction	90 °C
Conflict-Free processor	No
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory slots type	DIMM

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	5400 RPM
HDD interface	SATA
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD

Graphics

Specification	Value
Discrete graphics card model	NVIDIA® GeForce® 9600M GS
Discrete graphics card memory	0.512 GB
On-board graphics card model	Not available

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	8 W
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes
Camera resolution	640 x 480 pixels

Optical drive

Specification	Value
Optical drive interface	SATA

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
VGA (D-Sub) ports quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Firewire (IEEE 1394) ports	1
RF ports quantity	1
S/PDIF out port	Yes

Design

Specification	Value
Product colour	Black
Cable lock slot	Yes
Country of origin	China

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	36734
Thermal Monitoring Technologies	No

Power

Specification	Value
AC adapter power	150 W

Weight & dimensions

Specification	Value
Width (with stand)	535 mm
Depth (with stand)	190 mm
Height (with stand)	433 mm
Weight (with stand)	11.3 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Remote control included	Yes

Other features

Specification	Value
Storage drive interface	Serial ATA
TV tuner integrated	Yes
