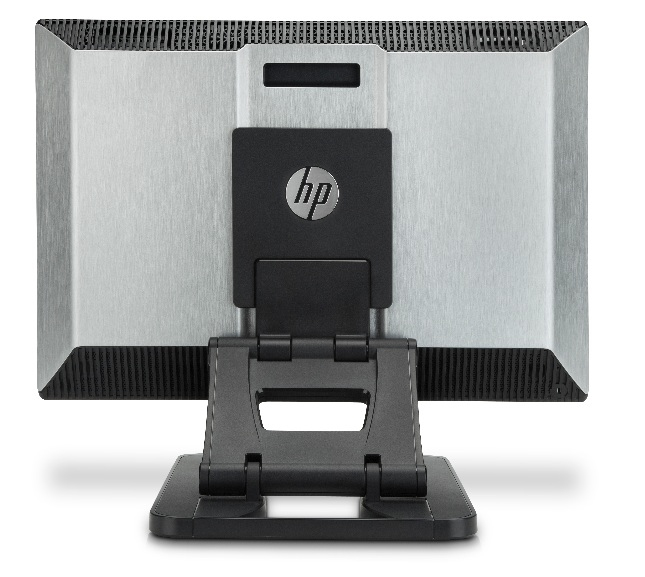

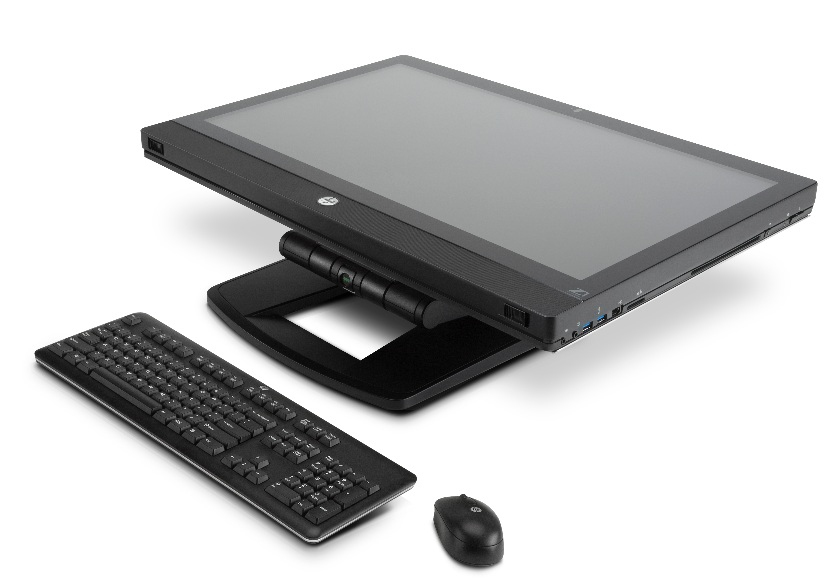

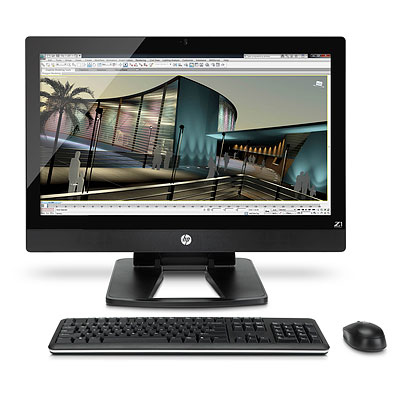

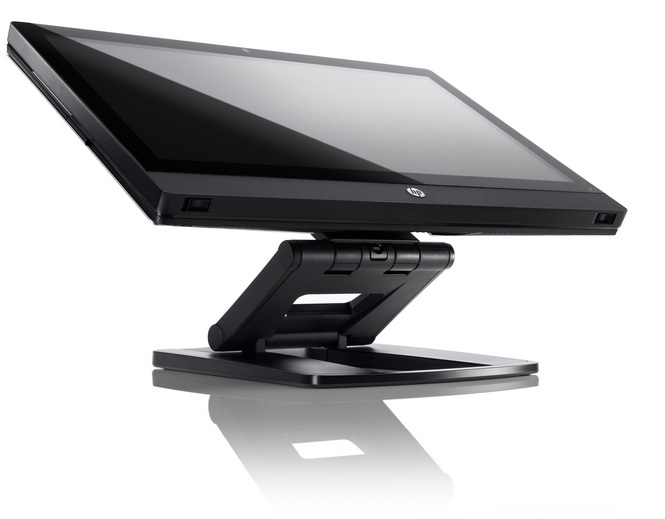

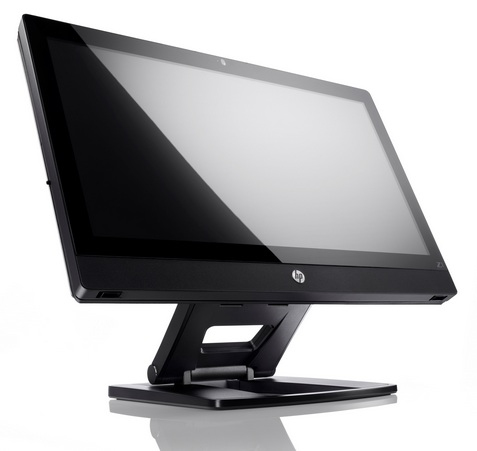

Z1 B8N35PA All-in-One PC/workstation Intel® Xeon® E3 V2 Family E3-1245V2
68.6 cm (27") 2560 x 1440 pixels All-in-One workstation 8 GB DDR3-SDRAM 2 TB HDD NVI
Model B8N35PAEAN 887758686126
142 specifications
- Display68.6 cm (27")
- Resolution2560 x 1440 pixels
- ProcessorIntel® Xeon® E3 V2 Family
- Memory8 GB
- Storage2 TB
- GraphicsNVIDIA® Quadro® 500M
Overview
- Display
- 68.6 cm (27")
- Resolution
- 2560 x 1440 pixels
- Processor
- Intel® Xeon® E3 V2 Family
- Memory
- 8 GB
- Storage
- 2 TB
- Graphics
- NVIDIA® Quadro® 500M
- Brand
- HP
- Category
- All-in-One PCs/Workstations
- Model
- B8N35PA
- Part number
- B8N35PA
- EAN / UPC
- 887758686126
- Also known as
- HP Z1 B8N35PA All-in-One PC/workstation Intel® Xeon® E3 V2 Family E3-1245V2 68.6 cm (27") 2560 x 1440 pixels All-in-One workstation 8 GB DDR3-SDRAM 2 TB HDD NVI
Specifications
142 specifications in 19 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 68.6 cm (27") |
| Display resolution | 2560 x 1440 pixels |
| Touchscreen | No |
| HD type | Quad HD |
| Full HD | Yes |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 V2 Family |
| Processor model | E3-1245V2 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1155 (Socket H2) |
| System bus rate | 5 GT/s |
| Thermal Design Power (TDP) | 77 W |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 34 |
| FSB Parity | No |
| PCI Express configurations | 1x16+1x4, 1x8+3x4, 2x8+1x4 |
| PCI Express slots version | 3.0 |
| Processor code | SR0P9 |
| Processor codename | Ivy Bridge |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E3-1200 v2 |
| Stepping | E1 |
| Conflict-Free processor | No |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory channels supported by processor | Dual |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Maximum internal memory | 32 GB |
| Memory slots | 4 |
| Memory slots type | DIMM |
| Memory clock speed | 1600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD speed | 7200 RPM |
| HDD interface | SATA |
| Optical drive type | DVD Super Multi |
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MMC, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® Quadro® 500M |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics P4000 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1250 MHz |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Built-in microphone | Yes |
| Audio system | SRS Premium Sound |
Camera
| Specification | Value |
|---|---|
| Built-in camera | Yes |
| Total megapixels | 2 MP |
Optical drive
| Specification | Value |
|---|---|
| Optical drive interface | SATA |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Wi-Fi standards | Not supported |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Thunderbolt ports quantity | 0 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Firewire (IEEE 1394) ports | 1 |
| S/PDIF out port | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Country of origin | China |
Performance
| Specification | Value |
|---|---|
| Product type | All-in-One workstation |
| Motherboard chipset | Intel® C206 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Smart Connect Technology | No |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Rapid Start Technology | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 65729 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter power | 400 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 660.4 mm |
| Depth (with stand) | 419.1 mm |
| Height (with stand) | 584.2 mm |
| Weight (with stand) | 21.3 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
Other features
| Specification | Value |
|---|---|
| Autonomy mode | Yes |
| Storage drive interface | Serial ATA |
