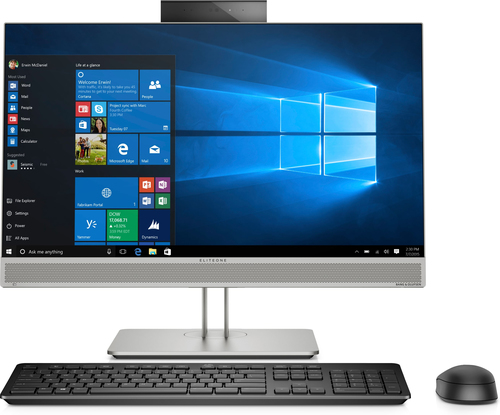

HP 800 G5
HP

800 G5

Model 800 G5Part no. 7AC09EAEAN 193905830558

139 specifications
  • Display60.5 cm (23.8")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i7
  • Memory8 GB
  • Storage256 GB
  • GraphicsNot available
See all specifications

Overview

Display
60.5 cm (23.8")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i7
Memory
8 GB
Storage
256 GB
Graphics
Not available
Brand
HP
Model
800 G5
Part numbers
7AC09EA, 7XK97AW, 7XK72AW, 7AC06EA, 7AC10EA, 7AC12EA +33 more
EAN / UPC
193905830558, 193905771257, 194441092370, 194441123005 +56 more
Also known as
HP EliteOne 800 G5 Intel® Core™ i7 i7-7700 60.5 cm (23.8") 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 5 (802.11ac) Silver

Specifications

139 specifications in 19 groups

Display

Display diagonal60.5 cm (23.8")
Display resolution1920 x 1080 pixels
TouchscreenNo
HD typeFull HD
LED backlightYes
Native aspect ratio16:9
Panel typeIPS
Screen shapeFlat

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation7th gen Intel® Core™ i7
Processor modeli7-7700
Processor cores4
Processor threads8
Processor boost frequency4.2 GHz
Processor frequency3.6 GHz
Processor cache8 MB
Processor cache typeSmart Cache
Processor socketLGA 1151 (Socket H4)
System bus rate8 GT/s
Thermal Design Power (TDP)65 W
Bus typeDMI3
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 1x8+2x4, 2x8
PCI Express slots version3.0
Processor codeSR338
Processor codenameKaby Lake
Processor lithography14 nm
Processor operating modes64-bit
SteppingB0
Tjunction100 °C
Conflict-Free processorYes
Maximum internal memory supported by processor64 GB
Memory types supported by processorDDR3L, DDR4-SDRAM
Memory clock speeds supported by processor1333,1600,2133,2400 MHz
Memory voltage supported by processor1.35 V

Memory

Internal memory8 GB
Internal memory typeDDR4-SDRAM
Memory clock speed2400 MHz
Memory layout (slots x size)1 x 8 GB

Storage

Total storage capacity256 GB
Storage mediaSSD
Total SSDs capacity256 GB
Number of SSDs installed1
SSD capacity256 GB
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD

Graphics

Discrete graphics cardNo
Discrete graphics card modelNot available
On-board graphics cardYes
On-board graphics card modelIntel® HD Graphics 630
Maximum on-board graphics card memory64 GB
Number of displays supported (on-board graphics)3
On-board graphics card base frequency350 MHz
On-board graphics card dynamic frequency (max)1150 MHz
On-board graphics card DirectX version12.0
On-board graphics card ID0x5912
On-board graphics card OpenGL version4.4

Audio

Built-in speaker(s)Yes
Speakers manufacturerBang & Olufsen
Built-in microphoneYes

Camera

Built-in cameraYes
Total megapixels2 MP
Camera HD typeFull HD
Camera resolution1920 x 1080 pixels

Network

Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Antenna type2x2
Ethernet LANYes
BluetoothYes
Bluetooth version5.0

Ports & interfaces

Ethernet LAN (RJ-45) ports1
USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Thunderbolt 3 ports quantity0
Thunderbolt ports quantity0
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
Microphone inYes

Design

Product colourSilver
Country of originChina

Performance

Product typeAll-in-One PC

Software

Operating system installedWindows 10 Pro
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Enhanced Halt StateYes
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Stable Image Platform Program (SIPP)Yes
Intel Stable Image Platform Program (SIPP) version1.00
Intel TSX-NIYes
Intel TSX-NI version1.00
Intel Trusted Execution TechnologyYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® OS GuardYes
Intel® Quick Sync Video TechnologyYes
Intel® Secure KeyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID97128
Processor package size37.5 x 37.5 mm
Scalability1S
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring TechnologiesYes
Thermal solution specificationPCG 2015C

Power

AC adapter power180 W

Pen

Pen includedNo

Weight & dimensions

Width (with stand)539.6 mm
Depth (with stand)538 mm
Height (with stand)341.8 mm
Weight (with stand)6.03 kg

Operational conditions

Operating temperature (T-T)10 - 35 °C
Operating relative humidity (H-H)10 - 90%

Packaging content

Mouse includedYes
Keyboard includedYes
Power cord includedYes

Other features

3DNo
Autonomy modeNo
Detachable displayNo
