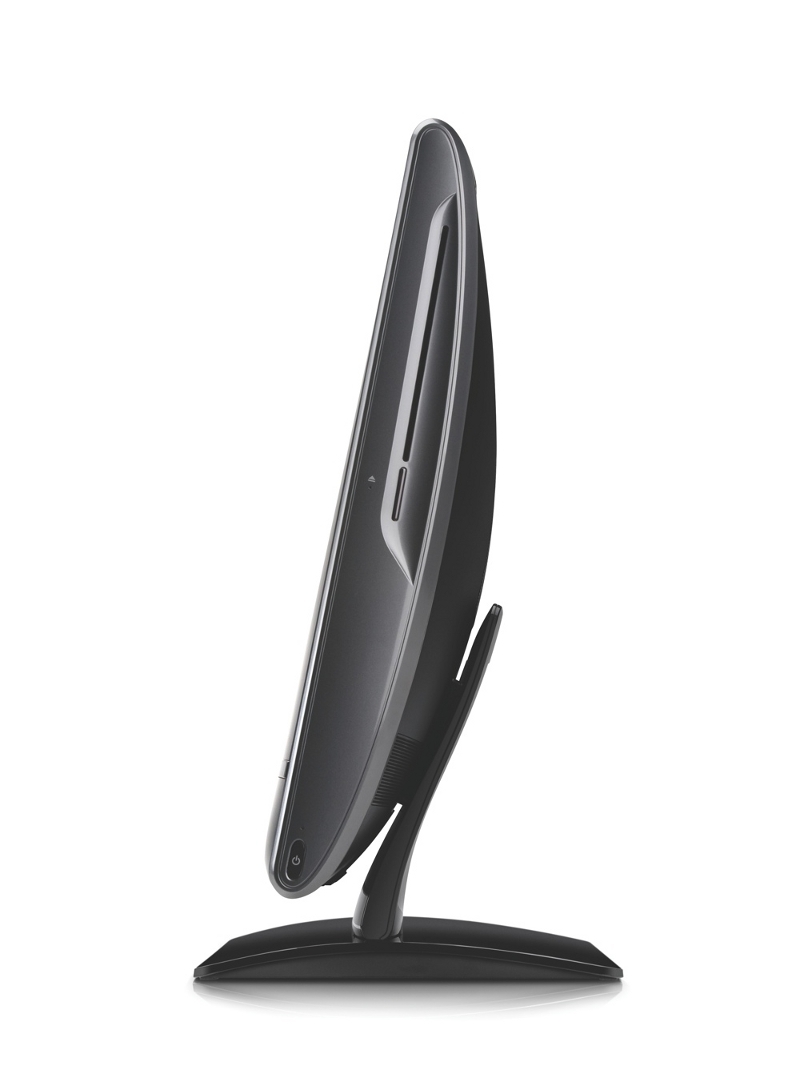

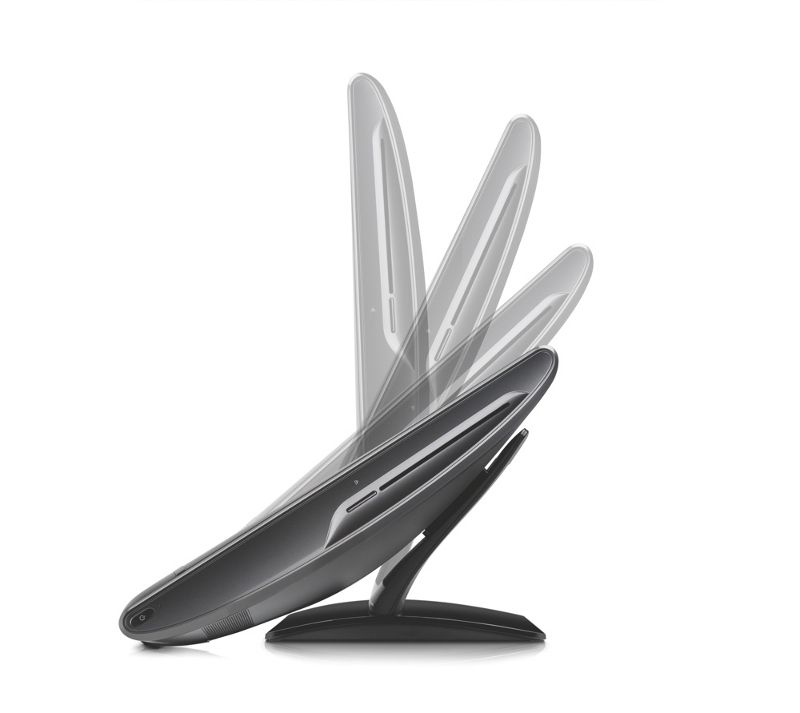

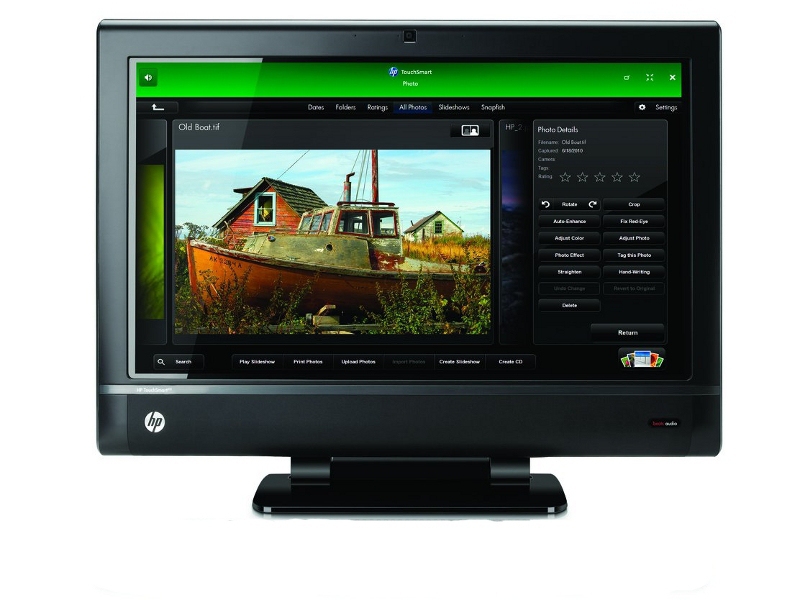

HP TouchSmart 610-1130uk Intel® Core™ i5 i5-650

58.4 cm (23") 1920 x 1080 pixels Touchscreen 6 GB DDR3-SDRAM 1.5 TB HDD AMD Radeon HD 5570 Windows 7 Home Premiu

Model 610-1130ukPart no. LN489EAEAN 886111734580

141 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory6 GB
Storage1.5 TB
GraphicsAMD Radeon HD 5570

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 6 GB
Storage: 1.5 TB
Graphics: AMD Radeon HD 5570

Brand: HP
Category: All-in-One PCs/Workstations
Model: 610-1130uk
Part number: LN489EA
EAN / UPC: 886111734580
Also known as: HP TouchSmart 610-1130uk Intel® Core™ i5 i5-650 58.4 cm (23") 1920 x 1080 pixels Touchscreen 6 GB DDR3-SDRAM 1.5 TB HDD AMD Radeon HD 5570 Windows 7 Home Premiu

Specifications

141 specifications in 17 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	Intel® Core™ i5
Processor model	i5-650
Processor cores	2
Processor threads	4
Processor boost frequency	3.46 GHz
Processor frequency	3.2 GHz
Processor cache	4 MB
Processor cache type	L3
L2 cache	512 MB
L3 cache	4 MB
Processor socket	LGA 1156 (Socket H)
System bus rate	2.5 GT/s
Thermal Design Power (TDP)	73 W
Bus type	DMI
CPU multiplier (bus/core ratio)	24
FSB Parity	No
Maximum number of PCI Express lanes	16
Number of Processing Die Transistors	382 M
PCI Express configurations	1x16, 2x8
PCI Express slots version	2.0
Processing Die size	81 mm²
Processor codename	Clarkdale
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-600 Desktop Series
Stepping	C2
Tcase	72.6 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3 1066/1333
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	6 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB
Memory layout (slots x size)	1 x 2 + 1 x 4 GB

Storage

Specification	Value
Total storage capacity	1.5 TB
Storage media	HDD
Total HDDs capacity	1.5 TB
HDD speed	5400 RPM
HDD interface	SATA II
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card model	AMD Radeon HD 5570
Discrete graphics card memory	1 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	733 MHz

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Built-in camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DVI port	No
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
Firewire (IEEE 1394) ports	0
PS/2 ports quantity	0
Serial ports quantity	0

Design

Specification	Value
Product colour	Black
Country of origin	China

Performance

Specification	Value
Motherboard chipset	Intel A57 Express

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	43546
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No

Weight & dimensions

Specification	Value
Width (with stand)	585 mm
Depth (with stand)	103 mm
Height (with stand)	451 mm
Weight (with stand)	12.1 kg
Package weight	17.1 kg

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Remote control included	Yes

Other features

Specification	Value
Graphics card family	AMD
Package dimensions (WxDxH)	672 x 312 x 535 mm
Cabling technology	10/100/1000Base-T(X)
Chassis type	All-in-One
Display	LCD
Display included	Yes
Line-in	Yes
Line-out	Yes
Networking features	Gigabit Ethernet
Number of processors installed	1
Parallel ports quantity	0
Power supply	180 W
TV tuner integrated	Yes
TV tuner type	DVB-T
