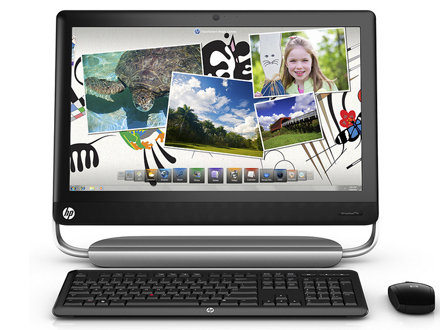

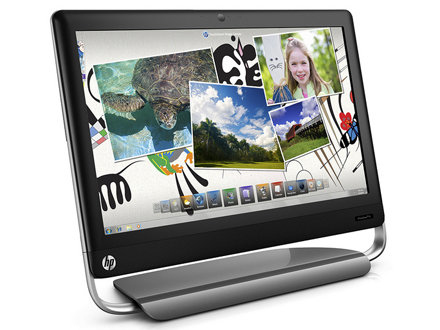

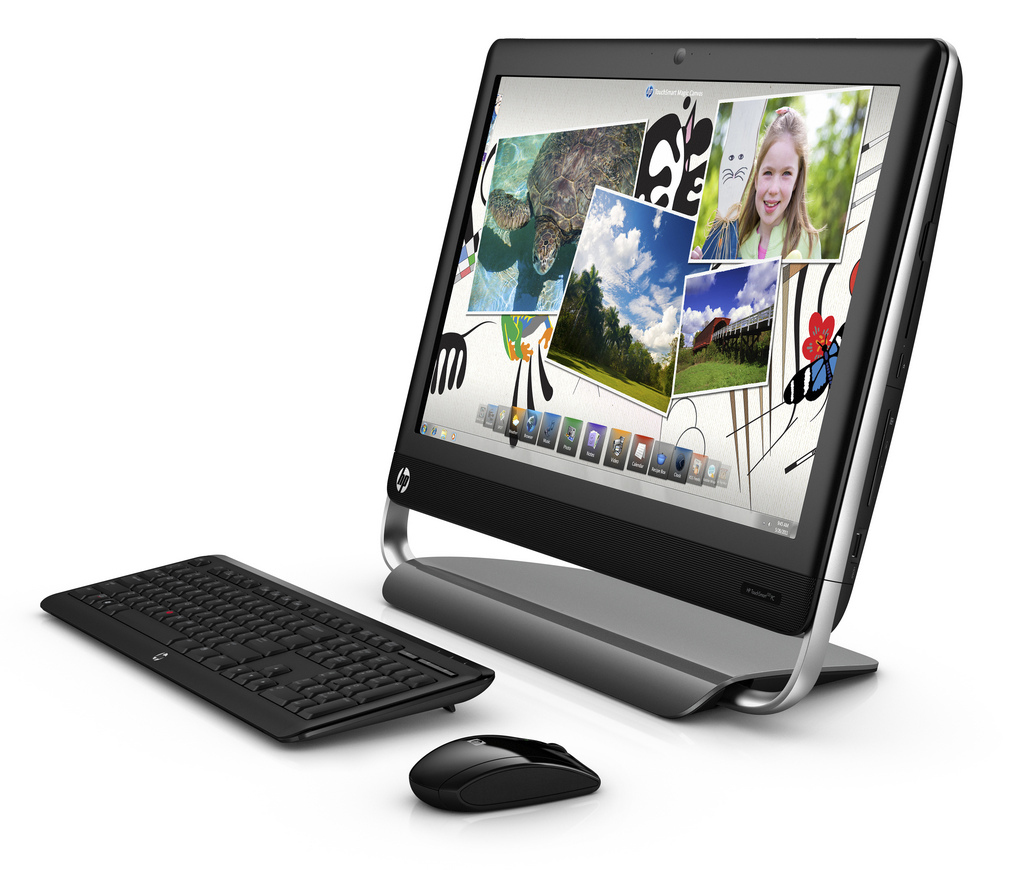

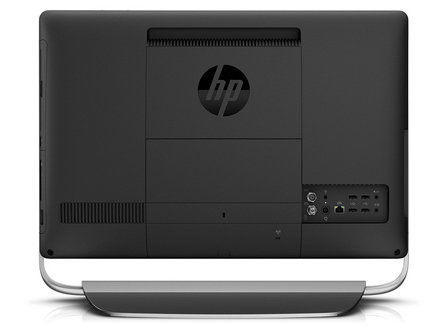

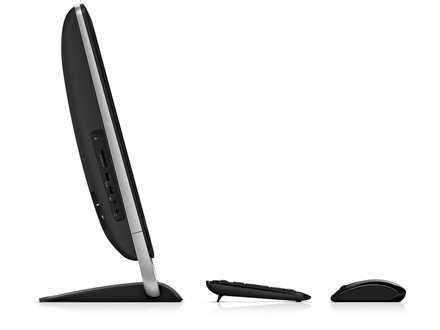

HP TouchSmart 520-1201ed Intel® Core™ i5 i5-2390T

58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 6650A Window

Model 520-1201edPart no. B7H01EA#ABH

184 specifications

Display58.4 cm (23")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage1 TB
GraphicsAMD Radeon HD 6650A

See all specifications

Overview

Display: 58.4 cm (23")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 1 TB
Graphics: AMD Radeon HD 6650A

Brand: HP
Category: All-in-One PCs/Workstations
Model: 520-1201ed
Part number: B7H01EA#ABH
Also known as: HP TouchSmart 520-1201ed Intel® Core™ i5 i5-2390T 58.4 cm (23") 1920 x 1080 pixels Touchscreen All-in-One PC 4 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 6650A Window

Specifications

184 specifications in 21 groups

Display

Specification	Value
Display diagonal	58.4 cm (23")
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Full HD	Yes
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Response time	5 ms
Multi-touch	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2390T
Processor cores	2
Processor threads	4
Processor boost frequency	3.5 GHz
Processor frequency	2.7 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	LGA 1155 (Socket H2)
System bus rate	5 GT/s
64-bit computing	Yes
Thermal Design Power (TDP)	35 W
Bus type	DMI
CPU multiplier (bus/core ratio)	27
FSB Parity	No
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-2300 Desktop Series
Tcase	65 °C
Conflict-Free processor	No
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Memory channels supported by processor	Dual
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory slots	2
Memory slots type	SO-DIMM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD speed	7200 RPM
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), SD

Graphics

Specification	Value
Discrete graphics card model	AMD Radeon HD 6650A
Discrete graphics card memory	2 GB
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102

Audio

Specification	Value
Built-in speaker(s)	Yes
RMS rated power	8 W
Built-in microphone	Yes
Audio system	HD

Camera

Specification	Value
Built-in camera	Yes
Camera resolution	1280 x 720 pixels

Optical drive

Specification	Value
Optical drive interface	SATA
Disc types supported	CD, DVD
LightScribe	No
CD-R read speed	24x
CD-R write speed	24x
CD-RW read speed	24x
CD-RW write speed	10x
DVD-R read speed	8x
DVD-R write speed	8x
DVD-R Double Layer read speed	8x
DVD-R Double Layer write speed	6x
DVD-RW read speed	8x
DVD-RW write speed	8x
DVD+R read speed	8x
DVD+R write speed	8x
DVD+R Double Layer read speed	8x
DVD+R Double Layer write speed	6x
DVD+RW read speed	8x
DVD+RW write speed	6x
DVD-RAM read speed	5x
DVD-RAM write speed	5x

Network

Specification	Value
Wi-Fi	No
Wi-Fi standards	Not supported
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
Headphone outputs	1
Microphone in	Yes
DC-in jack	Yes
ExpressCard slot	No
PS/2 ports quantity	0
Serial ports quantity	0
eSATA ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0

Design

Specification	Value
Product colour	Black
Country of origin	China

Performance

Specification	Value
Product type	All-in-One PC
Motherboard chipset	Intel® H61
Placement supported	Vertical

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53448
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Power

Specification	Value
AC adapter power	180 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V

Weight & dimensions

Specification	Value
Width (with stand)	580 mm
Depth (with stand)	217 mm
Height (with stand)	457 mm
Weight (with stand)	11.7 kg

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%

Certificates

Specification	Value
Compliance certificates	RoHS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Warranty card	Yes
AC adapter included	Yes
Cables included	AC
Quick start guide	Yes

Other features

Specification	Value
3D	No
AC adapter output current	9.5 A
Power auto-sensing	No
Autonomy mode	No
Storage drive interface	Serial ATA
WWAN	Not installed
